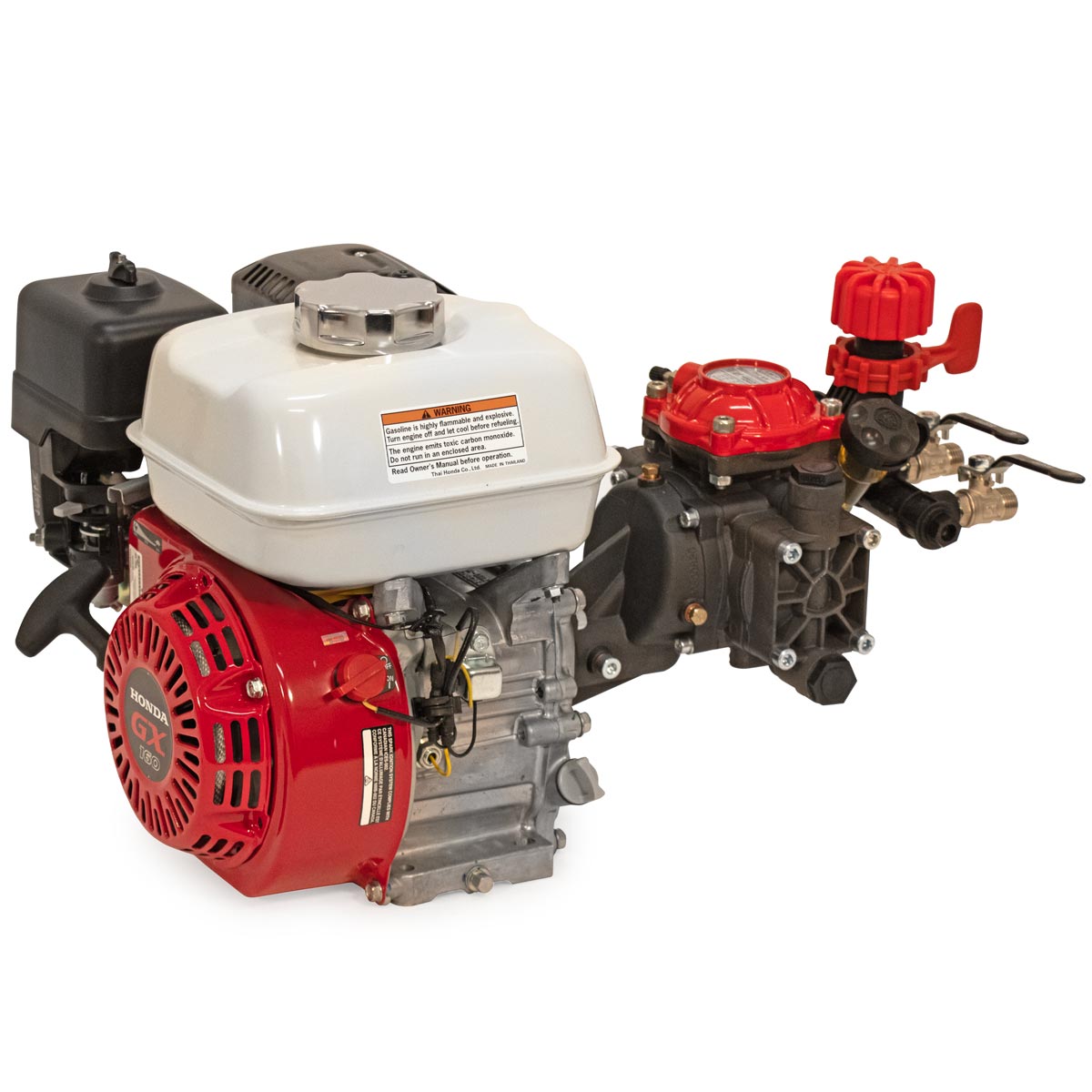

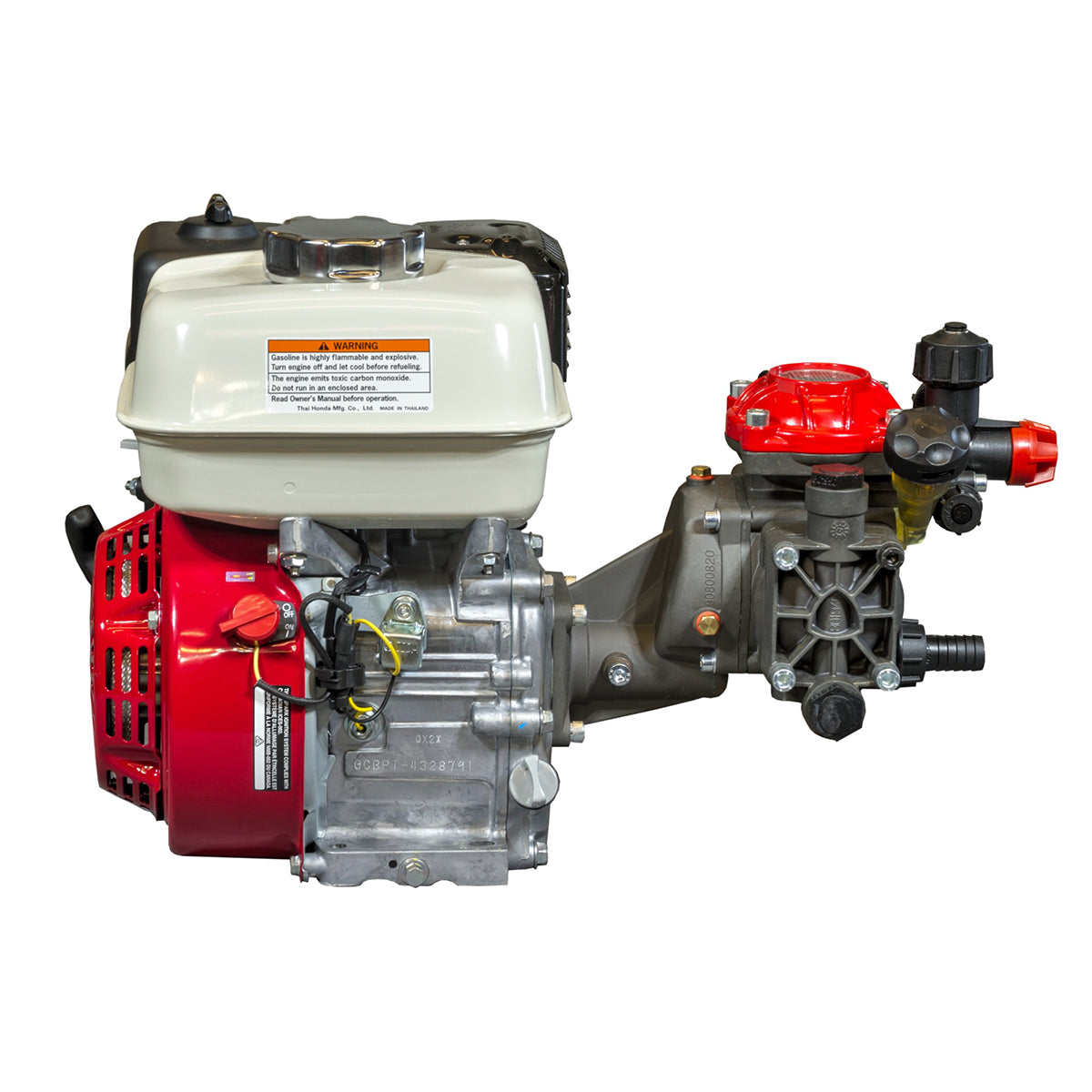

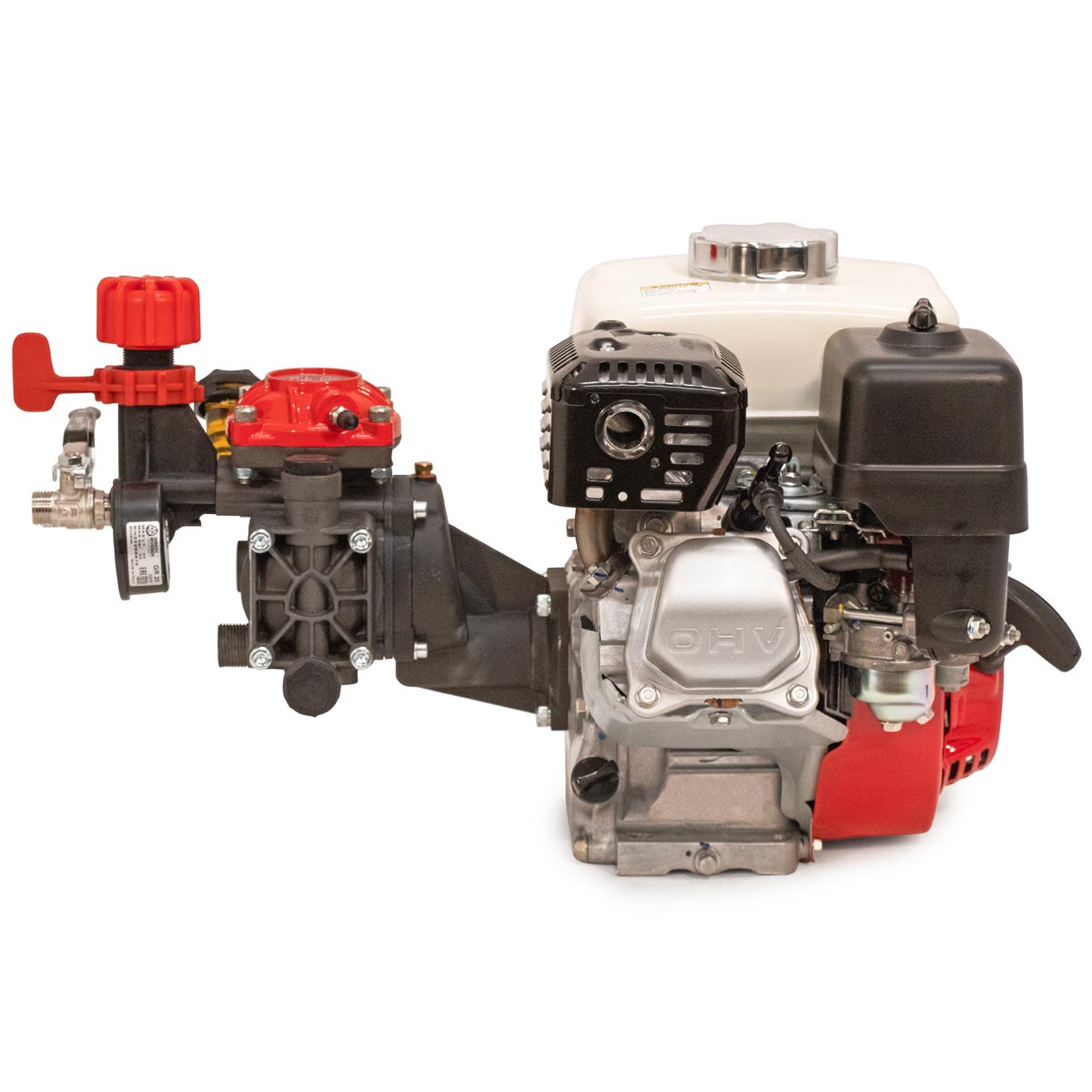

Hypro D252GRGI & Honda GX160 Engine

Hypro D252GRGI & Honda GX160 Engine

12 reviews
Item Code:
GXD252
Weight:
60.0 lb
Manufacturer:
Hypro
Our price:
$949.00
List price:
$949.00
Overview:
For your agricultural spraying needs, install this Hypro D252GRGI & Honda GX160 Engine. Designed to deliver medium pressures up to 290 PSI, it features a Honda OHV commercial-grade engine that's both powerful and durable and is available with either a recoil or an electric starter. This product is highly recommended for delivering pesticide, herbicide, liquid fertilizer or other liquids that require special care.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon. If you order one of these products you may receive the original factory version manufactured by AR in Italy. Specs and performance are the same.

Manufacturer Description:

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.

Features:

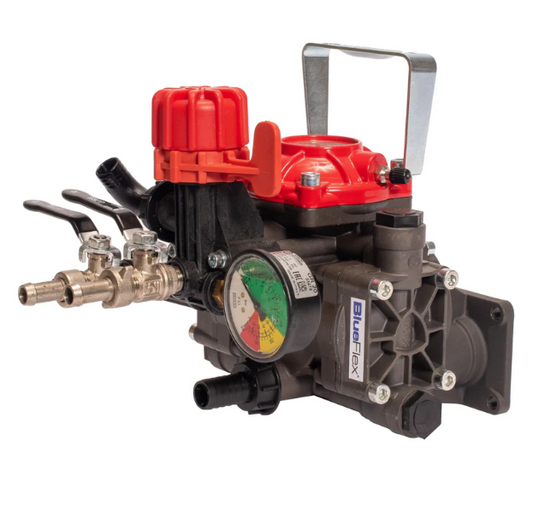

9910-D252GRGI:
  • Max flow: 6 gpm
  • Max pressure: 290 psi
  • Includes 9910-KIT1990 pressure regulator and gearbox with 3/4" hollow shaft for mounting to 2.5 to 5.5 hp gas engines
  • Port sizes: 3/4" HB inlet, 3/8" HB outlet, 5/8" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F

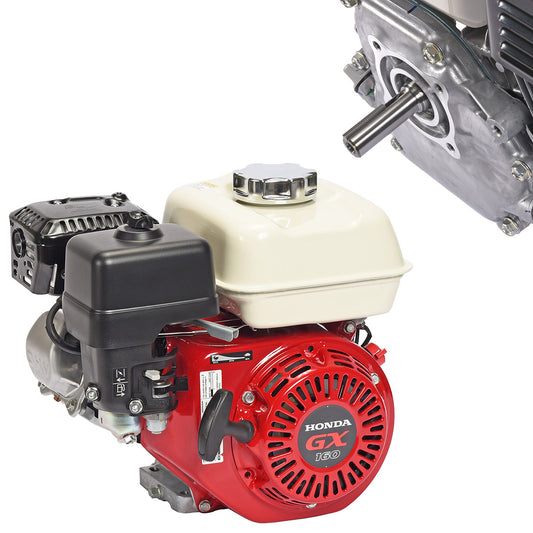

  • Weight: 14 lbs Honda GX160 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 4
  • Part No: 9910620301
  • Qty Req: 2
Our price: $4.02 List price: $4.96
  • Ref No: 5
  • Part No: 9910800380
  • Qty Req: 2
Our price: $11.27 List price: $13.91
  • Ref No: 6
  • Part No: 9910800020
  • Qty Req: 1
Our price: $78.76 List price: $97.23
  • Ref No: 7
  • Part No: 9910800172
  • Qty Req: 1
Our price: $207.59 List price: $256.28
  • Ref No: 8
  • Part No: 9910800160
  • Qty Req: 1
Our price: $3.02 List price: $3.73
  • Ref No: 12
  • Part No: 9910390440
  • Qty Req: 4
Our price: $1.51 List price: $1.86
  • Ref No: 15
  • Part No: 9910800200
  • Qty Req: 1
Our price: $21.80 List price: $26.91
  • Ref No: 16
  • Part No: 9910800180
  • Qty Req: 1
Our price: $28.55 List price: $35.25
  • Ref No: 17
  • Part No: 9910550330
  • Qty Req: 4
Our price: $2.60 List price: $3.21
  • Ref No: 18
  • Part No: 9910802070
  • Qty Req: 2
Our price: $43.76 List price: $54.02
  • Ref No: 19
  • Part No: 9910800140
  • Qty Req: 2
Our price: $31.54 List price: $38.94
  • Ref No: 20
  • Part No: 9910800130
  • Qty Req: 2
Our price: $16.20 List price: $20.00
  • Ref No: 21
  • Part No: 9910480370
  • Qty Req: 1
Our price: $29.57 List price: $36.50
  • Ref No: 22
  • Part No: 9910480440
  • Qty Req: 5
Our price: $1.76 List price: $2.17
  • Ref No: 23
  • Part No: 9910680360
  • Qty Req: 1
Our price: $3.65 List price: $4.50
  • Ref No: 24
  • Part No: 9910800220
  • Qty Req: 7
Our price: $3.35 List price: $4.14
  • Ref No: 26
  • Part No: 9910800110
  • Qty Req: 2
Our price: $54.88 List price: $67.75
  • Ref No: 27
  • Part No: 9910800090
  • Qty Req: 2
Our price: $7.76 List price: $9.58
  • Ref No: 28
  • Part No: 9910800350
  • Qty Req: 2
Our price: $8.34 List price: $10.30
  • Ref No: 30
  • Part No: 9910802080
  • Qty Req: 2
Our price: $10.34 List price: $12.76
  • Ref No: 31
  • Part No: 9910800080
  • Qty Req: 2
Our price: $20.42 List price: $25.21
  • Ref No: 32
  • Part No: 9910802050
  • Qty Req: 2
Our price: $38.05 List price: $46.98
  • Ref No: 33
  • Part No: 9910740290
  • Qty Req: 1
Our price: $1.92 List price: $2.37
  • Ref No: 34
  • Part No: 9910801960
  • Qty Req: 1
Our price: $17.14 List price: $21.16
  • Ref No: 35
  • Part No: 9910800520
  • Qty Req: 2
Our price: $7.55 List price: $9.32
  • Ref No: 36
  • Part No: 9910390180
  • Qty Req: 1
Our price: $1.51 List price: $1.86
  • Ref No: 37
  • Part No: 9910550450
  • Qty Req: 1
Our price: $3.94 List price: $4.86
  • Ref No: 39
  • Part No: 9910800540
  • Qty Req: 1
Our price: $2.39 List price: $2.95
  • Ref No: 40
  • Part No: 9910800400
  • Qty Req: 1
Our price: $70.62 List price: $87.18
  • Ref No: 41
  • Part No: 9910550331
  • Qty Req: 6
Our price: $1.51 List price: $1.86
  • Ref No: 42
  • Part No: 9910801080
  • Qty Req: 2
Our price: $1.89 List price: $2.33
  • Ref No: 43
  • Part No: 9910800430
  • Qty Req: 1
Our price: $8.80 List price: $10.87
  • Ref No: 45
  • Part No: 9910800500
  • Qty Req: 1
Our price: $7.29 List price: $9.00
  • Ref No: 46
  • Part No: 9910800510
  • Qty Req: 1
Our price: $7.76 List price: $9.58
  • Ref No: 47
  • Part No: 9910390330
  • Qty Req: 1
Our price: $2.52 List price: $3.11
  • Ref No: 48
  • Part No: 9910800560
  • Qty Req: 1
Our price: $1.51 List price: $1.86
  • Ref No: 49
  • Part No: 9910800490
  • Qty Req: 1
Our price: $7.55 List price: $9.32
  • Ref No: 52
  • Part No: 9910800680
  • Qty Req: 1
Our price: $7.29 List price: $9.00
  • Ref No: 53
  • Part No: 9910740290
  • Qty Req: 1
Our price: $1.92 List price: $2.37
  • Ref No: 54
  • Part No: 9910800480
  • Qty Req: 1
Our price: $1.89 List price: $2.33
  • Ref No: 56
  • Part No: 9910800440
  • Qty Req: 1
Our price: $4.78 List price: $5.90
  • Ref No: 57
  • Part No: 9910800450
  • Qty Req: 1
Our price: $5.70 List price: $7.04
  • Ref No: 58
  • Part No: 9910800460
  • Qty Req: 1
Our price: $6.20 List price: $7.66
  • Ref No: 59
  • Part No: 9910800470
  • Qty Req: 1
Our price: $9.44 List price: $11.65
  • Ref No: 60
  • Part No: 9910480550
  • Qty Req: 1
Our price: $1.68 List price: $2.08
  • Ref No: 61
  • Part No: 9910800010
  • Qty Req: 1
Our price: $295.40 List price: $364.69
  • Ref No: 62
  • Part No: 9910550057
  • Qty Req: 1
Our price: $9.65 List price: $11.91
  • Ref No: 64
  • Part No: 9910800230
  • Qty Req: 1
Our price: $60.44 List price: $74.62
  • Ref No: 65
  • Part No: 9910800650
  • Qty Req: 1
Our price: $24.62 List price: $30.40
  • Ref No: 67
  • Part No: 9910540290
  • Qty Req: 4
Our price: $2.98 List price: $3.68
  • Ref No: 70
  • Part No: 9910800210
  • Qty Req: 2
Our price: $1.51 List price: $1.86
  • Ref No: 80
  • Part No: 9910800280
  • Qty Req: 1
Our price: $190.49 List price: $235.17
