Hypro 9910-KIT1990 Control Unit

Hypro 9910-KIT1990 Control Unit

Brand:
Hypro
Weight:
0.42 lb
Item #
9910KIT1990
5 reviews

$123.95
$123.95 List Price: $171.09

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 372 points with this purchase.

See Details

View full details

Product Overview

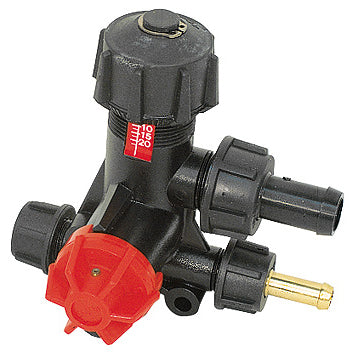

The Hypro 9910-KIT1990 Control Unit mounts directly on the Hypro D252 Diaphragm Pump, which is a replacement model for the obsolete D19 version. Features include a 3/8" HB outlet and 5/8" HB bypass port, bypass/pressure selector, and an adjustable relief valve. This unit handles pressures up to 290 PSI and flow rates up to six GPM efficiently, making it ideal for landscaping and agricultural professionals.

Manufacturer description

This control unit, for mounting on pump model 9910-D252, is capable of handling flow rates up to 6 gpm (22.7 lpm) and pressures up to 290 psi (20 bar). It includes one adjustable relief valve, one pressure/bypass selector, 5/8" HB bypass port and 3/8" HB port.

Resources

Download Product Manual

Features

  • Mounts to pump models: 9910-D252, 9910-D19
  • Max flow: 6 gpm
  • Max pressure: 290 psi
  • Port sizes: 5/8" hose barb bypass, 3/8" hose barb discharge
  • Weight: 1 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • O-Ring
    • Ref No: 22
    • Part No: 9910480440
    • Qty Req: 4
    Our price: $1.82 List price: $2.17
  • Ring Nut
    • Ref No: 35
    • Part No: 9910800520
    • Qty Req: 2
    Our price: $8.40 List price: $10.02
  • Plug
    • Ref No: 39
    • Part No: 9910800540
    • Qty Req: 1
    Our price: $2.88 List price: $3.43
  • Valve Body
    • Ref No: 40
    • Part No: 9910800400
    • Qty Req: 1
    Our price: $73.09 List price: $87.18
  • Washer
    • Ref No: 41
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.56 List price: $1.86
  • BOLT
    • Ref No: 42
    • Part No: 9910800410
    • Qty Req: 2
    Our price: $2.57 List price: $3.06
  • Valve
    • Ref No: 43
    • Part No: 9910800430
    • Qty Req: 1
    Our price: $9.11 List price: $10.87
  • Ring Nut
    • Ref No: 45
    • Part No: 9910800500
    • Qty Req: 1
    Our price: $8.03 List price: $9.58
  • Knob
    • Ref No: 46
    • Part No: 9910800510
    • Qty Req: 1
    Our price: $8.54 List price: $10.19
  • Pin
    • Ref No: 47
    • Part No: 9910390330
    • Qty Req: 1
    Our price: $2.61 List price: $3.11
  • O-Ring
    • Ref No: 48
    • Part No: 9910800560
    • Qty Req: 1
    Our price: $1.56 List price: $1.86
  • Positioning Rod
    • Ref No: 49
    • Part No: 9910800490
    • Qty Req: 1
    Our price: $8.31 List price: $9.91
  • Hose Barb ( Outlet ) 3/8"
    • Ref No: 50
    • Part No: 9910800530
    • Qty Req: 1
    Our price: $6.95 List price: $8.96
  • Hose Barb (Bypass) 5/8”
    • Ref No: 51
    • Part No: 9910800670
    • Qty Req: 1
    Our price: $5.87 List price: $7.65
  • Ring Nut
    • Ref No: 52
    • Part No: 9910800680
    • Qty Req: 1
    Our price: $8.40 List price: $10.02
  • O-Ring
    • Ref No: 53
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $1.99 List price: $2.37
  • ATM Scale Adhesive
    • Ref No: 54
    • Part No: 9910800480
    • Qty Req: 1
    Our price: $1.96 List price: $2.33
  • Lower Spring Guide
    • Ref No: 56
    • Part No: 9910800440
    • Qty Req: 1
    Our price: $5.52 List price: $6.59
  • Spring
    • Ref No: 57
    • Part No: 9910800450
    • Qty Req: 1
    Our price: $6.28 List price: $7.49
  • Upper Spring Guide
    • Ref No: 58
    • Part No: 9910800460
    • Qty Req: 1
    Our price: $6.83 List price: $8.15
  • Adjustment Knob
    • Ref No: 59
    • Part No: 9910800470
    • Qty Req: 1
    Our price: $10.39 List price: $12.39
  • Retaining Ring
    • Ref No: 60
    • Part No: 9910480550
    • Qty Req: 2
    Our price: $1.74 List price: $2.08
  • Flange
    • Ref No: 105
    • Part No: 9910450146
    • Qty Req: 1
    Our price: $49.29 List price: $58.79
  • Bolt
    • Ref No: 10
    • Part No: 9910880280
    • Qty Req: 2
    Our price: $1.66 List price: $1.97
