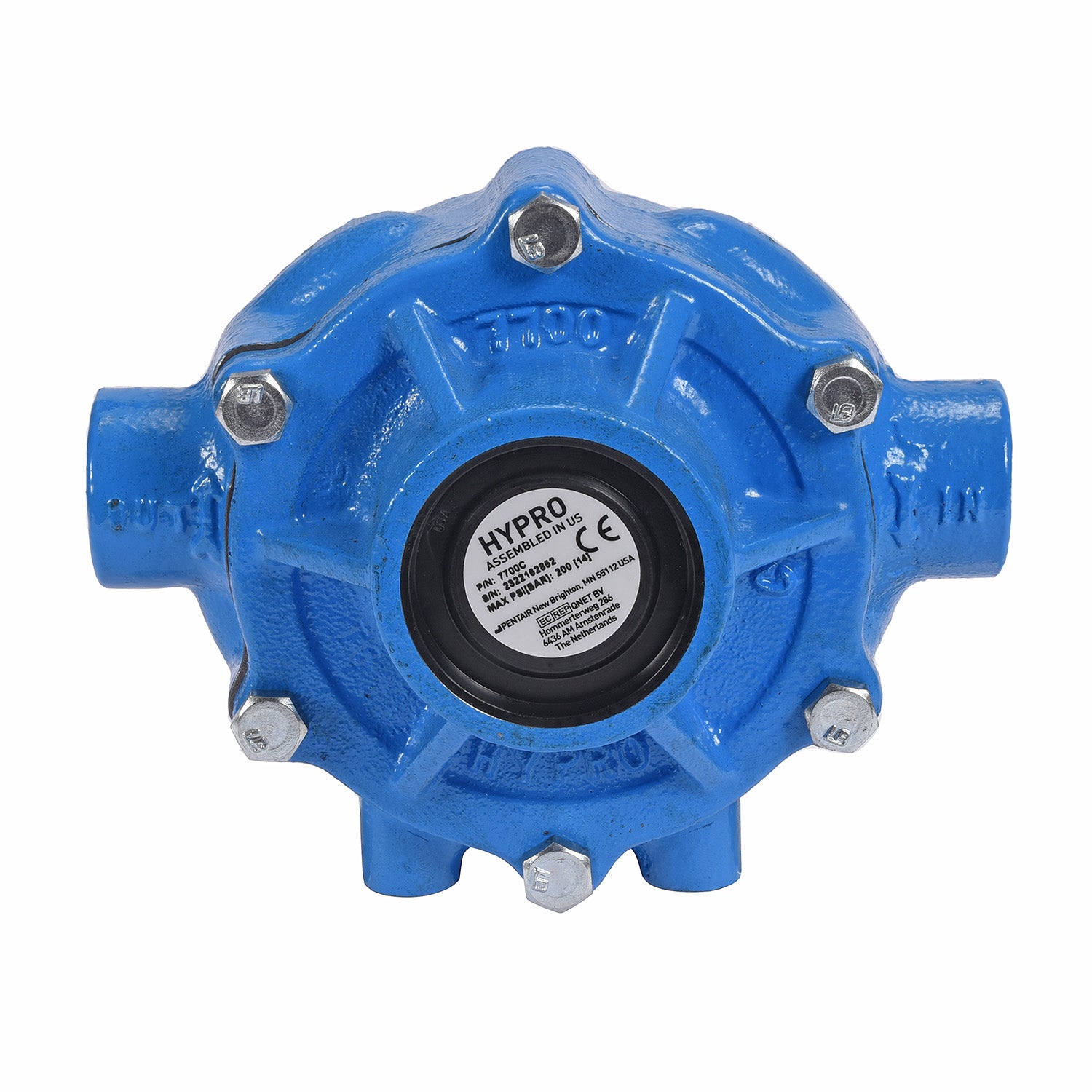

Hypro 7700C Roller Pump

Hypro 7700C Roller Pump

Item Code:
7700C
Weight:
14.0 lb
Manufacturer:
Hypro
Our price:
$233.49
List price:
$424.52
Overview:

This Hypro 7700C Roller Pump is ideal for both agricultural and industrial spraying. Crafted with a maximum pressure of 200 PSI and an upper flow rate of 22.1 GPM, it's perfect for use in lower pressure liquid deployment systems. Use it to deliver aromatic solvents, liquid fertilizers and emulsives as well as herbicides and insecticides.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:

  • Max flow: 22.1 gpm
  • Max pressure: 200 psi
  • Max rpm: 800
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CCW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon available
  • Roller quantity: 7
  • Shaft seals: Viton standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 14.2 gpm/53.7 lpm at 540 rpm
  • 22.1 gpm/83.6 lpm at 1000 rpm
  • Max fluid temperature: 140 F
  • Weight: 14 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 23000020
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 2
  • Part No: 20080001
  • Qty Req: 2
Our price: $16.89 List price: $20.85
  • Ref No: 3
  • Part No: 21120003
  • Qty Req: 2
Our price: $18.62 List price: $22.99
  • Ref No: 4
  • Part No: 22100004
  • Qty Req: 6
Our price: $1.01 List price: $1.25
  • Ref No: 13
  • Part No: 23000022
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 14
  • Part No: 16100005
  • Qty Req: 1
Our price: $1.82 List price: $2.25
