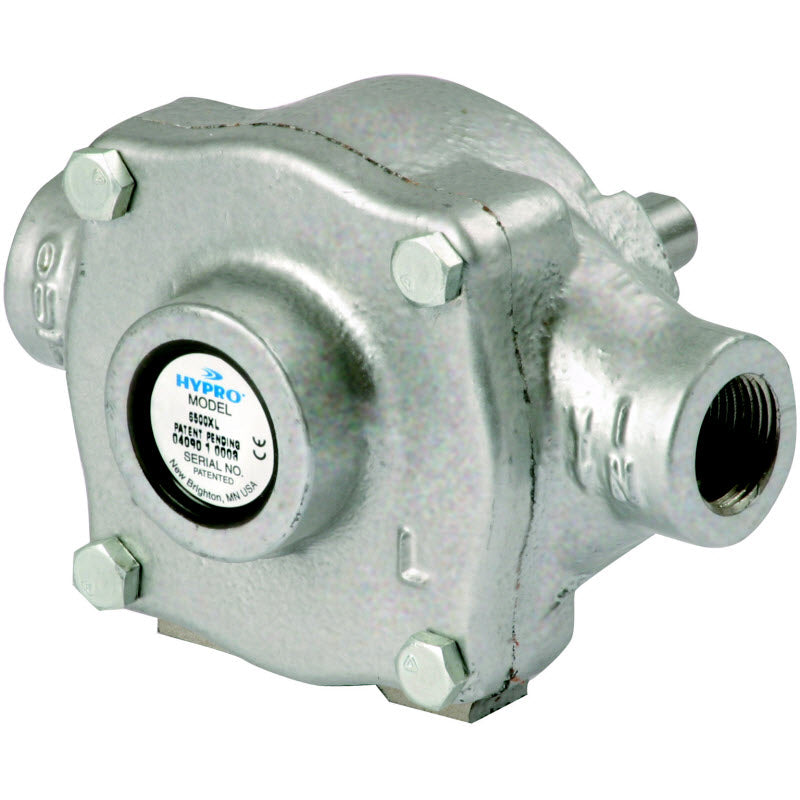

Hypro 6500XL-R Roller
1
Overview:
The Hypro 6500XL-R Roller pump with six rollers achieves up to 300 psi and 21.8 gpm. The series includes models with pumps that can run well over 1,000 hours and continue to meet the specifications of new pumps. The rotation of the shaft is clockwise to support coupling to gasoline engines. It is ideal for landscape and weed control applications.
Manufacturer Description:
Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. Ready for use with Roundup®.
Features:
- Max flow: 22 gpm
- Max pressure: 300 psi
- Max rpm: 1200
- Port sizes: 3/4" FNPT
- Pump shaft rotation: CW
- Housing: Silvercast
- Rotor: Silvercast
- Roller material: Super rollers standard, Poly and Teflon® available
- Roller quantity: 6
- Shaft seals: Viton® standard, Buna available
- Shaft: 5/8" solid stainless steel
- 9.7 gpm/36.7 lpm at 540 rpm
- 18.2 gpm/68.9 lpm at 1000 rpm
- 21.8 gpm/82.5 lpm at 1200 rpm
- Max fluid temperature: 140°F
- Weight: 9 lbs
Parts breakdown
