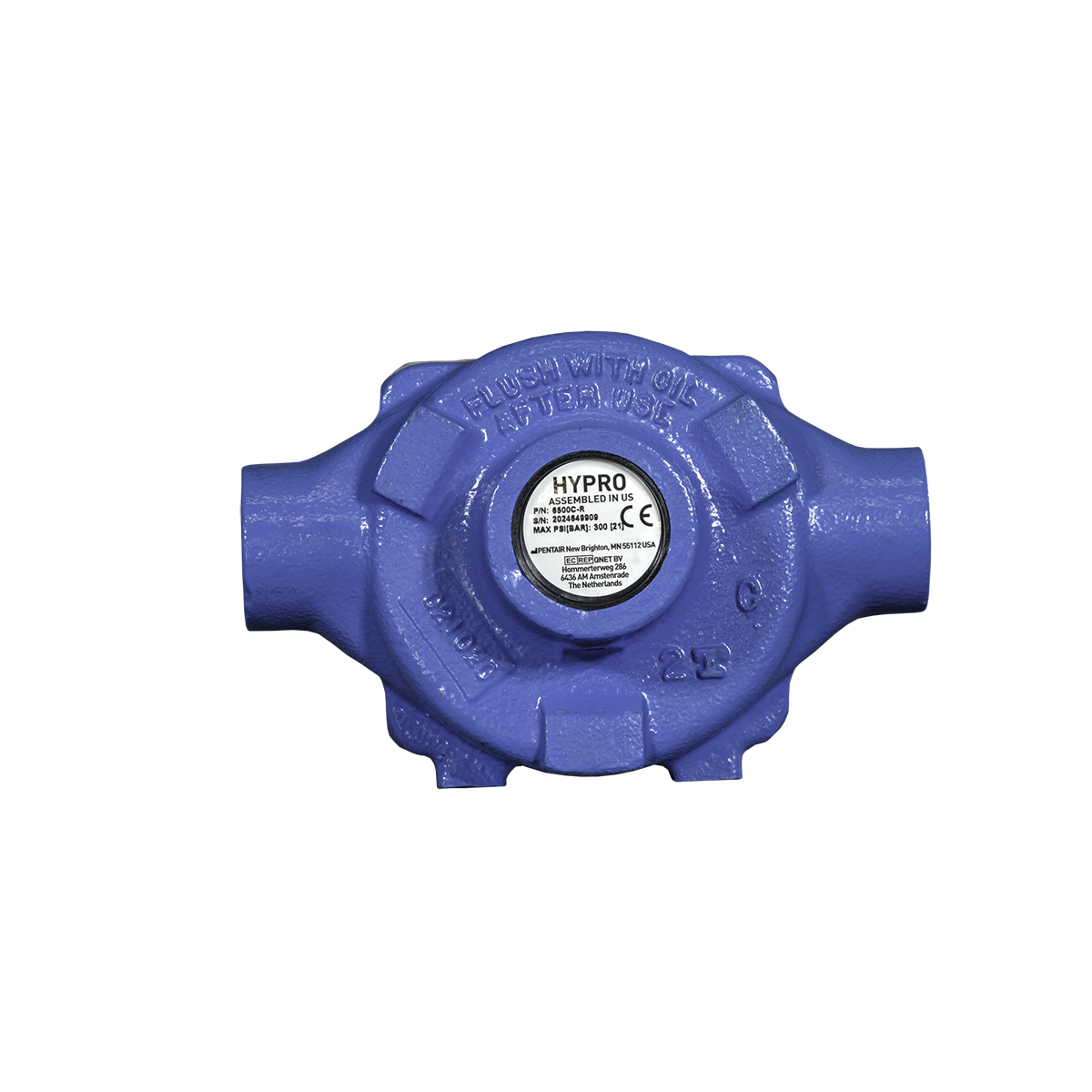

Hypro 6500C-R Roller Pump

Hypro 6500C-R Roller Pump

16 reviews
Item Code:
6500CR
Weight:
9.0 lb
Manufacturer:
Hypro
Our price:
$183.35
List price:
$333.36
Overview:

Distributing hard-to-handle materials such as pesticides, liquid fertilizers and herbicides is a necessary task for all small to medium scale commercial farmers. In order to get even and full spray coverage, you need a roller pump with low resistance and maneuverability. The Hypro 6500 series offers a user-friendly low-torque engine for easy, yet thorough liquid dispersal. Chemically treated and corrosion-resistant, this pump is built to last.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:

  • Max flow: 22 gpm
  • Max pressure: 300 psi
  • Max rpm: 1200
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 6
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 5/8" solid stainless steel
  • 9.7 gpm/36.7 lpm at 540 rpm
  • 18.2 gpm/68.9 lpm at 1000 rpm
  • 21.8 gpm/82.5 lpm at 1200 rpm
  • Max fluid temperature: 140°F
  • Weight: 9 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 23000021
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 2
  • Part No: 20000010
  • Qty Req: 2
Our price: $11.40 List price: $14.08
  • Ref No: 3
  • Part No: 21070002
  • Qty Req: 2
Our price: $11.75 List price: $14.50
  • Ref No: 4
  • Part No: 22100004
  • Qty Req: 4
Our price: $1.01 List price: $1.25
  • Ref No: 10
  • Part No: 23000023
  • Qty Req: 1
Our price: $1.73 List price: $2.13
