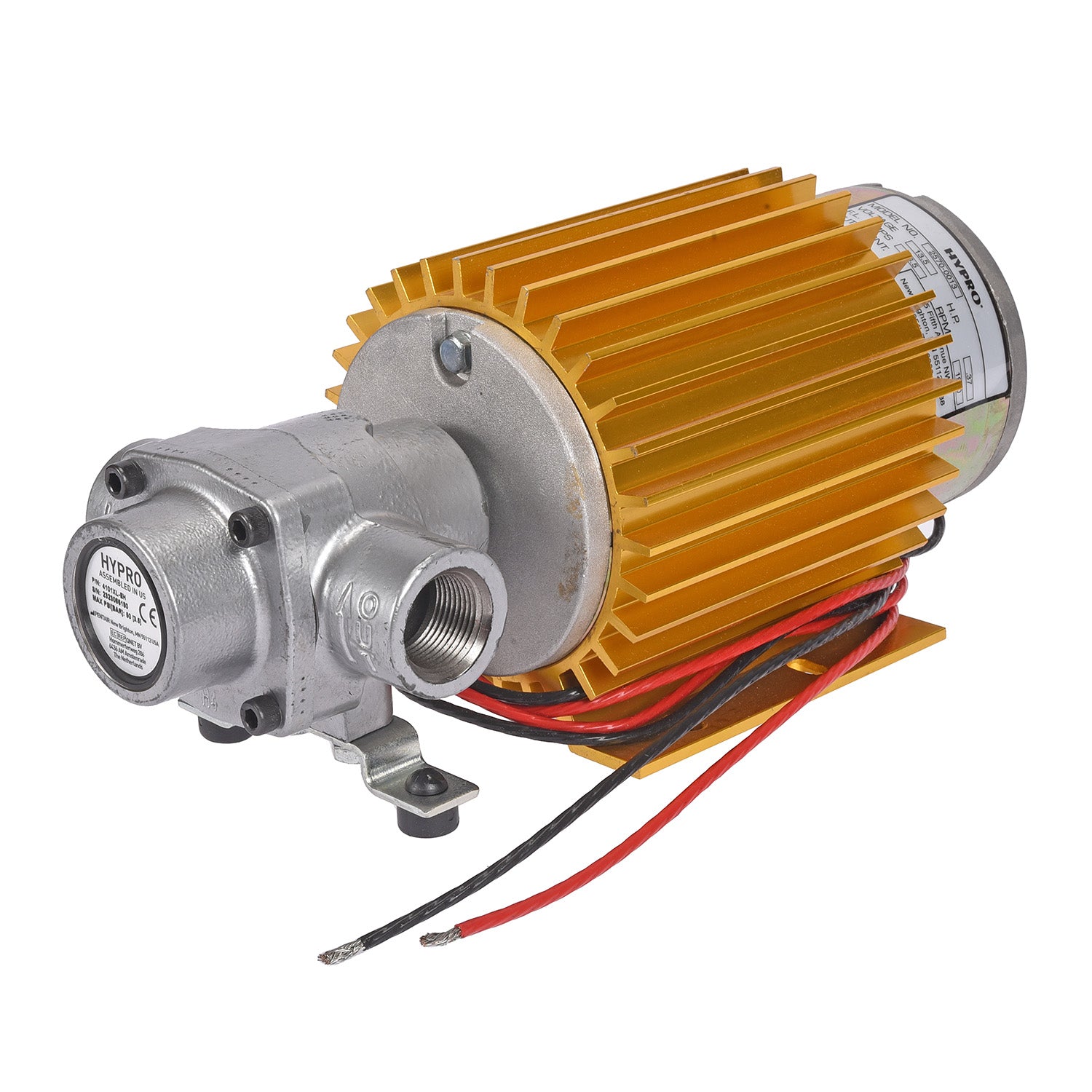

Hypro 4101XL-EH (4101XL-AEH) 12 Volt DC Roller Pump

Hypro 4101XL-EH (4101XL-AEH) 12 Volt DC Roller Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
4101XLEH
Skip to product information
1 of 1

Hypro 4101XL-EH (4101XL-AEH) 12 Volt DC Roller Pump

Hypro 4101XL-EH (4101XL-AEH) 12 Volt DC Roller Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
4101XLEH

Regular price $816.96
Sale price $816.96 Regular price List Price: $1,485.39

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,451 points with this purchase.

View full details

Collapsible content

Product Overview

Select this reliable and durable Hypro 4101XL-EH (4101XL-AEH) 12 Volt DC Roller Pump to power your agricultural sprayer systems. This product is capable of a maximum pressure of 50 PSI and a flow rate of 7.5 GPM. Additionally, it's already made for use with Roundup® products and is directly linked to a 12-volt DC motor.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. The 4000 series, 4-roller, 12-volt pump achieves up to 10.4 gpm, and 100 psi depending on the model. The series includes models 4001N-EH, 4001XL-EH, 4101N-EH, 4101XL-EH, 4001N-E2H, 4001XL-E2H, 4101N-E2H, 4101XL-E2H.

Features

  • 4101XL-H pump coupled to EH 12 volt DC motor
  • Max flow: 7.5 gpm
  • Max pressure: 50 psi
  • Max rpm: 1900
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Silvercast
  • Rotor: Silvercast
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 4
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 1/2" hollow stainless steel
  • Max fluid temperature: 140°F
  • Weight: 21 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body (SilverCast) with Std. Seal
    • Ref No: 1
    • Part No: 01004101X
    • Qty Req: 1
    Our price: $325.17 List price: $401.44
  • Electric Motor (12 vdc, .33hp) (gold)
    • Ref No: 2
    • Part No: 25700013
    • Qty Req: 1
    Our price: $405.42 List price: $675.70
  • Bearing Cover
    • Ref No: 4
    • Part No: 23000021
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Viton Seal (Std.)
    • Ref No: 5
    • Part No: 21070002
    • Qty Req: 2
    Our price: $12.34 List price: $15.23
  • Buna-N Seal (Optional)
    • Ref No: 5
    • Part No: 21020001
    • Qty Req: 2
    Our price: $29.16 List price: $36.00
  • Teflon® Coated Buna-N Seal (Optional)
    • Ref No: 5
    • Part No: 21020001T
    • Qty Req: 2
    Our price: $45.24 List price: $55.85
  • Endplate Screw
    • Ref No: 6
    • Part No: 22200018
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • O-Ring Gasket for Endplate
    • Ref No: 7
    • Part No: 17200104
    • Qty Req: 1
    Our price: $1.13 List price: $1.39
  • Rotor Assembly (Hollow Shaft)
    • Ref No: 8
    • Part No: 34300781
    • Qty Req: 1
    Our price: $132.41 List price: $163.47
  • Super Rollers (Std.)
    • Ref No: 9
    • Part No: 10050002
    • Qty Req: 4
    Our price: $4.54 List price: $5.60
  • Polypropylene Rollers (Optional)
    • Ref No: 9
    • Part No: 10020002
    • Qty Req: 4
    Our price: $3.96 List price: $4.89
  • Teflon® Rollers (Optional)
    • Ref No: 9
    • Part No: 10550002
    • Qty Req: 4
    Our price: $29.32 List price: $36.20
  • Base
    • Ref No: 10
    • Part No: 15100054
    • Qty Req: 1
    Our price: $16.37 List price: $20.21
  • Lock Washer
    • Ref No: 11
    • Part No: 22600002
    • Qty Req: 2
    Our price: $1.13 List price: $1.39
  • Head Hex Cap Screw
    • Ref No: 12
    • Part No: 22100003
    • Qty Req: 2
    Our price: $1.14 List price: $1.41
  • Bumper
    • Ref No: 13
    • Part No: 14500003
    • Qty Req: 2
    Our price: $1.62 List price: $2.00
  • Ball Bearing for Hypro Pumps
    • Ref No: 14
    • Part No: 20000010
    • Qty Req: 2
    Our price: $11.97 List price: $14.78
  • Locking Collar
    • Ref No: 15
    • Part No: 14200001
    • Qty Req: 1
    Our price: $7.04 List price: $8.69
  • Set Screw
    • Ref No: 16
    • Part No: 22300001
    • Qty Req: 1
    Our price: $2.25 List price: $2.78
  • Hypro 4101XL-H Roller Pump (Hollow Shaft)
    • Ref No: sku:4101XLH
    • Part No: 4101XLH
    • Qty Req: 1
    Our price: $468.56 List price: $851.92
