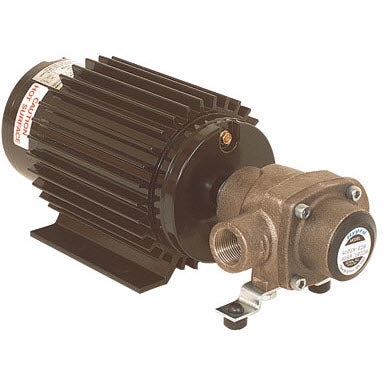

When you install this Hypro 4101N-EH (4101N-AEH) 12 Volt DC Roller Pump, you ensure that your sprayer system has steady pressure for your agricultural, commercial or industrial applications. With a maximum pressure of 50 PSI and a flow rate of 6.6 GPM, this durable pump is perfect for use in low-pressure assemblies.

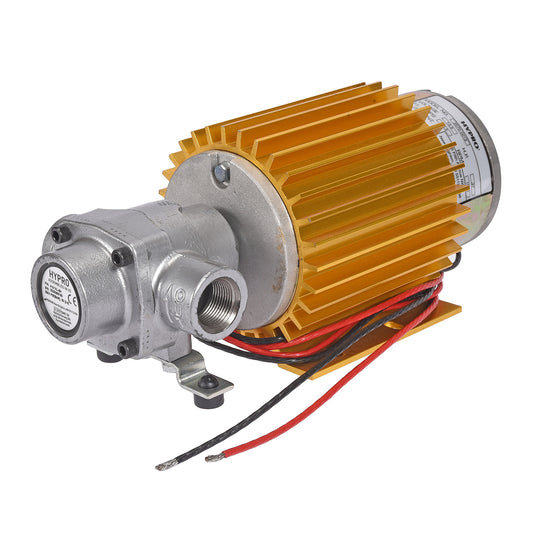

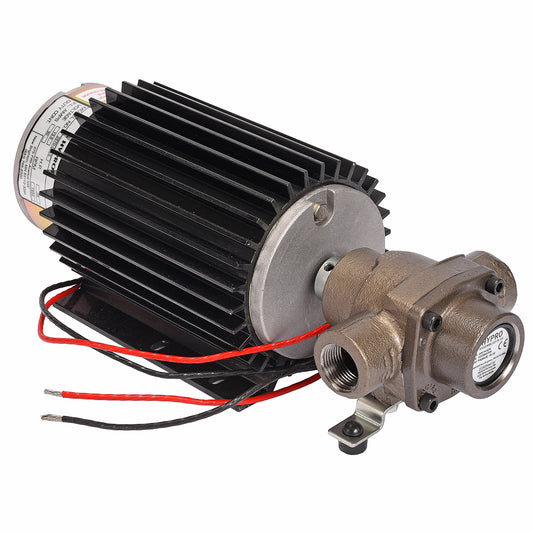

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. The 4000 series, 4-roller, 12-volt pump achieves up to 10.4 gpm, and 100 psi depending on the model. The series includes models 4001N-EH, 4001XL-EH, 4101N-EH, 4101XL-EH, 4001N-E2H, 4001XL-E2H, 4101N-E2H, 4101XL-E2H.

Download Product Manual

• 4001N-H pump coupled to EH 12 volt DC motor
• Max flow: 6.6 gpm
• Max pressure: 50 psi
• Max rpm: 1900
• Port sizes: 3/4" FNPT
• Pump shaft rotation: CW
• Housing: Ni-Resist
• Rotor: Ni-Resist
• Roller material: Super rollers standard, Poly and Teflon® available
• Roller quantity: 4
• Shaft seals: Viton® standard, Buna available
• Shaft: 1/2" hollow stainless steel
• Max fluid temperature: 140 F
• Weight: 21 lbs
