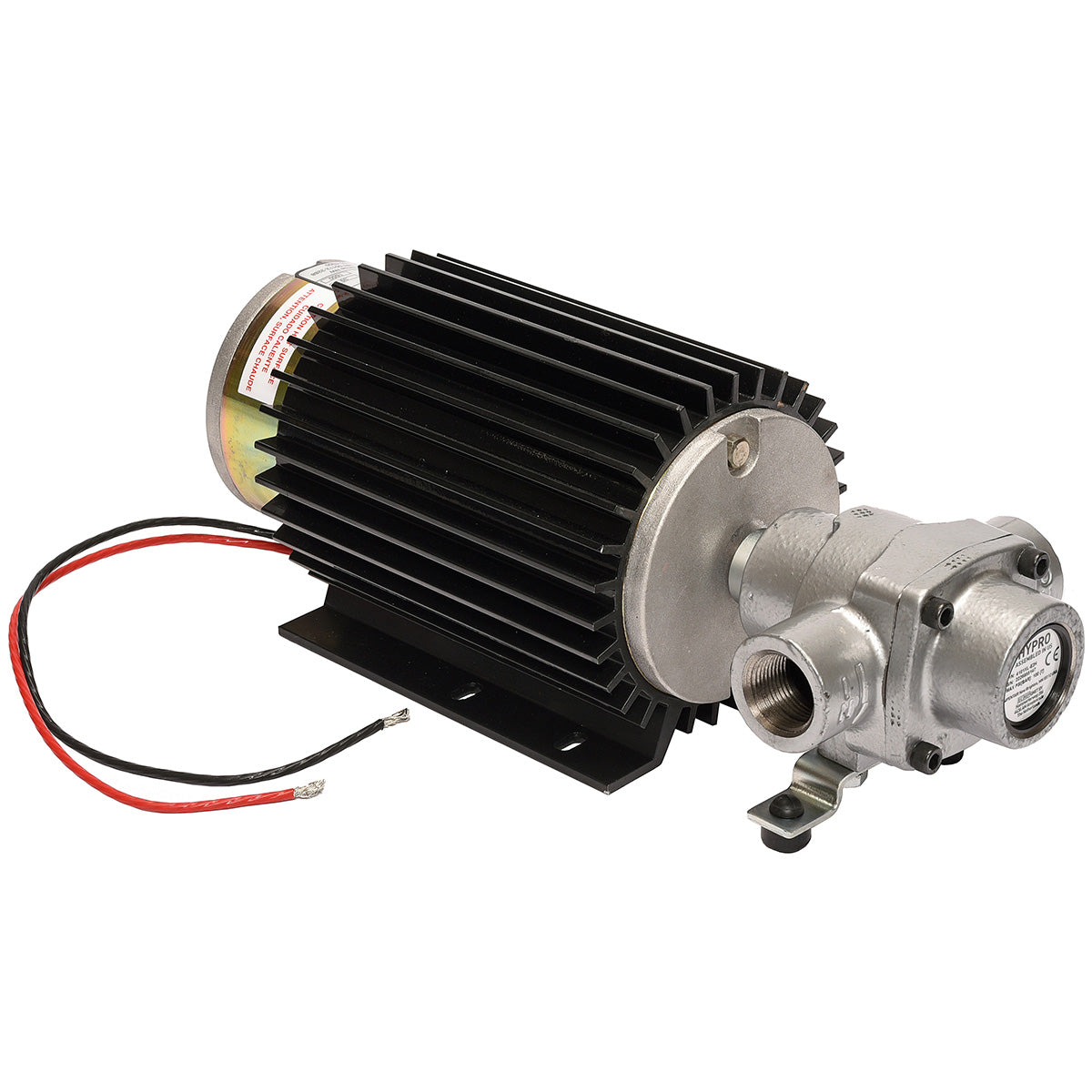

Hypro 4101XL-E2H (4101XL-AE2H) 12 Volt DC Roller Pump

Hypro 4101XL-E2H (4101XL-AE2H) 12 Volt DC Roller Pump

Item Code:
4101XLE2H
Weight:
17.0 lb
Manufacturer:
Hypro
Our price:
$849.00
List price:
$1,543.64
Overview:

You can use moderately corrosive chemicals with the Hypro 4101XL-E2H (4101XL-AE2H) 12 Volt DC Roller Pump, such as Roundup. This unit can handle a maximum of 100 PSI and outputs up to 5.9 GPM. Both the collar and torque arm lock into place, providing you with excellent stability and control.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. The 4000 series, 4-roller, 12-volt pump achieves up to 10.4 gpm, and 100 psi depending on the model. The series includes models 4001N-EH, 4001XL-EH, 4101N-EH, 4101XL-EH, 4001N-E2H, 4001XL-E2H, 4101N-E2H, 4101XL-E2H.

Features:

  • 4101XL-H pump coupled to E2H 12 volt DC motor
  • Max flow: 5.9 gpm
  • Max pressure: 90 psi
  • Max rpm: 1600
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Silvercast
  • Rotor: Silvercast
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 4
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 1/2" hollow stainless steel
  • Max fluid temperature: 140°F
  • Weight: 21 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 4
  • Part No: 23000021
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 5
  • Part No: 21070002
  • Qty Req: 2
Our price: $11.75 List price: $14.50
  • Ref No: 6
  • Part No: 22200018
  • Qty Req: 4
Our price: $1.01 List price: $1.25
  • Ref No: 9
  • Part No: 10050002
  • Qty Req: 4
Our price: $4.32 List price: $5.33
  • Ref No: 10
  • Part No: 15100054
  • Qty Req: 1
Our price: $15.59 List price: $19.25
  • Ref No: 11
  • Part No: 22600002
  • Qty Req: 2
Our price: $1.07 List price: $1.32
  • Ref No: 12
  • Part No: 22100003
  • Qty Req: 2
Our price: $1.09 List price: $1.34
  • Ref No: 13
  • Part No: 14500003
  • Qty Req: 2
Our price: $1.54 List price: $1.90
  • Ref No: 14
  • Part No: 20000010
  • Qty Req: 2
Our price: $11.40 List price: $14.08
  • Ref No: 15
  • Part No: 14200001
  • Qty Req: 1
Our price: $6.71 List price: $8.28
  • Ref No: 16
  • Part No: 22300001
  • Qty Req: 1
Our price: $2.15 List price: $2.65
