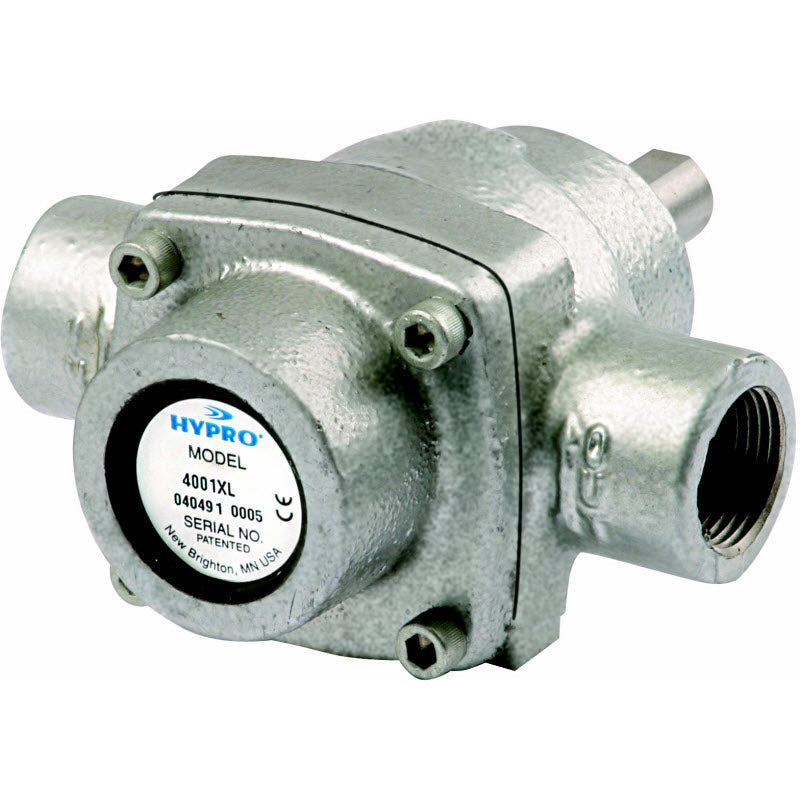

Hypro 4001XL (4001XL-A) Roller Pump

Hypro 4001XL (4001XL-A) Roller Pump

Item Code:
4001XL
Weight:
5.3 lb
Manufacturer:
Hypro
Our price:
$464.55
List price:
$844.64
Overview:

The Hypro 4001XL (4001XL-A) Roller Pump is economical, but it provides great performance every time. Designed to be used in many ways for agricultural and industrial purposes, this model efficiently sprays and transfers many types of fluids, including herbicides, insecticides, liquid fertilizers, emulsives and aromatic solvents. This pump is convenient in that it needs no check valves, yet it displaces liquids with low friction and starting torque.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. Ready for use with Roundup®.

Features:

  • Max flow: 9.1 gpm
  • Max pressure: 150 psi
  • Max rpm: 1800
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Silvercast
  • Rotor: Silvercast
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 4
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 5/8" solid stainless steel
  • Max fluid temperature: 140°F
  • Weight: 5 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 5
  • Part No: 10050002
  • Qty Req: 4
Our price: $4.54 List price: $5.60
  • Ref No: 7
  • Part No: 22200018
  • Qty Req: 4
Our price: $1.06 List price: $1.31
  • Ref No: 8
  • Part No: 21070002
  • Qty Req: 2
Our price: $12.34 List price: $15.23
  • Ref No: 9
  • Part No: 20000010
  • Qty Req: 2
Our price: $11.97 List price: $14.78
  • Ref No: 10
  • Part No: 34200024
  • Qty Req: 1
Our price: $49.66 List price: $61.31
  • Ref No: 12
  • Part No: 13200015
  • Qty Req: 1
Our price: $47.44 List price: $58.57
  • Ref No: 12
  • Part No: 13200016
  • Qty Req: 1
Our price: $46.34 List price: $57.21
  • Ref No: 13
  • Part No: 23000023
  • Qty Req: 1
Our price: $1.81 List price: $2.24
  • Ref No: 14
  • Part No: 23000021
  • Qty Req: 1
Our price: $1.73 List price: $2.14
  • Ref No: 15
  • Part No: 14200001
  • Qty Req: 1
Our price: $7.04 List price: $8.69
  • Ref No: 16
  • Part No: 22300001
  • Qty Req: 1
Our price: $2.25 List price: $2.78
  • Ref No: 17
  • Part No: 15100054
  • Qty Req: 1
Our price: $16.37 List price: $20.21
  • Ref No: 18
  • Part No: 14500003
  • Qty Req: 2
Our price: $1.62 List price: $2.00
  • Ref No: 19
  • Part No: 22100003
  • Qty Req: 2
Our price: $1.14 List price: $1.41
  • Ref No: 20
  • Part No: 22600002
  • Qty Req: 2
Our price: $1.13 List price: $1.39
