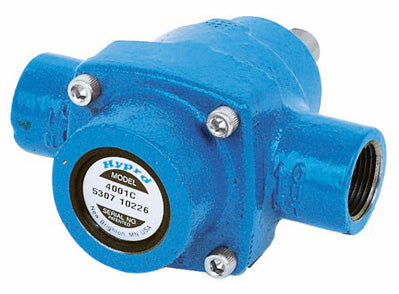

Hypro 4001C (4001C-A) Roller Pump

Hypro 4001C (4001C-A) Roller Pump

Brand:
Hypro
Weight:
8.0 lb
Item #
4001C
1 review
Skip to product information
1 of 1

Hypro 4001C (4001C-A) Roller Pump

Hypro 4001C (4001C-A) Roller Pump

Brand:
Hypro
Weight:
8.0 lb
Item #
4001C
1 review

Regular price $184.66
Sale price $184.66 Regular price List Price: $335.75

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 554 points with this purchase.

View full details

Collapsible content

Product Overview

The Hypro 4001C Roller Pump is designed for a variety of agricultural and industrial spraying tasks. Its solid stainless steel shaft and chemically resistant seals help it withstand chemical damage, making it an ideal choice for pumping everything from insecticide and fertilizer to emulsives and aromatic solvents. When handling herbicides, this model can last up to ten times longer than other pumps with its high resistance to corrosion and wear.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features

  • Max flow: 9.1 gpm
  • Max pressure: 150 psi
  • Max rpm: 1800
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 4
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 5/8" solid stainless steel
  • Max fluid temperature: 140°F
  • Weight: 5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body (Cast Iron) with Std. Seal
    • Ref No: 1
    • Part No: 01004001C
    • Qty Req: 1
    Our price: $80.24 List price: $99.06
  • Endplate (Cast Iron) with Std. Seal
    • Ref No: 2
    • Part No: 02004001C
    • Qty Req: 1
    Our price: $48.02 List price: $59.28
  • Super Rollers (Std.)
    • Ref No: 5
    • Part No: 10050002
    • Qty Req: 4
    Our price: $4.54 List price: $5.60
  • Polypropylene Rollers (Optional)
    • Ref No: 5
    • Part No: 10020002
    • Qty Req: 4
    Our price: $3.96 List price: $4.89
  • Teflon® Rollers (Optional)
    • Ref No: 5
    • Part No: 10550002
    • Qty Req: 4
    Our price: $29.32 List price: $36.20
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200104
    • Qty Req: 1
    Our price: $1.13 List price: $1.39
  • Endplate Screw
    • Ref No: 7
    • Part No: 22200018
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • Viton Seal (Std.)
    • Ref No: 8
    • Part No: 21070002
    • Qty Req: 2
    Our price: $12.34 List price: $15.23
  • Buna-N Seal (Optional)
    • Ref No: 8
    • Part No: 21020001
    • Qty Req: 2
    Our price: $29.16 List price: $36.00
  • Teflon® Coated Buna-N Seal (Optional)
    • Ref No: 8
    • Part No: 21020001T
    • Qty Req: 2
    Our price: $45.24 List price: $55.85
  • Ball Bearing for Hypro Pumps
    • Ref No: 9
    • Part No: 20000010
    • Qty Req: 2
    Our price: $11.97 List price: $14.78
  • Base Kit (3-1/2")
    • Ref No: 10
    • Part No: 34200024
    • Qty Req: 1
    Our price: $49.66 List price: $61.31
  • Base Kit (4-3/16")
    • Ref No: 11
    • Part No: 34200025
    • Qty Req: 1
    Our price: $54.34 List price: $54.34
  • Adapter (5/8 X 3/4")
    • Ref No: 12
    • Part No: 13200015
    • Qty Req: 1
    Our price: $47.44 List price: $58.57
  • Adapter (5/8 X 5/8)
    • Ref No: 12
    • Part No: 13200016
    • Qty Req: 1
    Our price: $46.34 List price: $57.21
  • Shaft Bearing Cover
    • Ref No: 13
    • Part No: 23000023
    • Qty Req: 1
    Our price: $1.81 List price: $2.24
  • Bearing Cover
    • Ref No: 14
    • Part No: 23000021
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Locking Collar
    • Ref No: 15
    • Part No: 14200001
    • Qty Req: 1
    Our price: $7.04 List price: $8.69
  • Set Screw
    • Ref No: 16
    • Part No: 22300001
    • Qty Req: 1
    Our price: $2.25 List price: $2.78
  • Base
    • Ref No: 17
    • Part No: 15100054
    • Qty Req: 1
    Our price: $16.37 List price: $20.21
  • Bumper
    • Ref No: 18
    • Part No: 14500003
    • Qty Req: 2
    Our price: $1.62 List price: $2.00
  • Head Hex Cap Screw
    • Ref No: 19
    • Part No: 22100003
    • Qty Req: 2
    Our price: $1.14 List price: $1.41
  • Lock Washer
    • Ref No: 20
    • Part No: 22600002
    • Qty Req: 2
    Our price: $1.13 List price: $1.39
