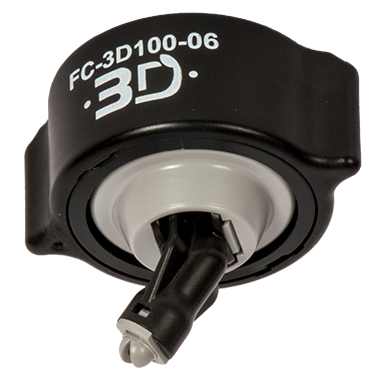

Hypro FC-3D100-06 3D Nozzle

Hypro FC-3D100-06 3D Nozzle

1 review
Item Code:
0.02 lb
Our price:
List price:

The new Hypro 3D Nozzle gives you optimum spray coverage - the ability to install facing opposite directions allows full coverage of your target. Available in both Fast Cap and standard configuration and in multiple orifice sizes.

Manufacturer Description:

The NEW Hypro 3D Nozzle is an inclined all-purpose nozzle for optimum spray coverage. PWM compatible.

-Designed in partnership with Syngenta using wind tunnel research and more than 10 years of agronomic field trials

-Proven to deliver up to a 10% increase in pre-emerge weed control compared to a conventional flat fan

-60-75% drift reduction compared to flat fan nozzles, achieving 2 Star LERAP rating at specific nozzle size/pressure combinations

-PWM compatible; Install 3D nozzles facing the same direction when using with PWM systems at less than 30 Hz


Material: Polyacetal

Pressure Range: 10-90 psi

Pattern: Alternating Tapered Flat Fans

Spray Angle: 100 degree

Connection Type: Fast Cap
Customer Reviews
5.0 Based on 1 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • Use Case Agriculture
  • Ease of Use Very Easy
  • Was Customer Service Helpful? I didn't interact with Customer Service
Hypro 3D 06 Nozzle review

I bought these nozzles mainly for spraying fungicides on sugar beets and dry beans. We spray sugar beets 5-6, maybe even 7 times with systemic and contact fungicides. Dry Beans 1-2 w/ contact herbicides, 1-2 fungicide apps, & 1 dessication application. 18-20+ gal/acre typically, 50-100 psi, NOT a Pulse Width Modulation (PWM system) Good coverage is very important. Our local Sugar Beet cooperative did numerous trials with water sensitive paper testing coverage of different nozzles. This nozzle was their most consistent performer. From what i see from the cab I'm a believer. I replaced a set of Twin Turbo Teejet nozzles with these nozzles. From the cab i can notice a large reduction of drifting fines. Even at higher pressures their is less of a fog. With the cost of the products we spray, this is very important. I want my active ingredients on the plant, not evaporating before it hits the plants. I like how i can alternate the direction of the nozzles, forward facing and rear facing, giving the the dual angle i had with the Twin Turbo Teejet , but with less drifting fines. Installs like a Teejet, simple. I used these tips for spraying preemerge herbicides with 28% on my corn too. Excellent coverage. No post spray cleanup was necessary. I also used this tip for a Liberty Burndown @ 20gal/acre. Excellent results. If you are considering buying these tips, order a few extra. I was renting a machine equipped with these tips (04 size) and the grey insert at the end of the tip came out. Sure, you may be able to buy a flat fan or turbo tee jet nozzle cheaper, but that pales in comparison to the cost of the product coming out of your boom. I am considering purchasing a second set of these tips in the Brown (05) size, for lower rates. I hope this review helps anyone considering what spray tips to buy. I rarely, if not ever, write reviews, but no one had written one on this site for these tips. Forrest Michigan Crops Grown: Sugar Beets, Black Beans, Soft White Winter Wheat, Corn
