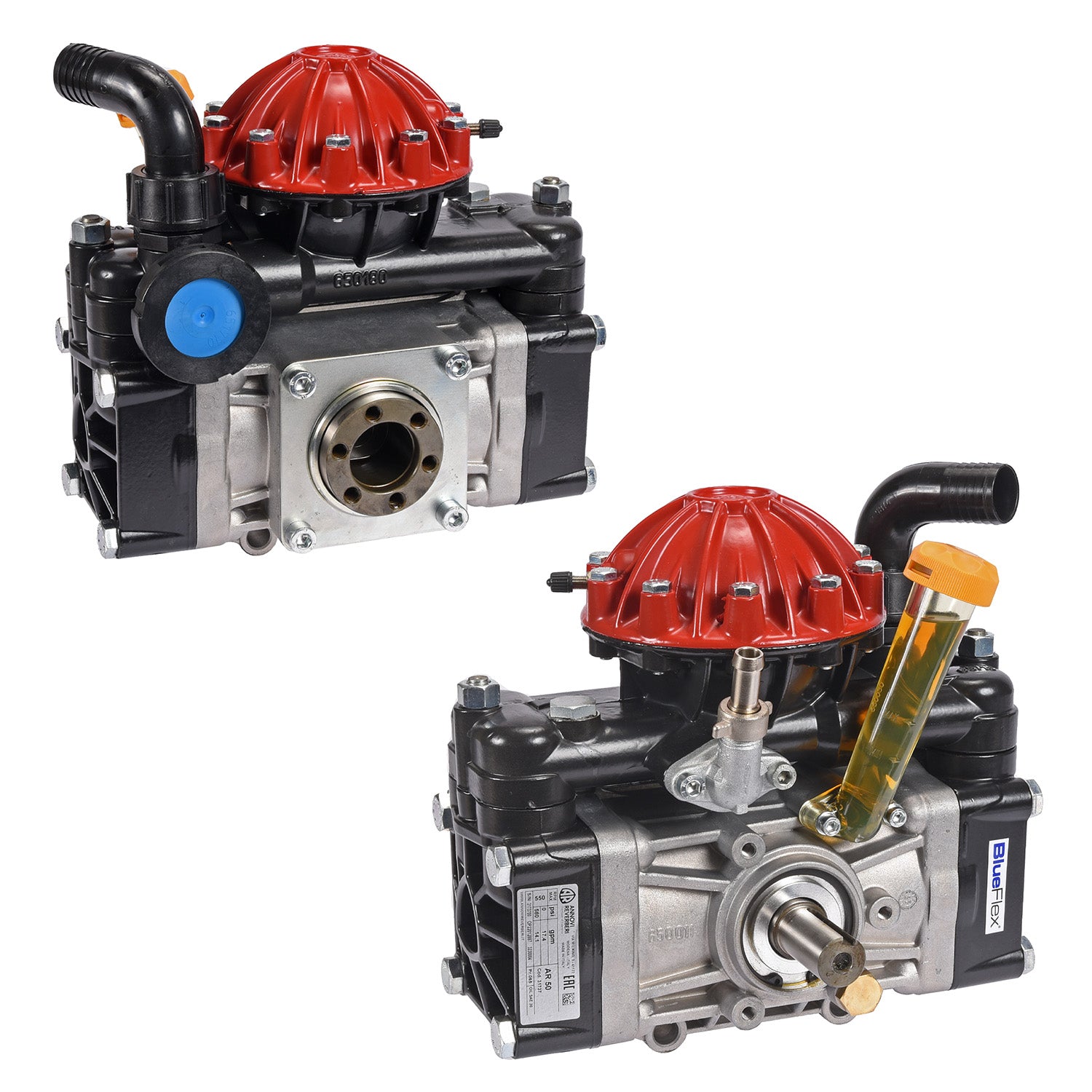

Hypro D50AP-A (AR50-SP/A1) Diaphragm Pump

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.

**When you order this pump, you will receive the most current version, AR50-SP/A1**

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. See kits on page 2. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503.

Download Product Manual

• Max flow: 14.8 gpm
• Max pressure: 580 psi
• Port sizes: 1-1/4" HB inlet. 1/2" HB outlet
• Max RPM: 550
• Max. fluid temperature: 140°F/60°C
• Shaft: Flanged w/ 1" shaft ext.
• Diaphragms: 2, semi-hydraulic, BlueFlex standard.  Desmopan® and Buna available
• Housing components for liquid handling: epoxy-coated
• Pump shaft rotation: CW and CCW.
• Recommended control unit: 9910-GS40GI (GI40)
• Weight: 24 lbs.
