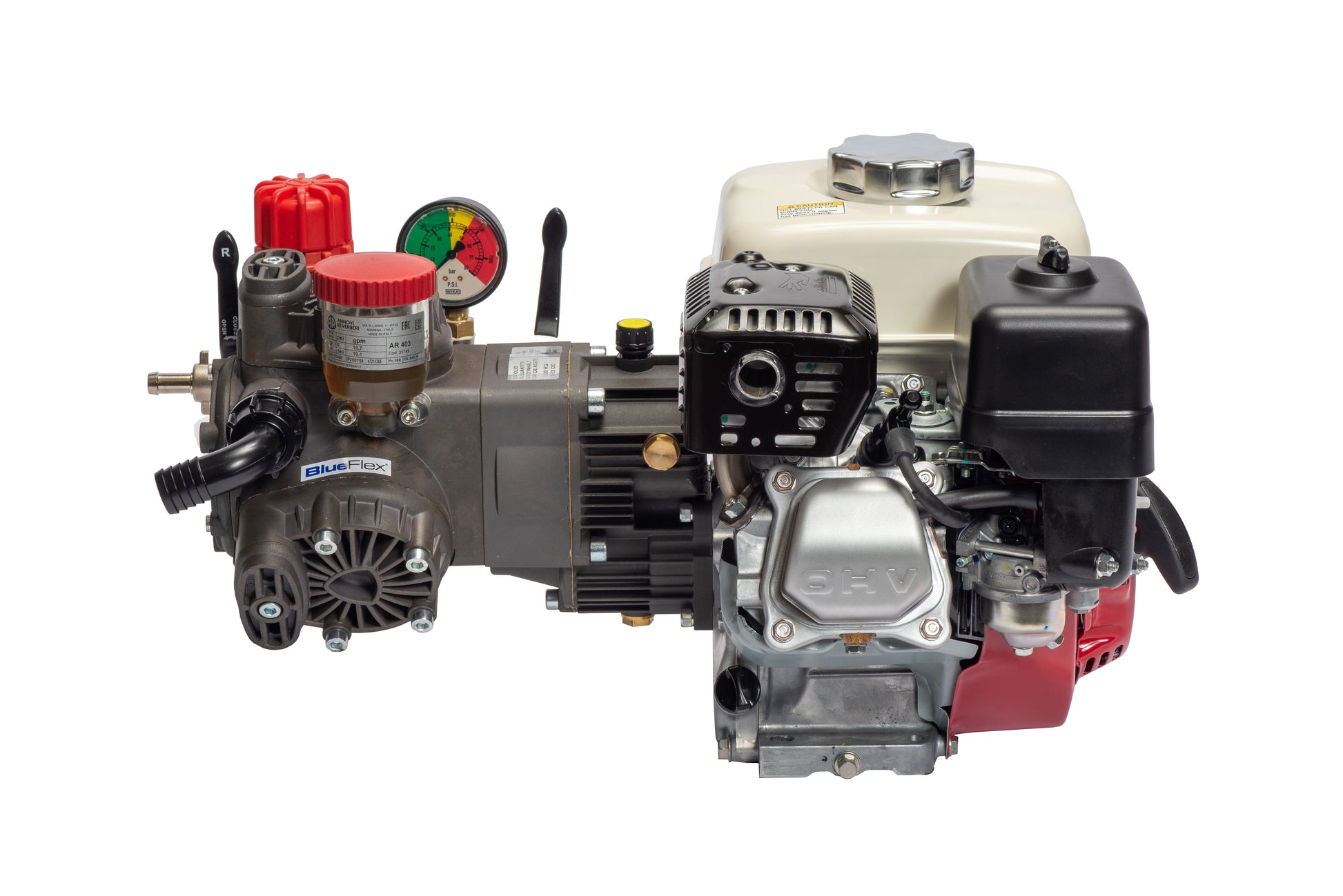

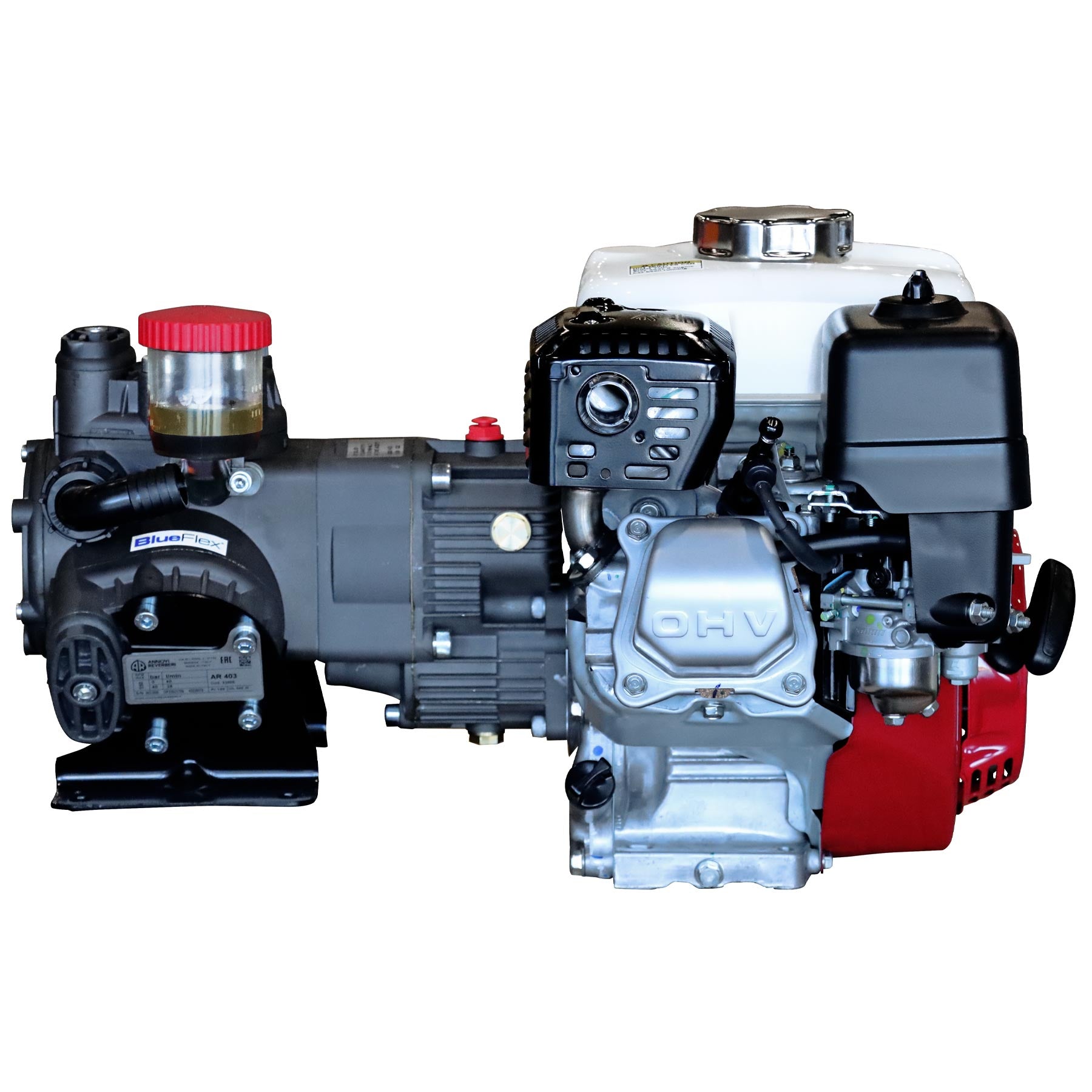

Hypro D403GRGI & Honda GX160 Engine Assembly

Hypro D403GRGI & Honda GX160 Engine Assembly

4 reviews
Item Code:
GXD403
Weight:
76.0 lb
Manufacturer:
Hypro
Our price:
$1,349.00
List price:
$1,349.00
Overview:
Maximize the efficiency in your sprayer systems. This Hypro D403GRGI & Honda GX160 Engine Assembly contains durable, powerful components, and with a maximum pressure capacity of 580 PSI it is fabricated to handle medium-pressure spraying of many agricultural substances. With a 5.5. HP Honda commercial-grade engine, it's a champion at deploying liquid fertilizer, herbicide, pesticide and other agricultural solutions that require special care.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon. If you order one of these products you may receive the original factory version manufactured by AR in Italy. Specs and performance are the same.

Manufacturer Description:

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

Features:

9910-D403GRGI:
  • Max flow: 10.6 gpm
  • Max pressure: 580 psi
  • Includes 9910-GR40 pressure regulator and 9910-KIT1640 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F Honda GX160 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 9910800090
  • Qty Req: 3
Our price: $7.76 List price: $9.58
  • Ref No: 2
  • Part No: 9910800350
  • Qty Req: 3
Our price: $8.34 List price: $10.30
  • Ref No: 3
  • Part No: 9910800080
  • Qty Req: 3
Our price: $20.42 List price: $25.21
  • Ref No: 4
  • Part No: 99101880050
  • Qty Req: 3
Our price: $45.18 List price: $55.78
  • Ref No: 5
  • Part No: 99101880110
  • Qty Req: 3
Our price: $10.06 List price: $12.42
  • Ref No: 6
  • Part No: 99101880060
  • Qty Req: 3
Our price: $43.54 List price: $53.75
  • Ref No: 7
  • Part No: 99101880120
  • Qty Req: 3
Our price: $10.48 List price: $12.94
  • Ref No: 8
  • Part No: 9910380080
  • Qty Req: 6
Our price: $1.92 List price: $2.37
  • Ref No: 9
  • Part No: 99101880070
  • Qty Req: 3
Our price: $56.98 List price: $70.35
  • Ref No: 10
  • Part No: 99101880100
  • Qty Req: 1
Our price: $261.67 List price: $323.05
  • Ref No: 11
  • Part No: 99101500350
  • Qty Req: 1
Our price: $52.50 List price: $64.82
  • Ref No: 12
  • Part No: 9910900270
  • Qty Req: 4
Our price: $1.56 List price: $1.92
  • Ref No: 13
  • Part No: 9910820670
  • Qty Req: 4
Our price: $2.48 List price: $3.06
  • Ref No: 14
  • Part No: 9910620330
  • Qty Req: 1
Our price: $12.16 List price: $15.01
  • Ref No: 15
  • Part No: 9910620130
  • Qty Req: 1
Our price: $24.41 List price: $30.14
  • Ref No: 16
  • Part No: 9910550060
  • Qty Req: 1
Our price: $61.87 List price: $76.38
  • Ref No: 18
  • Part No: 99101880180
  • Qty Req: 2
Our price: $19.72 List price: $24.35
  • Ref No: 19
  • Part No: 99101880170
  • Qty Req: 1
Our price: $5.03 List price: $6.21
  • Ref No: 20
  • Part No: 9910111120
  • Qty Req: 1
Our price: $7.32 List price: $9.04
  • Ref No: 21
  • Part No: 99101461430
  • Qty Req: 1
Our price: $38.26 List price: $47.24
  • Ref No: 22
  • Part No: 9910620291
  • Qty Req: 1
Our price: $7.13 List price: $8.80
  • Ref No: 25
  • Part No: 9910780060
  • Qty Req: 3
Our price: $1.72 List price: $2.12
  • Ref No: 26
  • Part No: 99101880380
  • Qty Req: 1
Our price: $14.79 List price: $18.26
  • Ref No: 27
  • Part No: 99101880020
  • Qty Req: 1
Our price: $40.80 List price: $50.37
  • Ref No: 28
  • Part No: 9910390290
  • Qty Req: 1
Our price: $2.10 List price: $2.59
  • Ref No: 29
  • Part No: 9910550340
  • Qty Req: 1
Our price: $8.74 List price: $10.79
  • Ref No: 30
  • Part No: 9910550350
  • Qty Req: 2
Our price: $1.79 List price: $2.21
  • Ref No: 31
  • Part No: 9910550242
  • Qty Req: 1
Our price: $9.23 List price: $11.39
  • Ref No: 32
  • Part No: 9910550370
  • Qty Req: 1
Our price: $13.20 List price: $16.30
  • Ref No: 33
  • Part No: 9910390201
  • Qty Req: 1
Our price: $5.15 List price: $6.36
  • Ref No: 34
  • Part No: 99101880130
  • Qty Req: 1
Our price: $1.88 List price: $2.32
  • Ref No: 35
  • Part No: 9910390180
  • Qty Req: 1
Our price: $1.51 List price: $1.86
  • Ref No: 36
  • Part No: 9910550331
  • Qty Req: 2
Our price: $1.51 List price: $1.86
  • Ref No: 37
  • Part No: 99101200440
  • Qty Req: 2
Our price: $1.89 List price: $2.33
  • Ref No: 39
  • Part No: 9910650920
  • Qty Req: 1
Our price: $2.92 List price: $3.60
  • Ref No: 40
  • Part No: 99101040322
  • Qty Req: 1
Our price: $32.14 List price: $39.68
  • Ref No: 41
  • Part No: 9910540290
  • Qty Req: 2
Our price: $2.98 List price: $3.68
  • Ref No: 44
  • Part No: 9910110130
  • Qty Req: 1
Our price: $15.09 List price: $18.63
  • Ref No: 48
  • Part No: 9910800860
  • Qty Req: 12
Our price: $2.92 List price: $3.60
  • Ref No: 49
  • Part No: 99101880030
  • Qty Req: 3
Our price: $63.14 List price: $77.95
  • Ref No: 51
  • Part No: 99101140450
  • Qty Req: 6
Our price: $0.62 List price: $0.77
  • Ref No: 52
  • Part No: 99101880010
  • Qty Req: 1
Our price: $308.16 List price: $380.45
  • Ref No: 54
  • Part No: 9910280080
  • Qty Req: 3
Our price: $3.43 List price: $4.23
  • Ref No: 55
  • Part No: 99101880040
  • Qty Req: 3
Our price: $60.86 List price: $75.13
  • Ref No: 57
  • Part No: 9910740290
  • Qty Req: 2
Our price: $1.92 List price: $2.37
  • Ref No: 58
  • Part No: 24060023
  • Qty Req: 2
Our price: $10.26 List price: $12.67
  • Ref No: 59
  • Part No: 99101880080
  • Qty Req: 1
Our price: $29.40 List price: $36.30
  • Ref No: 60
  • Part No: 99101880090
  • Qty Req: 1
Our price: $29.40 List price: $36.30
  • Ref No: 61
  • Part No: 9910620680
  • Qty Req: 1
Our price: $3.27 List price: $4.04
