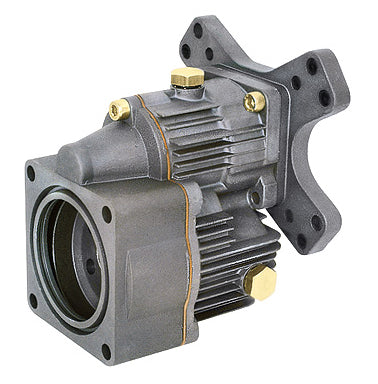

Hypro 9910KIT1642 Gear Box

Hypro 9910KIT1642 Gear Box

Brand:
Hypro
Weight:
8.32 lb
Item #
9910KIT1642
1 1

Hypro 9910KIT1642 Gear Box

Hypro 9910KIT1642 Gear Box

Brand:
Hypro
Weight:
8.32 lb
Item #
9910KIT1642

$490.28
$490.28 List Price: $930.01

Earn 1,471 points with this purchase.

See Details

View full details

Product Overview

The Hypro/AR 9910KIT1642 (AR1639) Gear Box is the ideal component requiring little maintenance and providing the smooth operation of sprayer pumps. The design optimizes the performance of most medium- to large-size sprayers for a variety of applications. This gearbox supports a wide spectrum of pressures and flows for suspensions and slurries useful for standard eight to 18 HP gas engines with one-inch shafts.

Manufacturer description

6:1 gear box for standard 8 to 18 hp gas engine with 1" shaft. Fits pump models 9910-D50 (AR50), 9910-D503(AR503), 9910-D813 (AR813), 9910-D1064 (AR1064) and 9910-D1265.

Resources

Download Product Manual

Features

  • Fits pump models: 9910-D50 (AR50), 9910-D503(AR503), 9910-D813 (AR813), 9910-D1064 (AR1064) and 9910-D1265.
  • Gear ratio: 6 to 1
  • Engine Size: 8-18 hp with 1" solid keyed shaft
  • Weight: 8.5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • O-Ring
    • Ref No: 1
    • Part No: 9910620561
    • Qty Req: 1
    Our price: $7.42 List price: $8.90
  • Bolt
    • Ref No: 2
    • Part No: 9910180030
    • Qty Req: 1
    Our price: $2.05 List price: $2.63
  • Pump Adapter Flange
    • Ref No: 3
    • Part No: 9910621000
    • Qty Req: 1
    Our price: $226.90 List price: $234.01
  • Bearing
    • Ref No: 4
    • Part No: 9910620990
    • Qty Req: 1
    Our price: $93.58 List price: $111.88
  • Gear
    • Ref No: 5
    • Part No: 9910651620
    • Qty Req: 1
    Our price: $256.55 List price: $272.69
  • Lockwasher
    • Ref No: 6
    • Part No: 9910200231
    • Qty Req: 6
    Our price: $1.90 List price: $2.16
  • Bolt
    • Ref No: 7
    • Part No: 9910160671
    • Qty Req: 3
    Our price: $4.42 List price: $4.91
  • Allen Bolt
    • Ref No: 7
    • Part No: 9910620470
    • Qty Req: 3
    Our price: $2.70 List price: $3.27
  • Gearbox Body
    • Ref No: 8
    • Part No: 9910620960
    • Qty Req: 1
    Our price: $214.09 List price: $251.40
  • Oil drain plug
    • Ref No: 9
    • Part No: 24060023
    • Qty Req: 3
    Our price: $12.34 List price: $15.23
  • O-Ring
    • Ref No: 10
    • Part No: 9910740290
    • Qty Req: 3
    Our price: $2.09 List price: $2.31
  • Bolt
    • Ref No: 11
    • Part No: 9910540290
    • Qty Req: 4
    Our price: $3.23 List price: $3.66
  • Bolt
    • Ref No: 12
    • Part No: 9910621010
    • Qty Req: 4
    Our price: $6.35 List price: $7.13
  • Vent Plug
    • Ref No: 13
    • Part No: 99101140370
    • Qty Req: 1
    Our price: $16.32 List price: $16.88
  • Pinion Gear
    • Ref No: 14
    • Part No: 9910651610
    • Qty Req: 1
    Our price: $276.84 List price: $354.99
  • Retaining Ring (Ext.)
    • Ref No: 15
    • Part No: 9910320240
    • Qty Req: 2
    Our price: $3.73 List price: $4.36
  • Bearing
    • Ref No: 16
    • Part No: 9910961780
    • Qty Req: 1
    Our price: $82.04 List price: $87.87
  • Retaining Ring (Int.)
    • Ref No: 17
    • Part No: 9910961790
    • Qty Req: 1
    Our price: $6.38 List price: $7.63
  • Seal
    • Ref No: 18
    • Part No: 9910961800
    • Qty Req: 1
    Our price: $32.70 List price: $35.69
  • Bolt
    • Ref No: 19
    • Part No: 9910651000
    • Qty Req: 4
    Our price: $11.61 List price: $11.84
  • Bolt
    • Ref No: 20
    • Part No: 9910961900
    • Qty Req: 4
    Our price: $4.05 List price: $4.19
  • Adapter Flange
    • Ref No: 21
    • Part No: 99101320940
    • Qty Req: 1
    Our price: $123.50 List price: $124.28
  • Spacer
    • Ref No: 22
    • Part No: 9910961770
    • Qty Req: 4
    Our price: $13.67 List price: $14.84
  • Key
    • Ref No: 23
    • Part No: 9910650990
    • Qty Req: 1
    Our price: $14.57 List price: $17.48
  • Gasket
    • Ref No: 24
    • Part No: 9910620950
    • Qty Req: 1
    Our price: $3.69 List price: $4.40
  • Gasket
    • Ref No: 25
    • Part No: 9910650270
    • Qty Req: 1
    Our price: $3.44 List price: $4.41
  • Old Style Gear
    • Ref No: 27
    • Part No: 9910620980
    • Qty Req: 1
    Our price: $359.65 List price: $429.00
  • Pinion Gear
    • Ref No: 28
    • Part No: 9910650400
    • Qty Req: 1
    Our price: $273.43 List price: $354.99
