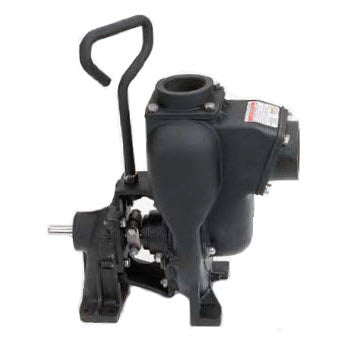

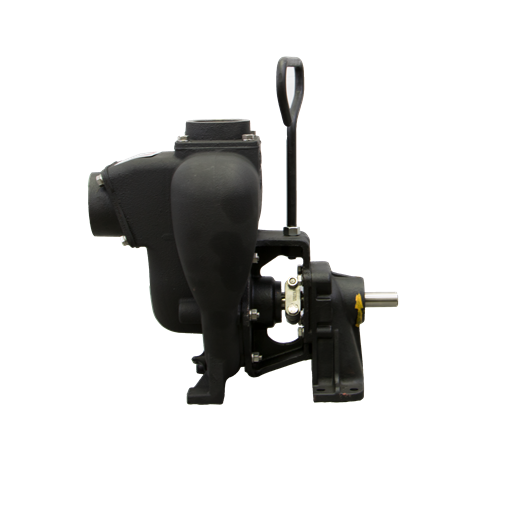

200PBI 2" Self Priming Bearing Pedestal Pump w 3/4" Straight Shaft

200PBI 2" Self Priming Bearing Pedestal Pump w 3/4" Straight Shaft

Brand:
Banjo
Weight:
45.0 lb
Item #
200PBI
1 1

200PBI 2" Self Priming Bearing Pedestal Pump w 3/4" Straight Shaft

200PBI 2" Self Priming Bearing Pedestal Pump w 3/4" Straight Shaft

Brand:
Banjo
Weight:
45.0 lb
Item #
200PBI

$566.73
$566.73 List Price: $1,333.49

Earn 1,700 points with this purchase.

See Details

View full details

Product Overview

200PBI 2" Self Priming Bearing Pedestal Pump with 3/4" Straight Shaft

170 gpm, 40 psi. 2" NPT Inlet/Outlet.

Pedestal pump for long coupling to electric motor.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Threaded Flange
    • Ref No: 1
    • Part No: 17000
    • Qty Req: 1
    Our price: $25.09 List price: $50.17
  • 2" Manifold Flange
    • Ref No: 1
    • Part No: M17000
    • Qty Req: 1
    Our price: $29.99 List price: $59.98
  • 2" Threaded Flange
    • Ref No: 2
    • Part No: 17002
    • Qty Req: 1
    Our price: $34.95 List price: $69.90
  • 2" Manifold Inlet Flange
    • Ref No: 2
    • Part No: M17002
    • Qty Req: 1
    Our price: $28.01 List price: $56.02
  • Adapter for Gas Engine
    • Ref No: 3
    • Part No: 17004
    • Qty Req: 1
    Our price: $84.20 List price: $168.39
  • C-Flange Adapter
    • Ref No: 3
    • Part No: 17046
    • Qty Req: 1
    Our price: $132.36 List price: $264.72
  • 5/8" Sleeve Drive for Electric Motor
    • Ref No: 4
    • Part No: 17005
    • Qty Req: 1
    Our price: $91.85 List price: $183.70
  • 3/4" Drive Sleeve
    • Ref No: 4
    • Part No: 17006
    • Qty Req: 1
    Our price: $76.41 List price: $152.82
  • 7/8" Sleeve Drive for Electric Motor
    • Ref No: 4
    • Part No: 17007
    • Qty Req: 1
    Our price: $76.41 List price: $152.82
  • 5" Impeller
    • Ref No: 5
    • Part No: 17008
    • Qty Req: 1
    Our price: $59.61 List price: $119.21
  • 4.6" Trimmed Impeller
    • Ref No: 5
    • Part No: 1700846
    • Qty Req: 1
    Our price: $38.03 List price: $76.06
  • 4.1" Trimmed Impeller
    • Ref No: 5
    • Part No: 1700841
    • Qty Req: 1
    Our price: $59.61 List price: $119.21
  • 1/2" Jam Nut
    • Ref No: 6
    • Part No: 17010
    • Qty Req: 1
    Our price: $1.08 List price: $2.16
  • Wear Plate
    • Ref No: 7
    • Part No: 17011
    • Qty Req: 1
    Our price: $31.22 List price: $62.43
  • Gasket
    • Ref No: 8
    • Part No: 17013
    • Qty Req: 1
    Our price: $5.73 List price: $11.45
  • Gasket
    • Ref No: 9
    • Part No: 17016
    • Qty Req: 1
    Our price: $17.17 List price: $34.34
  • Gasket
    • Ref No: 10
    • Part No: 17018
    • Qty Req: 1
    Our price: $5.73 List price: $11.45
  • Handle
    • Ref No: 11
    • Part No: 15022
    • Qty Req: 1
    Our price: $11.45 List price: $22.89
  • 5/8" Clamp for 3/4" Shaft Assembly (Old Style)
    • Ref No: 12
    • Part No: 17023
    • Qty Req: 1
    Our price: $36.55 List price: $73.09
  • 5/8" Clamp for 3/4" Shaft Assembly (Keyed)
    • Ref No: 12
    • Part No: 17123
    • Qty Req: 1
    Our price: $43.92 List price: $87.84
  • 7/8" Clamp for Shaft Assembly
    • Ref No: 12
    • Part No: 17024
    • Qty Req: 1
    Our price: $43.64 List price: $87.28
  • Pump Housing
    • Ref No: 13
    • Part No: 17026
    • Qty Req: 1
    Our price: $191.02 List price: $382.04
  • 5/16" Lock Washer
    • Ref No: 14
    • Part No: V10118
    • Qty Req: 18
    Our price: $0.83 List price: $1.65
  • SS Hex Nut
    • Ref No: 15
    • Part No: V10119
    • Qty Req: 6
    Our price: $0.83 List price: $1.65
  • Bearing Pedestal Assembly
    • Ref No: 16
    • Part No: 12882A
    • Qty Req: 1
    Our price: $170.73 List price: $341.45
  • Cap Screw
    • Ref No: 17
    • Part No: 17040
    • Qty Req: 4
    Our price: $3.14 List price: $6.28
  • EPDM Seal Assembly
    • Ref No: 18
    • Part No: 17028
    • Qty Req: 1
    Our price: $58.08 List price: $116.15
  • Severe Duty Seal
    • Ref No: 18
    • Part No: 17035SD
    • Qty Req: 1
    Our price: $313.29 List price: $626.58
  • Stud
    • Ref No: 19
    • Part No: 17042
    • Qty Req: 6
    Our price: $1.69 List price: $3.37
  • Screw
    • Ref No: 20
    • Part No: 17019
    • Qty Req: 8
    Our price: $1.08 List price: $2.16
  • 5/8" Impeller Nut
    • Ref No: 21
    • Part No: 17009B
    • Qty Req: 1
    Our price: $7.98 List price: $15.96
  • Screw
    • Ref No: 22
    • Part No: 17130
    • Qty Req: 2
    Our price: $2.07 List price: $4.13
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 23
    • Part No: 12777
    • Qty Req: 1
    Our price: $2.28 List price: $4.56
