200PIH-5 2" Self Priming Cast Iron w/ 5.5 Honda

200PIH-5 2" Self Priming Cast Iron w/ 5.5 Honda

Brand:
Banjo
Weight:
150.0 lb
Item #
200PIH5
1 1

200PIH-5 2" Self Priming Cast Iron w/ 5.5 Honda

200PIH-5 2" Self Priming Cast Iron w/ 5.5 Honda

Brand:
Banjo
Weight:
150.0 lb
Item #
200PIH5

$1,182.44
$1,182.44 List Price: $2,782.20

Earn 3,547 points with this purchase.

See Details

View full details

Product Overview

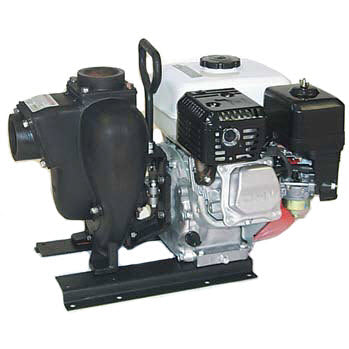

200PIH-5 Banjo 200 Series 2" Self Priming Cast Iron w/ 5.5 HP Honda Engine

190 gpm, 45 psi. 2" NPT Inlet/Outlet

Features:

-Cast iron construction for rugged dependable service

-Stainless steel shaft sleeve to protect engine shaft

-Carbon ceramic seal with stainless steel cup and spring with FKM (Viton) rubber

-Replaceable inlet and outlet flanges

-Dynamically balanced impeller

**Truck Shipments Only**

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Threaded Flange
    • Ref No: 1
    • Part No: 17000
    • Qty Req: 1
    Our price: $23.08 List price: $46.16
  • 2" Manifold Flange
    • Ref No: 1
    • Part No: M17000
    • Qty Req: 1
    Our price: $27.60 List price: $55.19
  • 2" Threaded Flange
    • Ref No: 2
    • Part No: 17002
    • Qty Req: 1
    Our price: $32.16 List price: $64.32
  • 2" Manifold Inlet Flange
    • Ref No: 2
    • Part No: M17002
    • Qty Req: 1
    Our price: $25.78 List price: $51.55
  • Adapter for Gas Engine
    • Ref No: 3
    • Part No: 17004
    • Qty Req: 1
    Our price: $77.48 List price: $154.95
  • C-Flange Adapter
    • Ref No: 3
    • Part No: 17046
    • Qty Req: 1
    Our price: $121.79 List price: $243.58
  • 5/8" Sleeve Drive for Electric Motor
    • Ref No: 4
    • Part No: 17005
    • Qty Req: 1
    Our price: $84.52 List price: $169.03
  • 3/4" Drive Sleeve
    • Ref No: 4
    • Part No: 17006
    • Qty Req: 1
    Our price: $70.31 List price: $140.62
  • 7/8" Sleeve Drive for Electric Motor
    • Ref No: 4
    • Part No: 17007
    • Qty Req: 1
    Our price: $70.31 List price: $140.62
  • 5" Impeller
    • Ref No: 5
    • Part No: 17008
    • Qty Req: 1
    Our price: $54.85 List price: $109.69
  • 4.6" Trimmed Impeller
    • Ref No: 5
    • Part No: 1700846
    • Qty Req: 1
    Our price: $54.98 List price: $91.64
  • 4.1" Trimmed Impeller
    • Ref No: 5
    • Part No: 1700841
    • Qty Req: 1
    Our price: $54.85 List price: $109.69
  • 1/2" Jam Nut
    • Ref No: 6
    • Part No: 17010
    • Qty Req: 1
    Our price: $1.00 List price: $1.99
  • Wear Plate
    • Ref No: 7
    • Part No: 17011
    • Qty Req: 1
    Our price: $28.73 List price: $57.45
  • Gasket
    • Ref No: 8
    • Part No: 17013
    • Qty Req: 1
    Our price: $5.27 List price: $10.53
  • Gasket
    • Ref No: 9
    • Part No: 17016
    • Qty Req: 1
    Our price: $15.80 List price: $31.59
  • Gasket
    • Ref No: 10
    • Part No: 17018
    • Qty Req: 1
    Our price: $5.27 List price: $10.53
  • Handle
    • Ref No: 11
    • Part No: 15022
    • Qty Req: 1
    Our price: $10.53 List price: $21.06
  • 5/8" Clamp for 3/4" Shaft Assembly (Old Style)
    • Ref No: 12
    • Part No: 17023
    • Qty Req: 1
    Our price: $33.63 List price: $67.26
  • 5/8" Clamp for 3/4" Shaft Assembly (Keyed)
    • Ref No: 12
    • Part No: 17123
    • Qty Req: 1
    Our price: $40.42 List price: $80.83
  • 7/8" Clamp for Shaft Assembly
    • Ref No: 12
    • Part No: 17024
    • Qty Req: 1
    Our price: $40.16 List price: $80.31
  • Pump Housing
    • Ref No: 13
    • Part No: 17026
    • Qty Req: 1
    Our price: $175.78 List price: $351.55
  • 5/16" Lock Washer
    • Ref No: 14
    • Part No: V10118
    • Qty Req: 18
    Our price: $0.76 List price: $1.52
  • SS Hex Nut
    • Ref No: 15
    • Part No: V10119
    • Qty Req: 6
    Our price: $0.76 List price: $1.52
  • Bearing Pedestal Assembly
    • Ref No: 16
    • Part No: 12882A
    • Qty Req: 1
    Our price: $157.10 List price: $314.19
  • Cap Screw
    • Ref No: 17
    • Part No: 17040
    • Qty Req: 4
    Our price: $2.89 List price: $5.78
  • EPDM Seal Assembly
    • Ref No: 18
    • Part No: 17028
    • Qty Req: 1
    Our price: $53.44 List price: $106.88
  • Severe Duty Seal
    • Ref No: 18
    • Part No: 17035SD
    • Qty Req: 1
    Our price: $288.28 List price: $576.56
  • Stud
    • Ref No: 19
    • Part No: 17042
    • Qty Req: 6
    Our price: $1.55 List price: $3.10
  • Screw
    • Ref No: 20
    • Part No: 17019
    • Qty Req: 8
    Our price: $1.00 List price: $1.99
  • 5/8" Impeller Nut
    • Ref No: 21
    • Part No: 17009B
    • Qty Req: 1
    Our price: $7.35 List price: $14.69
  • Screw
    • Ref No: 22
    • Part No: 17130
    • Qty Req: 2
    Our price: $1.90 List price: $3.80
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 23
    • Part No: 12777
    • Qty Req: 1
    Our price: $2.13 List price: $4.26
