200PIH5E 2" Self Priming Cast Iron w/ 5.5 Electric Start Honda

200PIH5E 2" Self Priming Cast Iron w/ 5.5 Electric Start Honda

Brand:
Banjo
Weight:
150.0 lb
Item #
200PIH5E
Skip to product information
1 of 1

200PIH5E 2" Self Priming Cast Iron w/ 5.5 Electric Start Honda

200PIH5E 2" Self Priming Cast Iron w/ 5.5 Electric Start Honda

Brand:
Banjo
Weight:
150.0 lb
Item #
200PIH5E

Regular price $1,719.99
Sale price $1,719.99 Regular price List Price: $4,047.03

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 5,160 points with this purchase.

View full details

Collapsible content

Product Overview

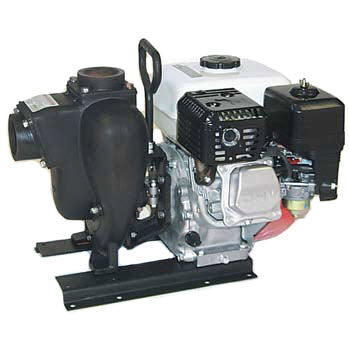

200PIH5E Banjo 200 Series 2" Self Priming Cast Iron w/ 5.5 HP Electric Start Honda Engine

190 gpm, 45 psi. 2" NPT Inlet/Outlet

Features:

-Cast iron construction for rugged dependable service

-Stainless steel shaft sleeve to protect engine shaft

-Carbon ceramic seal with stainless steel cup and spring with FKM (Viton) rubber

-Replaceable inlet and outlet flanges

-Dynamically balanced impeller

**Truck Shipments Only**

Parts breakdown

Diagram

Diagram parts

Parts list

  • Threaded Flange
    • Ref No: 1
    • Part No: 17000
    • Qty Req: 1
    Our price: $25.09 List price: $50.17
  • 2" Manifold Flange
    • Ref No: 1
    • Part No: M17000
    • Qty Req: 1
    Our price: $29.99 List price: $59.98
  • 2" Threaded Flange
    • Ref No: 2
    • Part No: 17002
    • Qty Req: 1
    Our price: $34.95 List price: $69.90
  • 2" Manifold Inlet Flange
    • Ref No: 2
    • Part No: M17002
    • Qty Req: 1
    Our price: $28.01 List price: $56.02
  • Adapter for Gas Engine
    • Ref No: 3
    • Part No: 17004
    • Qty Req: 1
    Our price: $84.20 List price: $168.39
  • C-Flange Adapter
    • Ref No: 3
    • Part No: 17046
    • Qty Req: 1
    Our price: $132.36 List price: $264.72
  • 5/8" Sleeve Drive for Electric Motor
    • Ref No: 4
    • Part No: 17005
    • Qty Req: 1
    Our price: $91.85 List price: $183.70
  • 3/4" Drive Sleeve
    • Ref No: 4
    • Part No: 17006
    • Qty Req: 1
    Our price: $76.41 List price: $152.82
  • 7/8" Sleeve Drive for Electric Motor
    • Ref No: 4
    • Part No: 17007
    • Qty Req: 1
    Our price: $76.41 List price: $152.82
  • 5" Impeller
    • Ref No: 5
    • Part No: 17008
    • Qty Req: 1
    Our price: $59.61 List price: $119.21
  • 4.6" Trimmed Impeller
    • Ref No: 5
    • Part No: 1700846
    • Qty Req: 1
    Our price: $38.03 List price: $76.06
  • 4.1" Trimmed Impeller
    • Ref No: 5
    • Part No: 1700841
    • Qty Req: 1
    Our price: $59.61 List price: $119.21
  • 1/2" Jam Nut
    • Ref No: 6
    • Part No: 17010
    • Qty Req: 1
    Our price: $1.08 List price: $2.16
  • Wear Plate
    • Ref No: 7
    • Part No: 17011
    • Qty Req: 1
    Our price: $31.22 List price: $62.43
  • Gasket
    • Ref No: 8
    • Part No: 17013
    • Qty Req: 1
    Our price: $5.73 List price: $11.45
  • Gasket
    • Ref No: 9
    • Part No: 17016
    • Qty Req: 1
    Our price: $17.17 List price: $34.34
  • Gasket
    • Ref No: 10
    • Part No: 17018
    • Qty Req: 1
    Our price: $5.73 List price: $11.45
  • Handle
    • Ref No: 11
    • Part No: 15022
    • Qty Req: 1
    Our price: $11.45 List price: $22.89
  • 5/8" Clamp for 3/4" Shaft Assembly (Old Style)
    • Ref No: 12
    • Part No: 17023
    • Qty Req: 1
    Our price: $36.55 List price: $73.09
  • 5/8" Clamp for 3/4" Shaft Assembly (Keyed)
    • Ref No: 12
    • Part No: 17123
    • Qty Req: 1
    Our price: $43.92 List price: $87.84
  • 7/8" Clamp for Shaft Assembly
    • Ref No: 12
    • Part No: 17024
    • Qty Req: 1
    Our price: $43.64 List price: $87.28
  • Pump Housing
    • Ref No: 13
    • Part No: 17026
    • Qty Req: 1
    Our price: $191.02 List price: $382.04
  • 5/16" Lock Washer
    • Ref No: 14
    • Part No: V10118
    • Qty Req: 18
    Our price: $0.83 List price: $1.65
  • SS Hex Nut
    • Ref No: 15
    • Part No: V10119
    • Qty Req: 6
    Our price: $0.83 List price: $1.65
  • Bearing Pedestal Assembly
    • Ref No: 16
    • Part No: 12882A
    • Qty Req: 1
    Our price: $170.73 List price: $341.45
  • Cap Screw
    • Ref No: 17
    • Part No: 17040
    • Qty Req: 4
    Our price: $3.14 List price: $6.28
  • EPDM Seal Assembly
    • Ref No: 18
    • Part No: 17028
    • Qty Req: 1
    Our price: $58.08 List price: $116.15
  • Severe Duty Seal
    • Ref No: 18
    • Part No: 17035SD
    • Qty Req: 1
    Our price: $313.29 List price: $626.58
  • Stud
    • Ref No: 19
    • Part No: 17042
    • Qty Req: 6
    Our price: $1.69 List price: $3.37
  • Screw
    • Ref No: 20
    • Part No: 17019
    • Qty Req: 8
    Our price: $1.08 List price: $2.16
  • 5/8" Impeller Nut
    • Ref No: 21
    • Part No: 17009B
    • Qty Req: 1
    Our price: $7.98 List price: $15.96
  • Screw
    • Ref No: 22
    • Part No: 17130
    • Qty Req: 2
    Our price: $2.07 List price: $4.13
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 23
    • Part No: 12777
    • Qty Req: 1
    Our price: $2.28 List price: $4.56
