2" Poly w/ 5.5 HP Electric Start Honda

2" Poly w/ 5.5 HP Electric Start Honda

Brand:
Banjo
Weight:
75.0 lb
Item #
200PH5E
1 1

2" Poly w/ 5.5 HP Electric Start Honda

2" Poly w/ 5.5 HP Electric Start Honda

Brand:
Banjo
Weight:
75.0 lb
Item #
200PH5E

$1,306.21
$1,306.21 List Price: $3,073.45

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,919 points with this purchase.

See Details

View full details

Product Overview

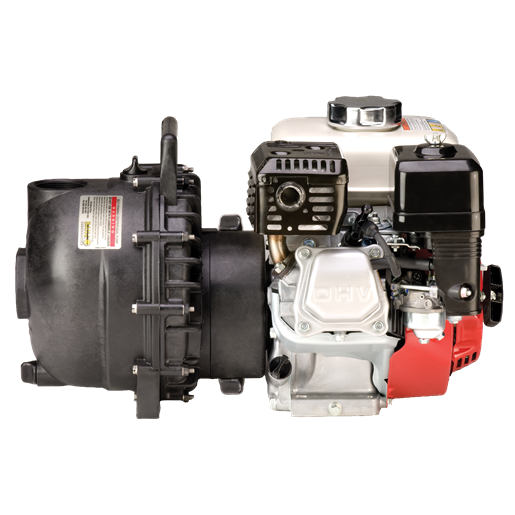

2" Poly Centrifugal Pump w/ 5.5 HP Electric Start Honda Engine.

195 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet.

Features:

-Precision Molded Construction.

-Corrosion Resistant.

-Low Maintenance.

-Lightweight, Superior Design.

-EPDM Standard, FKM (Viton type) Available.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • SS Body Nut
    • Ref No: 1
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.95 List price: $1.90
  • SS Lock Washer
    • Ref No: 2
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.90 List price: $1.80
  • Poly Pump Rear Bracket
    • Ref No: 3
    • Part No: 12703A
    • Qty Req: 1
    Our price: $76.46 List price: $152.91
  • Seal Assembly
    • Ref No: 4
    • Part No: 12713
    • Qty Req: 1
    Our price: $37.43 List price: $74.85
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 4
    • Part No: 12713V
    • Qty Req: 1
    Our price: $62.26 List price: $124.50
  • O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.80 List price: $1.59
  • FKM (Viton) O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717V
    • Qty Req: 4
    Our price: $0.97 List price: $1.93
  • SS Bracket Screw
    • Ref No: 5A
    • Part No: 12715A
    • Qty Req: 4
    Our price: $3.42 List price: $6.84
  • O-Ring Segment
    • Ref No: 6
    • Part No: 12754
    • Qty Req: 1
    Our price: $5.49 List price: $10.98
  • FKM (Viton) O-Ring Segment
    • Ref No: 6
    • Part No: 12754V
    • Qty Req: 1
    Our price: $8.86 List price: $17.71
  • Body O-Ring
    • Ref No: 7
    • Part No: 12719A
    • Qty Req: 1
    Our price: $12.51 List price: $25.02
  • FKM (Viton) Body O-Ring
    • Ref No: 7
    • Part No: 12719AV
    • Qty Req: 1
    Our price: $58.25 List price: $116.49
  • 5 Vane Impeller
    • Ref No: 8
    • Part No: 12772
    • Qty Req: 1
    Our price: $35.87 List price: $71.72
  • SS Impeller Bolt
    • Ref No: 9
    • Part No: 12765A
    • Qty Req: 1
    Our price: $17.02 List price: $34.01
  • Impeller Bolt Gasket
    • Ref No: 10
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.40 List price: $2.78
  • Impeller Hex Nut
    • Ref No: 11
    • Part No: 12775A
    • Qty Req: 1
    Our price: $13.51 List price: $27.01
  • Poly Pump Volute
    • Ref No: 12
    • Part No: 12702A
    • Qty Req: 1
    Our price: $57.55 List price: $115.08
  • SS Volute Screw
    • Ref No: 13
    • Part No: 12725
    • Qty Req: 2
    Our price: $3.23 List price: $6.46
  • Poly Pump Check Valve
    • Ref No: 14
    • Part No: 12705
    • Qty Req: 1
    Our price: $13.81 List price: $27.60
  • FKM (Viton) Poly Pump Check Valve
    • Ref No: 14
    • Part No: 12705V
    • Qty Req: 1
    Our price: $94.58 List price: $189.15
  • Body Assembly
    • Ref No: 15
    • Part No: 12712A
    • Qty Req: 1
    Our price: $118.22 List price: $236.43
  • SS Body Screw
    • Ref No: 16
    • Part No: 12720
    • Qty Req: 10
    Our price: $3.57 List price: $7.14
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 17
    • Part No: 12777
    • Qty Req: 2
    Our price: $2.45 List price: $4.89
  • Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: UV15163
    • Qty Req: 2
    Our price: $0.88 List price: $1.75
  • 1"-1/4" Viton O-Ring for Drain Plug
    • Ref No: 18
    • Part No: UV15163V
    • Qty Req: 2
    Our price: $3.73 List price: $7.43
  • SS Upper Volute Screw
    • Ref No: 19
    • Part No: 12900
    • Qty Req: 4
    Our price: $1.35 List price: $2.69
  • SS Rear Bracket Washer
    • Ref No: 20
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.88 List price: $1.76
  • Impeller Key
    • Ref No: 21
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.66 List price: $3.32
  • Poly Pump Slinger
    • Ref No: 22
    • Part No: 12716
    • Qty Req: 1
    Our price: $5.14 List price: $10.26
  • O-Ring for Seal Assembly
    • Ref No: 23
    • Part No: 12710
    • Qty Req: 1
    Our price: $3.46 List price: $6.91
  • FKM (Viton) O-Ring for Seal Assembly
    • Ref No: 23
    • Part No: 12710V
    • Qty Req: 1
    Our price: $8.86 List price: $17.71
