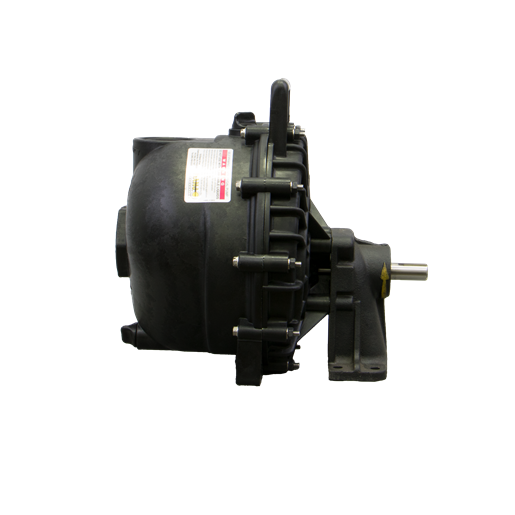

2" Centrifugal Poly Pump (5 Vane Impeller) Bearing Pedestal w/ 3/4" Shaft

2" Centrifugal Poly Pump (5 Vane Impeller) Bearing Pedestal w/ 3/4" Shaft

Brand:
Banjo
Weight:
20.0 lb
Item #
205PB
  • 2" Centrifugal Poly Pump (5 Vane Impeller) Bearing Pedestal w/ 3/4" Shaft
1 1

2" Centrifugal Poly Pump (5 Vane Impeller) Bearing Pedestal w/ 3/4" Shaft

2" Centrifugal Poly Pump (5 Vane Impeller) Bearing Pedestal w/ 3/4" Shaft

Brand:
Banjo
Weight:
20.0 lb
Item #
205PB

$376.00
$376.00 List Price: $884.71

Earn 1,128 points with this purchase.

See Details

View full details

Product Overview

2" Centrifugal Poly Pump, Bearing Pedestal w/ 3/4" Shaft & 5 Vane Impeller

195 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet. 3450 RPM.

Resources

Download Product Manual

Features

  • ¾" Straight shaft w/ key
  • Pedestal pump
  • Mounted on metal base
  • 5-Vane impeller
  • Precision molded
  • Lightweight
  • Corrosion resistant
  • Superior design
  • Low maintenance
  • Easily adaptable to electric power
  • Flexible shaft coupling between motor and pump

Parts breakdown

Diagram

Diagram parts

Parts list

  • SS Body Nut
    • Ref No: 1
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.98 List price: $1.95
  • SS Lock Washer
    • Ref No: 2
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.93 List price: $1.85
  • Poly Pump Rear Bracket
    • Ref No: 3
    • Part No: 12703A
    • Qty Req: 1
    Our price: $83.52 List price: $167.01
  • Seal Assembly
    • Ref No: 4
    • Part No: 12713
    • Qty Req: 1
    Our price: $37.99 List price: $75.97
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 4
    • Part No: 12713V
    • Qty Req: 1
    Our price: $63.19 List price: $109.80
  • O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.81 List price: $1.61
  • FKM (Viton) O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717V
    • Qty Req: 4
    Our price: $1.00 List price: $1.98
  • SS Bracket Screw
    • Ref No: 5A
    • Part No: 12715A
    • Qty Req: 4
    Our price: $3.51 List price: $7.01
  • O-Ring Segment
    • Ref No: 6
    • Part No: 12754
    • Qty Req: 1
    Our price: $5.57 List price: $11.14
  • FKM (Viton) O-Ring Segment
    • Ref No: 6
    • Part No: 12754V
    • Qty Req: 1
    Our price: $8.99 List price: $17.73
  • Body O-Ring
    • Ref No: 7
    • Part No: 12719A
    • Qty Req: 1
    Our price: $12.83 List price: $25.65
  • FKM (Viton) Body O-Ring
    • Ref No: 7
    • Part No: 12719AV
    • Qty Req: 1
    Our price: $59.12 List price: $116.64
  • 5 Vane Impeller
    • Ref No: 8
    • Part No: 12772
    • Qty Req: 1
    Our price: $36.41 List price: $72.80
  • SS Impeller Bolt
    • Ref No: 9
    • Part No: 12765A
    • Qty Req: 1
    Our price: $25.37 List price: $33.24
  • Impeller Bolt Gasket
    • Ref No: 10
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.44 List price: $2.85
  • Impeller Hex Nut
    • Ref No: 11
    • Part No: 12775A
    • Qty Req: 1
    Our price: $13.71 List price: $26.40
  • Poly Pump Volute
    • Ref No: 12
    • Part No: 12702A
    • Qty Req: 1
    Our price: $59.00 List price: $117.97
  • SS Volute Screw
    • Ref No: 13
    • Part No: 12725
    • Qty Req: 2
    Our price: $3.28 List price: $6.56
  • Poly Pump Check Valve
    • Ref No: 14
    • Part No: 12705
    • Qty Req: 1
    Our price: $14.02 List price: $28.01
  • FKM (Viton) Poly Pump Check Valve
    • Ref No: 14
    • Part No: 12705V
    • Qty Req: 1
    Our price: $96.97 List price: $193.91
  • Body Assembly
    • Ref No: 15
    • Part No: 12712A
    • Qty Req: 1
    Our price: $127.25 List price: $254.49
  • SS Body Screw
    • Ref No: 16
    • Part No: 12720
    • Qty Req: 10
    Our price: $3.63 List price: $7.25
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 17
    • Part No: 12777
    • Qty Req: 2
    Our price: $2.49 List price: $4.96
  • Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: UV15163
    • Qty Req: 2
    Our price: $0.91 List price: $1.80
  • 1"-1/4" Viton O-Ring for Drain Plug
    • Ref No: 18
    • Part No: UV15163V
    • Qty Req: 2
    Our price: $3.79 List price: $7.44
  • SS Upper Volute Screw
    • Ref No: 19
    • Part No: 12900
    • Qty Req: 4
    Our price: $1.37 List price: $2.73
  • SS Rear Bracket Washer
    • Ref No: 20
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.90 List price: $1.79
  • Impeller Key
    • Ref No: 21
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.71 List price: $3.40
  • Poly Pump Slinger
    • Ref No: 22
    • Part No: 12716
    • Qty Req: 1
    Our price: $5.22 List price: $10.41
  • O-Ring for Seal Assembly
    • Ref No: 23
    • Part No: 12710
    • Qty Req: 1
    Our price: $3.51 List price: $7.01
  • FKM (Viton) O-Ring for Seal Assembly
    • Ref No: 23
    • Part No: 12710V
    • Qty Req: 1
    Our price: $8.99 List price: $17.73
