2

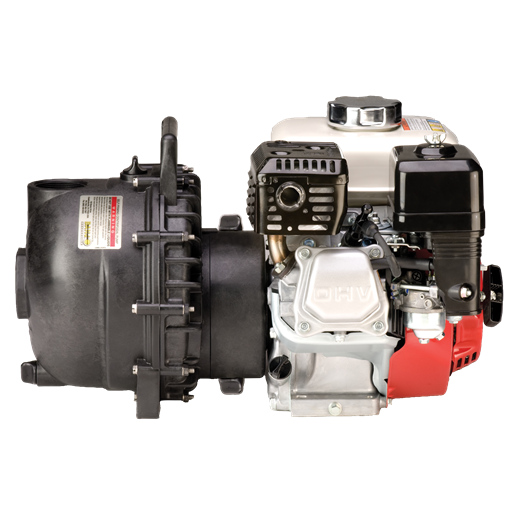

2" Poly (FKM Viton & 316 SS Seal) w/ 5.5 Hp Honda Engine

Item Code:
200PH5V
Weight:
40.0 lb
Manufacturer:
Banjo
Our price:
$1,022.19
List price:
$2,405.15
Overview:

2" Poly Pump w/ 5.5 Hp Honda Engine and FKM (Viton type) & 316 SS Seal

195 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet.

Features:

-Precision Molded Construction.

-Corrosion Resistant.

-Low Maintenance.

-Lightweight, Superior Design.

Download Product Manual

Parts breakdown

Parts breakdown parts

Parts list

SS Body Nut

  • Ref No: 1
  • Part No: V07019
  • Qty Req: 10
Our price: $0.74 List price: $1.48

SS Lock Washer

  • Ref No: 2
  • Part No: V07018
  • Qty Req: 10
Our price: $0.74 List price: $1.48

SS Bracket Screw

  • Ref No: 5A
  • Part No: 12715A
  • Qty Req: 4
Our price: $2.67 List price: $5.33

5 Vane Impeller

  • Ref No: 8
  • Part No: 12772
  • Qty Req: 1
Our price: $29.57 List price: $59.13

SS Impeller Bolt

  • Ref No: 9
  • Part No: 12765A
  • Qty Req: 1
Our price: $12.68 List price: $25.35

Impeller Bolt Gasket

  • Ref No: 10
  • Part No: 12774VA
  • Qty Req: 1
Our price: $1.15 List price: $2.29

Impeller Hex Nut

  • Ref No: 11
  • Part No: 12775A
  • Qty Req: 1
Our price: $10.07 List price: $20.13

Poly Pump Volute

  • Ref No: 12
  • Part No: 12702A
  • Qty Req: 1
Our price: $47.44 List price: $94.88

SS Volute Screw

  • Ref No: 13
  • Part No: 12725
  • Qty Req: 2
Our price: $2.67 List price: $5.33

Body Assembly

  • Ref No: 15
  • Part No: 12712A
  • Qty Req: 1
Our price: $97.47 List price: $194.93

SS Body Screw

  • Ref No: 16
  • Part No: 12720
  • Qty Req: 10
Our price: $2.67 List price: $5.33

Impeller Key

  • Ref No: 21
  • Part No: 12902A
  • Qty Req: 1
Our price: $1.29 List price: $2.58

Poly Pump Slinger

  • Ref No: 22
  • Part No: 12716
  • Qty Req: 1
Our price: $4.23 List price: $8.45
