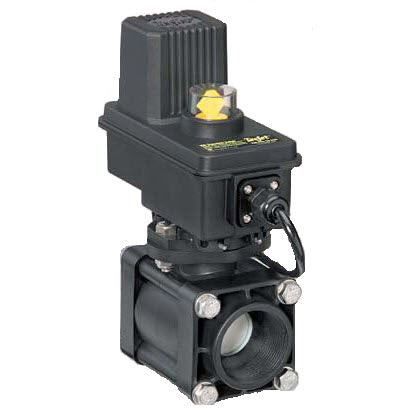

1-1/2" 12V 2 Way Electric Shutoff Valve

Item Code:
5.0 lb
Spraying Systems Company/Teejet
Our price:
List price:

1-1/2" NPT Outlet Threads, 12 VDC 2-Way Valve, Polypropylene Ball, Positively Switched w/ 0.5-Meter Cable.

DirectoValve 346 Series Electric Shutoff Valve from Spraying Systems/TeeJet.

346B shutoff ball valves are available with E or EC Series motors and with cable or DIN electrical connections.


-25 RPM, 0.6 second shutoff fully open to close.

-Flexible inlet/outlets provide quick simple plumbing for a single valve.

-Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.

-Polypropylene ball with stainless steel stem.

-Maximum pressure rating is 150 psi (20 bar).

-The flow rate for the 346BEC 2-way valve is 100 GPM (379 l/min) flow rate with a 5 psi (0.34 bar) pressure drop.

-The flow rate for the 346BEC 3-way valve is 64 GPM (242 l/min) with a 5 psi (0.34 bar) pressure drop.

-Available with 1-1/4",

Parts breakdown
