Udor RO-160/CC Diaphragm Pump (Replaced by ZETA-170/CC)

Udor RO-160/CC Diaphragm Pump (Replaced by ZETA-170/CC)

Brand:
Udor
Weight:
58.0 lb
Item #
RO160CC
1 review
Skip to product information
1 of 1

Udor RO-160/CC Diaphragm Pump (Replaced by ZETA-170/CC)

Udor RO-160/CC Diaphragm Pump (Replaced by ZETA-170/CC)

Brand:
Udor
Weight:
58.0 lb
Item #
RO160CC
1 review

Regular price $1,708.91
Sale price $1,708.91 Regular price List Price: $3,107.10

Earn 5,127 points with this purchase.

View full details

Collapsible content

Product Overview

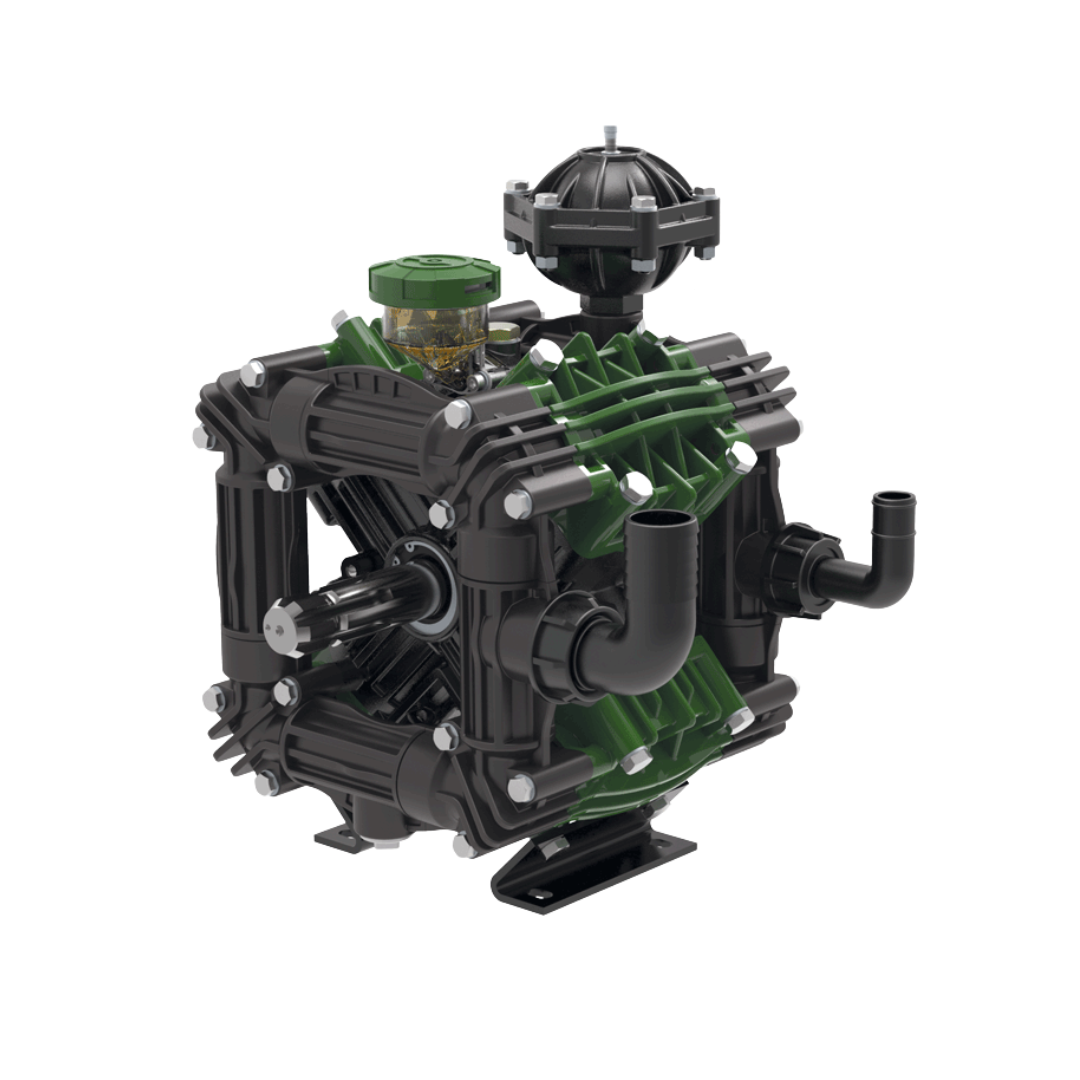

The Udor RO-160/CC Diaphragm Pump is a six diaphragm, low-pressure pump with a dual six-spline male PTO shaft, pulsation dampener, and mounting rails. The unit handles easily, making it an excellent choice for a variety of horticultural and agricultural spraying applications, including pest and weed control, fluid transfer, dust suppression, lawn care, de-icing materials, liquid fertilizers, and other hard-to-handle fluids.

Manufacturer description

**Replaced by ZETA-170/CC** Four diaphragm pump with pulsation dampener, mounting rails & a dual 1-3/8", six spline male PTO shaft. UDOR RO Series Pumps Have Plasticized Aluminum Heads And Glass Filled Nylon Manifolds. Control Units Not Included. RO-160 low pressure diaphragm pumps are excellent for various horticultural and agricultural spraying applications. Simplicity of design and common parts allow easy and affordable maintenance. Liquid handling parts are plasticized aluminum, glass-filled nylon and stainless steel. Built-in pulsation dampener is standard on all models. Standard RO-160 comes with a 1-3/8" six splined male PTO shaft. RO-160/CC comes with a dual 1-3/8" six-splined male PTO thru-shaft. Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 42 gpm
  • Max pressure: 300 psi
  • Shaft: Dual 1-3/8" 6-spline male PTO shaft
  • Port sizes: 1-1/2" HB inlet, 1" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 56 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Connecting Rod Ring
    • Ref No: 6
    • Part No: 000108
    • Qty Req: 2
    Our price: $59.84 List price: $72.10
  • Crankcase
    • Ref No: 43
    • Part No: 000229
    • Qty Req: 1
    Our price: $603.74 List price: $727.40
  • Crankshaft (RO-160)
    • Ref No: 58
    • Part No: 000246
    • Qty Req: 1
    Our price: $474.76 List price: $572.00
  • Accumulator Base
    • Ref No: 81
    • Part No: 000315
    • Qty Req: 1
    Our price: $148.57 List price: $179.00
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $18.27 List price: $22.01
  • Diaphragm Bolt (BETA-150/200/240, OMEGA-140/170, RO-70/160/210/250/320)
    • Ref No: 238
    • Part No: 0010203
    • Qty Req: 4
    Our price: $18.59 List price: $22.40
  • Inlet Hose Barb (KAPPA-30/33/40/43, RO-160)
    • Ref No: 357
    • Part No: 020218
    • Qty Req: 1
    Our price: $15.44 List price: $18.60
  • Hose Barb Elbow (KAPPA-100, RO-160/320)
    • Ref No: 370
    • Part No: 020278
    • Qty Req: 1
    Our price: $24.73 List price: $29.80
  • Sleeve
    • Ref No: 489
    • Part No: 020614
    • Qty Req: 4
    Our price: $173.97 List price: $209.60
  • Oil Cap **Obsolete - no longer available. Must buy 603301 complete assembly**
    • Ref No: 540
    • Part No: 020898
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Accumulator Head
    • Ref No: 557
    • Part No: 020820
    • Qty Req: 1
    Our price: $92.46 List price: $111.40
  • Pump Body (RO-160)
    • Ref No: 618
    • Part No: 020925
    • Qty Req: 1
    Our price: $557.76 List price: $672.00
  • Pump Body (RO-160/CC)
    • Ref No: 619
    • Part No: 020926
    • Qty Req: 1
    Our price: $519.33 List price: $625.70
  • BEARING
    • Ref No: 738
    • Part No: 021607
    • Qty Req: 1
    Our price: $219.12 List price: $264.00
  • Air Valve Cap (KAPPA-100/120, RO-70/110/160)
    • Ref No: 747
    • Part No: 021801
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Washer (RO-160/210/250)
    • Ref No: 802
    • Part No: 0030128
    • Qty Req: 2
    Our price: $107.07 List price: $129.00
  • Spacer Ring
    • Ref No: 838
    • Part No: 030259
    • Qty Req: 2
    Our price: $11.87 List price: $14.30
  • Nut
    • Ref No: 845
    • Part No: 030301
    • Qty Req: 6
    Our price: $1.91 List price: $2.30
  • Bearing Flange (RO-160/210/250)
    • Ref No: 919
    • Part No: 050167
    • Qty Req: 1
    Our price: $144.92 List price: $174.60
  • Barb Nut
    • Ref No: 1045
    • Part No: 060432
    • Qty Req: 1
    Our price: $16.68 List price: $20.10
  • Suction Nut
    • Ref No: 1055
    • Part No: 060450
    • Qty Req: 1
    Our price: $18.09 List price: $21.80
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Air Valve Assembly
    • Ref No: 11
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Diaphragm Buna-N (Opt.)
    • Ref No: 1291
    • Part No: 090302
    • Qty Req: 4
    Our price: $31.46 List price: $37.90
  • Accumulator Diaphragm
    • Ref No: 1300
    • Part No: 090314
    • Qty Req: 1
    Our price: $27.89 List price: $33.60
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 8
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1366
    • Part No: 110102
    • Qty Req: 1
    Our price: $2.66 List price: $3.20
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 1
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1398
    • Part No: 110142
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1401
    • Part No: 110158
    • Qty Req: 1
    Our price: $9.30 List price: $11.20
  • O-Ring
    • Ref No: 1434
    • Part No: 1101D1
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • Mounting Rail
    • Ref No: 1457
    • Part No: 120229
    • Qty Req: 2
    Our price: $55.44 List price: $66.80
  • Piston
    • Ref No: 1569
    • Part No: 120506
    • Qty Req: 4
    Our price: $104.75 List price: $126.20
  • Valve Assembly
    • Ref No: 1709
    • Part No: 600608
    • Qty Req: 8
    Our price: $42.08 List price: $50.70
  • Oil Reservoir Assembly
    • Ref No: 1740
    • Part No: 603301
    • Qty Req: 1
    Our price: $68.23 List price: $82.20
  • Piston/Rod Assembly
    • Ref No: 1776
    • Part No: 601530
    • Qty Req: 4
    Our price: $216.63 List price: $261.00
  • 6031.09 Pulsation Dampener
    • Ref No: 1811
    • Part No: 603109
    • Qty Req: 1
    Our price: $258.30 List price: $311.20
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 18
    • Part No: 140309
    • Qty Req: 18
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 22
    Our price: $0.94 List price: $1.13
  • Connecting Rod Pin
    • Ref No: 1962
    • Part No: 150201
    • Qty Req: 4
    Our price: $22.00 List price: $26.50
  • Snap Ring
    • Ref No: 2046
    • Part No: 150602
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Snap Ring
    • Ref No: 2052
    • Part No: 150616
    • Qty Req: 1
    Our price: $4.90 List price: $5.90
  • Connecting Rod
    • Ref No: 2153
    • Part No: 151920
    • Qty Req: 4
    Our price: $75.28 List price: $90.70
  • Manifold
    • Ref No: 2184
    • Part No: 160112
    • Qty Req: 5
    Our price: $53.62 List price: $64.60
  • Suction Manifold
    • Ref No: 2224
    • Part No: 160220
    • Qty Req: 1
    Our price: $57.85 List price: $69.70
  • Discharge Manifold
    • Ref No: 2225
    • Part No: 160221A
    • Qty Req: 1
    Our price: $56.11 List price: $67.60
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Plug
    • Ref No: 2282
    • Part No: 160350
    • Qty Req: 1
    Our price: $8.55 List price: $10.30
  • Head
    • Ref No: 2318
    • Part No: 160436
    • Qty Req: 4
    Our price: $171.64 List price: $206.80
  • Discharge Manifold
    • Ref No: 2356
    • Part No: 160515
    • Qty Req: 1
    Our price: $57.85 List price: $69.70
  • Bolt
    • Ref No: 2465
    • Part No: 180403
    • Qty Req: 6
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2466
    • Part No: 180406
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2589
    • Part No: 180531
    • Qty Req: 2
    Our price: $1.91 List price: $2.30
  • Washer
    • Ref No: 7600
    • Part No: 140336
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Diaphragm Desmopan (Std.)
    • Ref No: 8113
    • Part No: 090334
    • Qty Req: 4
    Our price: $52.21 List price: $62.90
