Udor KAPPA-41/GR Diaphragm Pump
Udor KAPPA-41/GR Diaphragm Pump
Brand:
Udor
Weight:
28.0 lb
Item #
KAPPA41GR
Udor KAPPA-41/GR Diaphragm Pump
Udor KAPPA-41/GR Diaphragm Pump
Brand:
Udor
Weight:
28.0 lb
Item #
KAPPA41GR
Regular price
$1,105.01
Sale price
$1,105.01
Regular price
List Price:
$2,009.10
Unit price
per
Earn 3,315 points with this purchase.
Couldn't load pickup availability
Collapsible content
Product Overview

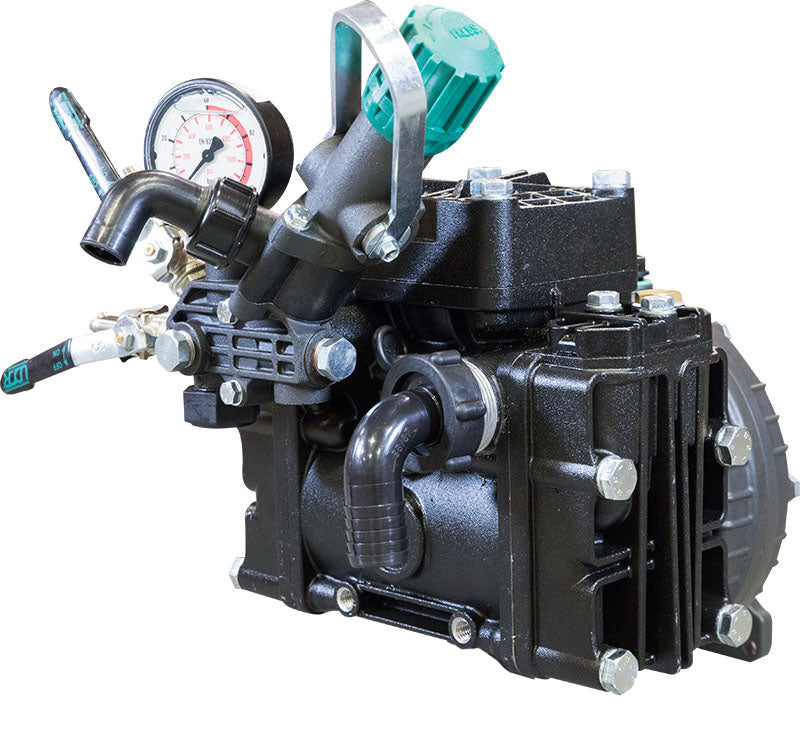

The KAPPA-41/GR two diaphragm pump from Udor allows for adjustable pressure regulation from the control unit and is ready for heavy duty use with internally manifolded anodized aluminum construction. This pump has replaced the KAPPA-40/GR With a maximum psi of 560, this pump comes complete with a pressure gauge, a manual dump lever, and dual ball valve outlets.
Manufacturer description

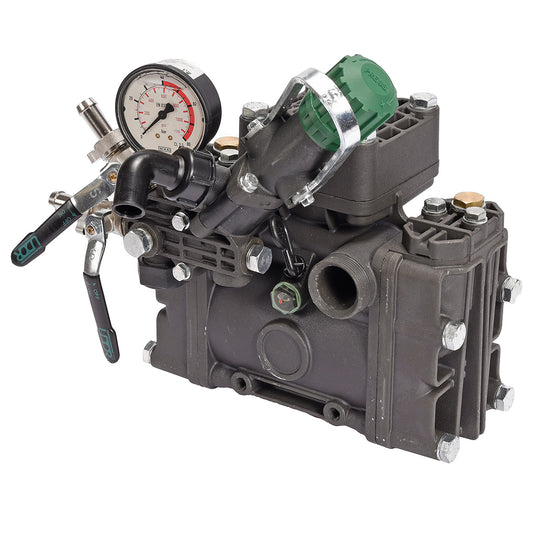

**Replaced KAPPA-40/GR**
KAPPA-41 medium pressure, 2-cylinder diaphragm pumps are excellent choices for various horticulture, agricultural, lawn care, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-41 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. "GR" version pumps include gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.
KAPPA-41 medium pressure, 2-cylinder diaphragm pumps are excellent choices for various horticulture, agricultural, lawn care, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-41 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. "GR" version pumps include gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.
Resources
Features
- Max flow: 10.5 gpm
- Max pressure: 560 psi

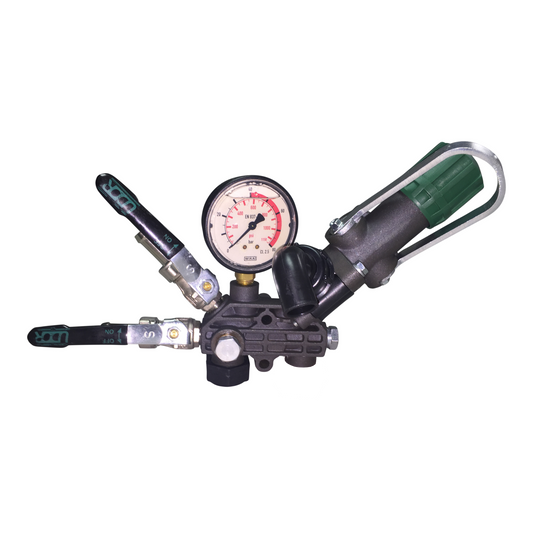

- Includes 6010.24 control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
- Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
- Pump shaft rotation: CW and CCW
- Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
- Housing: Anodized aluminum
- Max fluid temperature: 140°F
- Weight: 39 lbs
Parts breakdown
Diagram
