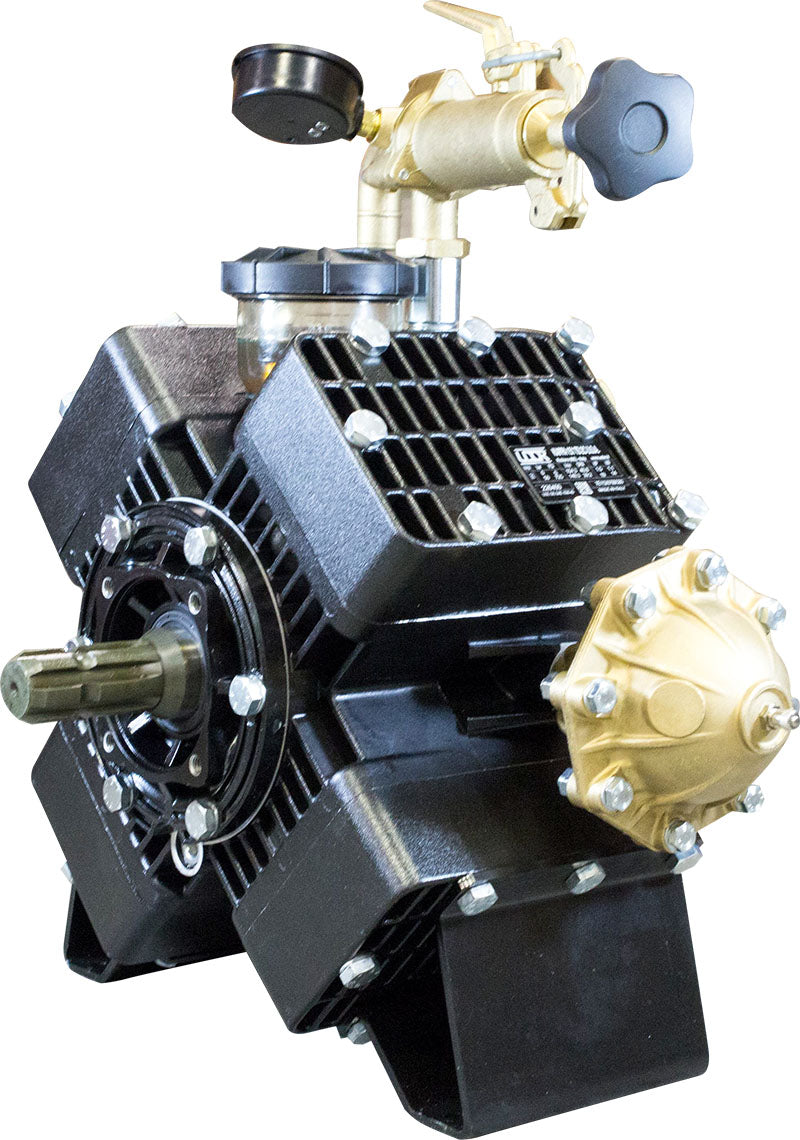

Udor KAPPA-150/CC Diaphragm Pump

Udor KAPPA-150/CC Diaphragm Pump

Brand:
Udor
Weight:
105.0 lb
Item #
KAPPA150CC
1 review
Skip to product information
1 of 1

Udor KAPPA-150/CC Diaphragm Pump

Udor KAPPA-150/CC Diaphragm Pump

Brand:
Udor
Weight:
105.0 lb
Item #
KAPPA150CC
1 review

Regular price $2,685.38
Sale price $2,685.38 Regular price List Price: $4,882.50

Earn 8,056 points with this purchase.

View full details

Collapsible content

Product Overview

The Udor KAPPA-150/CC Diaphragm Pump is a four diaphragm, high pressure, high volume pump with a control unit and pulsation dampener. The pressure gauge, adjustable pressure regulator, and manual dump lever make this unit ideal for commercial users. The thru shaft on this unit has a forward-facing six-spline male PTO shaft for use with belt and pulley for gasoline engines or can be attached directly to your PTO.

Manufacturer description

Four diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever & pressure gauge. Has dual 1-3/8", 6-spline male PTO shaft. UDOR KAPPA Series Pumps are internally manifolded with anodized aluminum Construction. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 42 gpm
  • Max pressure: 700 psi
  • Includes 6005.15 control unit and dual 1-3/8" 6-spline male PTO shafts
  • Port sizes: 1-1/2" HB inlet, 3/4" MNPT and 3/4" FNPT outlet, 1" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 105 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Connecting Rod Ring
    • Ref No: 6
    • Part No: 000108
    • Qty Req: 2
    Our price: $59.84 List price: $72.10
  • Crankshaft
    • Ref No: 18
    • Part No: 000265
    • Qty Req: 1
    Our price: $615.20 List price: $741.20
  • Accumulator Body
    • Ref No: 78
    • Part No: 000310
    • Qty Req: 1
    Our price: $243.85 List price: $293.80
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 1
    Our price: $18.27 List price: $22.01
  • Seal
    • Ref No: 172
    • Part No: 000734
    • Qty Req: 1
    Our price: $23.41 List price: $28.20
  • Diaphragm Bolt
    • Ref No: 238
    • Part No: 010203
    • Qty Req: 4
    Our price: $24.57 List price: $29.60
  • Hose Barb Elbow (BETA-150/200/240)
    • Ref No: 360
    • Part No: 020284
    • Qty Req: 1
    Our price: $88.23 List price: $106.30
  • Piston Sleeve
    • Ref No: 502
    • Part No: 020629
    • Qty Req: 4
    Our price: $190.24 List price: $229.20
  • Accumulator Head
    • Ref No: 558
    • Part No: 020821
    • Qty Req: 1
    Our price: $227.09 List price: $273.60
  • Oil Cap
    • Ref No: 559
    • Part No: 020822
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Pump Body (KAPPA-120)
    • Ref No: 631
    • Part No: 020933
    • Qty Req: 1
    Our price: $1,579.66 List price: $1,903.20
  • Bearing (KAPPA-120)
    • Ref No: 708
    • Part No: 021416
    • Qty Req: 2
    Our price: $311.91 List price: $375.80
  • Air Valve Cap (KAPPA-100/120, RO-70/110/160)
    • Ref No: 747
    • Part No: 021801
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Washer
    • Ref No: 801
    • Part No: 030107
    • Qty Req: 4
    Our price: $16.68 List price: $20.10
  • Washer (KAPPA-120)
    • Ref No: 805
    • Part No: 030134
    • Qty Req: 2
    Our price: $72.21 List price: $87.00
  • Nut
    • Ref No: 845
    • Part No: 030301
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Retainer (KAPPA-120)
    • Ref No: 885
    • Part No: 050181
    • Qty Req: 1
    Our price: $204.68 List price: $246.60
  • Flange (KAPPA-120)
    • Ref No: 886
    • Part No: 050180
    • Qty Req: 1
    Our price: $282.03 List price: $339.80
  • 3/4" MNPT Outlet
    • Ref No: 937
    • Part No: 050803K
    • Qty Req: 1
    Our price: $53.04 List price: $63.90
  • Barb Nut
    • Ref No: 1036
    • Part No: 060448
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Gasket
    • Ref No: 1078
    • Part No: 060542
    • Qty Req: 8
    Our price: $2.41 List price: $2.90
  • Air Valve Assembly
    • Ref No: 1122
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Diaphragm Buna-N (Opt.)
    • Ref No: 1291
    • Part No: 090302
    • Qty Req: 4
    Our price: $31.46 List price: $37.90
  • Accumulator Diaphragm
    • Ref No: 1301
    • Part No: 090316
    • Qty Req: 1
    Our price: $40.92 List price: $49.30
  • 3/4" Adapter Fitting
    • Ref No: 1310
    • Part No: 100104
    • Qty Req: 1
    Our price: $33.70 List price: $40.60
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 8
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1380
    • Part No: 110125
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1385
    • Part No: 110132
    • Qty Req: 1
    Our price: $6.97 List price: $8.40
  • O-Ring
    • Ref No: 1386
    • Part No: 110133
    • Qty Req: 1
    Our price: $5.56 List price: $6.70
  • O-Ring
    • Ref No: 1398
    • Part No: 110142
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1408
    • Part No: 110163
    • Qty Req: 1
    Our price: $12.45 List price: $15.00
  • O-Ring
    • Ref No: 1415
    • Part No: 110177
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1419
    • Part No: 110180
    • Qty Req: 1
    Our price: $21.08 List price: $25.40
  • O-Ring
    • Ref No: 1420
    • Part No: 110171
    • Qty Req: 1
    Our price: $10.29 List price: $12.40
  • Mounting Rail
    • Ref No: 1459
    • Part No: 120236
    • Qty Req: 2
    Our price: $56.77 List price: $68.40
  • Oil Reservoir
    • Ref No: 1492
    • Part No: 120330
    • Qty Req: 1
    Our price: $49.97 List price: $60.20
  • Piston
    • Ref No: 1569
    • Part No: 120506
    • Qty Req: 4
    Our price: $104.75 List price: $126.20
  • Valve Assembly
    • Ref No: 1709
    • Part No: 600608
    • Qty Req: 8
    Our price: $42.08 List price: $50.70
  • Oil Reservoir Assembly
    • Ref No: 1741
    • Part No: 603302
    • Qty Req: 1
    Our price: $84.49 List price: $101.80
  • 6031.02 Pulsation Dampener
    • Ref No: 1804
    • Part No: 603102
    • Qty Req: 1
    Our price: $401.28 List price: $549.70
  • Washer
    • Ref No: 1844
    • Part No: 140309
    • Qty Req: 26
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 2
    Our price: $0.94 List price: $1.13
