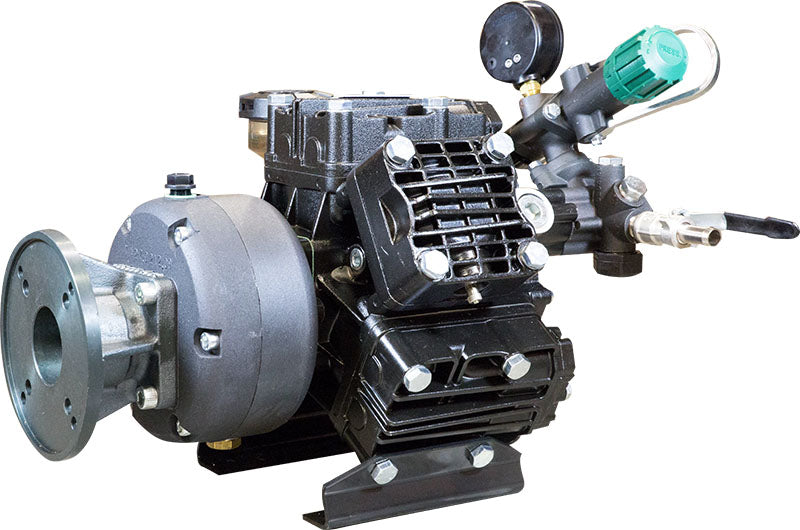

The Udor DELTA-75/GR Diaphragm Pump is the updated version of the KAPPA-75/GR. The specs and performance remain the same - just a new look and pump head design. This is a three diaphragm pump with a pulsation dampener, control unit, and gear box for 9-13 hp gas engines with 1" shaft. The unit also is equipped with a pressure gauge, dual ball valve outlets, manual dump lever, and adjustable pressure regulator. It is ideal for agricultural and horticultural spraying, such as fluid transfer, weed and pest control, tree and turf spraying, hydrostatic testing, and dust suppression.

DELTA-75/GR 3-cylinder medium pressure diaphragm pump with universal drive face, pulsation dampener, and control unit featuring adjustable pressure regulator, manual dump lever, dual ball valve outlets, and pressure gauge. Ideal for agricultural spraying, lawn care, turf applications, hydrostatic testing, fire fighting, and cleaning.

Construction: Anodized aluminum body with stainless steel liquid handling parts. Built-in pulsation dampener, control valve, and pressure gauge standard.

Features: Can run dry. Self-priming operation. Visual oil sight gauges. Stainless steel check valves. Large oil bath crank case with drain plugs for easy maintenance. Compatible with liquid fertilizers, abrasives, pesticides, de-icing materials, and suspension products. Adapts to PTO, gas engine, hydraulic, and belt drive. Max fluid temp: 140°F (custom to 200°F). One-piece stainless steel diaphragm bolts. Heavy duty urethane diaphragms.

Download Product Manual

• Max flow: 20 gpm
• Max pressure: 560 psi
• Includes 6047.06 control unit and 5033.A4 gearbox with 1" hollow shaft for mounting on 9 to 13 hp engines
• Shaft: Flanged for shaft kit or gearbox
• Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
• Housing: Anodized aluminum
• Recommended gearbox: 5033.A4 with 1" hollow shaft for mounting on 9 to 13 hp engines
• Max fluid temperature: 140°F
• Weight: 46 lbs
