Pump Only Kit (Self Priming) (Bolts to 5.5HP Gas Engine)

Pump Only Kit (Self Priming) (Bolts to 5.5HP Gas Engine)

Brand:
Hypro
Weight:
20.0 lb
Item #
1538SP
1 1

Pump Only Kit (Self Priming) (Bolts to 5.5HP Gas Engine)

Pump Only Kit (Self Priming) (Bolts to 5.5HP Gas Engine)

Brand:
Hypro
Weight:
20.0 lb
Item #
1538SP

$875.00
$875.00 List Price: $1,590.91

Earn 2,625 points with this purchase.

See Details

View full details

Product Overview

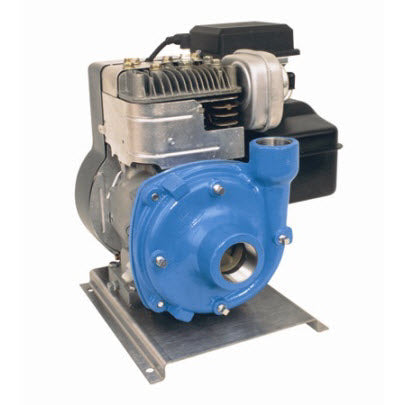

Pump Only Kit (Self Priming) (Bolts to 5.5HP Gas Engine)

Hypro 1538-SP Self-Priming Gas Engine Driven Centrifugal Pump.

100 gpm, 65 psi.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pipe Plug
    • Ref No: 1
    • Part No: 24060001
    • Qty Req: 4
    Our price: $3.78 List price: $4.67
  • Pump Casing (with SS Wear Ring)
    • Ref No: 2
    • Part No: 01529070C
    • Qty Req: 1
    Our price: $742.15 List price: $916.24
  • Impeller (Nylon)
    • Ref No: 3
    • Part No: 04029200P
    • Qty Req: 1
    Our price: $146.76 List price: $181.19
  • Gasket
    • Ref No: 4
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $3.94 List price: $4.87
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300332
    • Qty Req: 1
    Our price: $65.94 List price: $81.41
  • Bolt
    • Ref No: 7
    • Part No: 22100098
    • Qty Req: 4
    Our price: $2.99 List price: $3.69
  • Seal
    • Ref No: 8
    • Part No: 17000119
    • Qty Req: 4
    Our price: $7.91 List price: $9.77
  • Flange
    • Ref No: 9
    • Part No: 07039200C
    • Qty Req: 1
    Our price: $219.58 List price: $271.09
  • Mounting Plate
    • Ref No: 10
    • Part No: 15100083
    • Qty Req: 1
    Our price: $105.94 List price: $130.79
  • Lock Washer
    • Ref No: 11
    • Part No: 22600002
    • Qty Req: 4
    Our price: $1.13 List price: $1.39
  • Hex Head Cap Screw
    • Ref No: 13
    • Part No: 22100021
    • Qty Req: 4
    Our price: $1.09 List price: $1.34
  • Washer
    • Ref No: 14
    • Part No: 22700040
    • Qty Req: 4
    Our price: $0.90 List price: $1.11
  • Bearing Shield (5.5 HP Briggs)
    • Ref No: 16
    • Part No: 14100105
    • Qty Req: 1
    Our price: $20.64 List price: $25.48
  • Hex Head Cap Screw
    • Ref No: 17
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • Plug
    • Ref No: 18
    • Part No: 24060002
    • Qty Req: 1
    Our price: $3.35 List price: $4.13
