Hypro 1536 Centrifugal Pump

Hypro 1536 Centrifugal Pump

Brand:
Hypro
Weight:
64.0 lb
Item #
1536
Skip to product information
1 of 1

Hypro 1536 Centrifugal Pump

Hypro 1536 Centrifugal Pump

Brand:
Hypro
Weight:
64.0 lb
Item #
1536

Regular price $1,142.67
Sale price $1,142.67 Regular price List Price: $2,077.58

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 3,428 points with this purchase.

View full details

Collapsible content

Product Overview

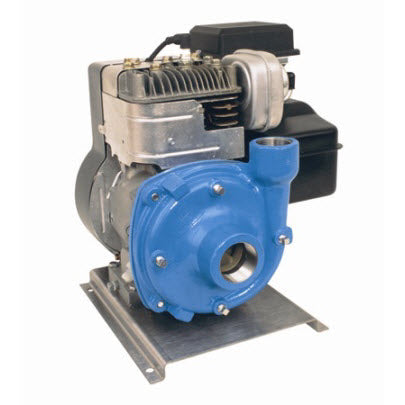

Hypro 1536 Gas Engine Driven Centrifugal Pump.

110 gpm, 75 psi.

1-1/2" x 1-1/4" Ports. 5.5 HP Briggs & Stratton Engine.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.

Model 1539 is the same as model 1536, without the mounting base.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (Reverse) (Cast Iron Series)
    • Ref No: 2
    • Part No: 01529000C
    • Qty Req: 1
    Our price: $245.58 List price: $303.18
  • Impeller (Nylon)
    • Ref No: 3
    • Part No: 04029200P
    • Qty Req: 1
    Our price: $154.10 List price: $190.25
  • Gasket
    • Ref No: 4
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • Bolt
    • Ref No: 7
    • Part No: 22100098
    • Qty Req: 4
    Our price: $3.13 List price: $3.87
  • Seal
    • Ref No: 8
    • Part No: 17000119
    • Qty Req: 4
    Our price: $8.31 List price: $10.26
  • Flange
    • Ref No: 9
    • Part No: 07039200C
    • Qty Req: 1
    Our price: $230.56 List price: $284.64
  • Mounting Plate
    • Ref No: 10
    • Part No: 15100083
    • Qty Req: 1
    Our price: $111.24 List price: $137.33
  • Lock Washer
    • Ref No: 11
    • Part No: 22600002
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Hex Head Cap Screw
    • Ref No: 13
    • Part No: 22100021
    • Qty Req: 4
    Our price: $1.14 List price: $1.41
  • Washer
    • Ref No: 14
    • Part No: 22700040
    • Qty Req: 4
    Our price: $0.95 List price: $1.17
  • Briggs and Stratton Engine
    • Ref No: 15
    • Part No: 25410033A
    • Qty Req: 1
    Our price: $840.95 List price: $1,401.59
  • 1500 SERIES BEARING SHEILD
    • Ref No: 16
    • Part No: 14100088
    • Qty Req: 1
    Our price: $25.83 List price: $31.89
  • Bearing Shield (5.5 HP Briggs)
    • Ref No: 16
    • Part No: 14100105
    • Qty Req: 1
    Our price: $21.67 List price: $26.75
  • Hex Head Cap Screw
    • Ref No: 17
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
