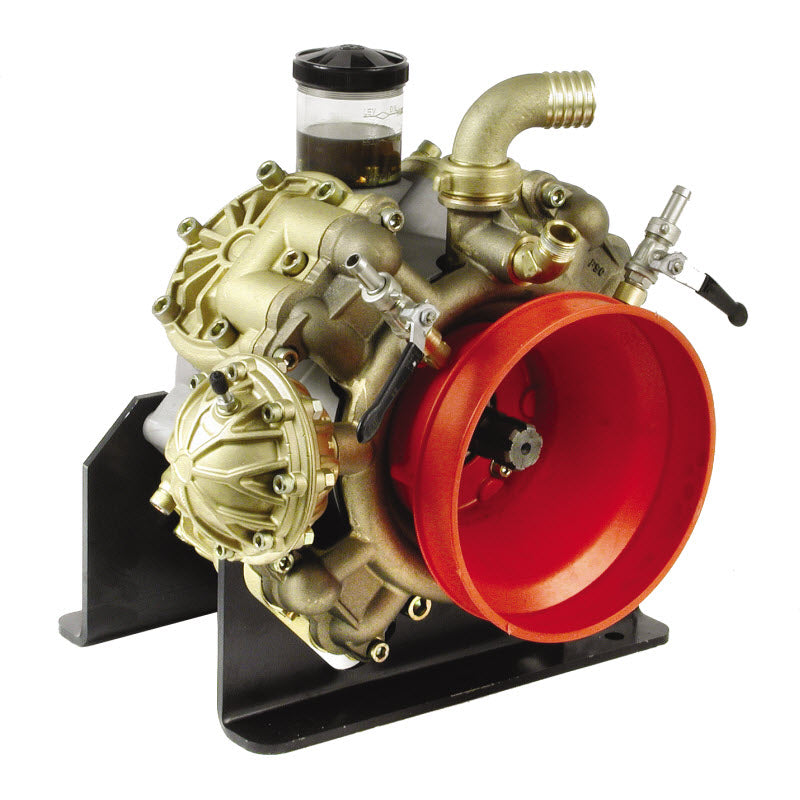

Hypro Pump - DBS160 (Brass)

Hypro Pump - DBS160 (Brass)

Brand:
Hypro
Weight:
143.0 lb
Item #
9910DBS160

Regular price $3,242.93
Sale price $3,242.93 Regular price List Price: $5,896.24

Earn 9,729 points with this purchase.

View full details

Collapsible content

Product Overview

Hypro Diaphragm Pump

Model #: 9910-DBS160

Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting.

These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners.

Features:
  • Max flow: 39.7gpm
  • Max pressure: 725 psi
  • Brass Heads and Manifold
  • Port sizes: 1-1/2" HB inlet, 3/4" HB outlet


Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unav

Parts breakdown

Diagram

Diagram parts

Parts list

  • Diaphragm pin
    • Ref No: 1
    • Part No: 99102240100
    • Qty Req: 4
    Our price: $14.04 List price: $17.33
  • Retaining washer
    • Ref No: 2
    • Part No: 9910580090
    • Qty Req: 4
    Our price: $9.14 List price: $11.29
  • Diaphragm, Buna
    • Ref No: 3
    • Part No: 99102240080
    • Qty Req: 4
    Our price: $38.94 List price: $48.07
  • Sleeve
    • Ref No: 4
    • Part No: 99102240510
    • Qty Req: 4
    Our price: $58.81 List price: $72.60
  • Piston Ring
    • Ref No: 5
    • Part No: 9910260230
    • Qty Req: 4
    Our price: $13.83 List price: $17.07
  • Piston
    • Ref No: 6
    • Part No: 99102240060
    • Qty Req: 4
    Our price: $45.89 List price: $56.66
  • Piston pin
    • Ref No: 7
    • Part No: 9910260700
    • Qty Req: 4
    Our price: $27.09 List price: $33.44
  • Retainer Ring
    • Ref No: 8
    • Part No: 9910160691
    • Qty Req: 8
    Our price: $2.72 List price: $3.36
  • Connecting Rod
    • Ref No: 9
    • Part No: 99102380050
    • Qty Req: 4
    Our price: $91.17 List price: $112.56
  • Nut
    • Ref No: 10
    • Part No: 99102240110
    • Qty Req: 4
    Our price: $3.92 List price: $4.84
  • Cap
    • Ref No: 11
    • Part No: 99101800060
    • Qty Req: 1
    Our price: $17.17 List price: $21.20
  • O-Ring
    • Ref No: 12
    • Part No: 99101040060
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • Bolt
    • Ref No: 14
    • Part No: 9910540290
    • Qty Req: 3
    Our price: $2.98 List price: $3.68
  • Oil sight glass
    • Ref No: 15
    • Part No: 99102240070
    • Qty Req: 1
    Our price: $83.43 List price: $103.00
  • O-Ring
    • Ref No: 16
    • Part No: 99102240270
    • Qty Req: 1
    Our price: $2.99 List price: $3.69
  • Pump Body
    • Ref No: 17
    • Part No: 99102380010
    • Qty Req: 1
    Our price: $875.46 List price: $1,080.81
  • Right head
    • Ref No: 18
    • Part No: 99102240030
    • Qty Req: 2
    Our price: $383.60 List price: $473.58
  • Bolt
    • Ref No: 19
    • Part No: 99102240180
    • Qty Req: 20
    Our price: $2.48 List price: $3.06
  • Bolt
    • Ref No: 20
    • Part No: 99102240220
    • Qty Req: 4
    Our price: $5.65 List price: $6.98
  • Base
    • Ref No: 22
    • Part No: 99102380040
    • Qty Req: 1
    Our price: $222.47 List price: $274.65
  • Bolt
    • Ref No: 23
    • Part No: 99102380060
    • Qty Req: 8
    Our price: $5.70 List price: $7.04
  • Plug
    • Ref No: 24
    • Part No: 9910820361
    • Qty Req: 1
    Our price: $8.69 List price: $10.73
  • Left head
    • Ref No: 25
    • Part No: 99102240031
    • Qty Req: 2
    Our price: $383.60 List price: $473.58
  • Air Valve
    • Ref No: 27
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • O-ring
    • Ref No: 28
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Bolt
    • Ref No: 29
    • Part No: 9910680350
    • Qty Req: 8
    Our price: $2.48 List price: $3.06
  • Upper air chamber
    • Ref No: 30
    • Part No: 99102240300
    • Qty Req: 1
    Our price: $152.40 List price: $188.15
  • Accumulator Diaphragm, Buna-N
    • Ref No: 31
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • Base
    • Ref No: 32
    • Part No: 99102380030
    • Qty Req: 1
    Our price: $194.61 List price: $240.26
  • Lower air chamber
    • Ref No: 33
    • Part No: 99102240310
    • Qty Req: 1
    Our price: $155.86 List price: $192.42
  • Nut
    • Ref No: 34
    • Part No: 9910380240
    • Qty Req: 8
    Our price: $1.51 List price: $1.86
  • O-Ring
    • Ref No: 35
    • Part No: 9910720030
    • Qty Req: 1
    Our price: $0.88 List price: $1.09
  • Elbow 1-1/2
    • Ref No: 36
    • Part No: 99102240210
    • Qty Req: 1
    Our price: $103.39 List price: $127.64
  • Ring nut
    • Ref No: 37
    • Part No: 99102240200
    • Qty Req: 1
    Our price: $21.41 List price: $26.43
  • O-Ring
    • Ref No: 38
    • Part No: 9910390210
    • Qty Req: 8
    Our price: $2.81 List price: $3.47
  • O-Ring
    • Ref No: 39
    • Part No: 9910680070
    • Qty Req: 8
    Our price: $4.23 List price: $5.22
  • Complete valve
    • Ref No: 40
    • Part No: 9910759051
    • Qty Req: 8
    Our price: $46.27 List price: $57.12
  • Outlet ball valve w/o barb
    • Ref No: 41
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $85.55 List price: $106.94
  • 1/2" Hose Barb & Nut
    • Ref No: 42
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $15.09 List price: $18.63
  • Valve elbow
    • Ref No: 43
    • Part No: 99102240260
    • Qty Req: 2
    Our price: $14.04 List price: $17.33
  • Bolt
    • Ref No: 45
    • Part No: 9910650330
    • Qty Req: 8
    Our price: $4.02 List price: $4.96
  • Oil drain plug
    • Ref No: 46
    • Part No: 9910880581
    • Qty Req: 1
    Our price: $5.03 List price: $6.21
  • O-Ring
    • Ref No: 47
    • Part No: 9910820510
    • Qty Req: 1
    Our price: $0.65 List price: $0.80
  • Manifold
    • Ref No: 48
    • Part No: 99102380020
    • Qty Req: 1
    Our price: $1,825.92 List price: $2,254.22
  • Bolt
    • Ref No: 49
    • Part No: 9910850250
    • Qty Req: 4
    Our price: $1.89 List price: $2.33
  • Washer
    • Ref No: 50
    • Part No: 9910390311
    • Qty Req: 4
    Our price: $2.56 List price: $3.16
  • Shield, 239mm
    • Ref No: 51
    • Part No: 99101500470
    • Qty Req: 1
    Our price: $69.60 List price: $85.93
  • Outlet elbow
    • Ref No: 52
    • Part No: 9910851650
    • Qty Req: 1
    Our price: $28.58 List price: $35.28
  • Replacement Ball Valve with Hose Barb for GS40GI Pressure Regulators
    • Ref No: 53
    • Part No: 9910KIT2497
    • Qty Req: 1
    Our price: $68.75 List price: $98.21
  • Oil drain plug
    • Ref No: 54
    • Part No: 24060023
    • Qty Req: 1
    Our price: $10.77 List price: $13.30
  • Snap ring
    • Ref No: 60
    • Part No: 99102240160
    • Qty Req: 2
    Our price: $5.71 List price: $7.05
  • Seal ring
    • Ref No: 61
    • Part No: 99102240150
    • Qty Req: 2
    Our price: $12.17 List price: $15.03
  • Bearing
    • Ref No: 62
    • Part No: 99102240430
    • Qty Req: 2
    Our price: $114.79 List price: $141.71
  • Con rod ring
    • Ref No: 63
    • Part No: 99102240121
    • Qty Req: 2
    Our price: $104.78 List price: $129.36
  • Roller bearing
    • Ref No: 64
    • Part No: 9910850320
    • Qty Req: 2
    Our price: $255.61 List price: $315.57
  • Crankshaft
    • Ref No: 65
    • Part No: 99102240173
    • Qty Req: 1
    Our price: $398.07 List price: $491.45
  • O-ring
    • Ref No: 66
    • Part No: 99102240290
    • Qty Req: 1
    Our price: $6.84 List price: $8.44
  • Flange
    • Ref No: 67
    • Part No: 99102240020
    • Qty Req: 1
    Our price: $166.88 List price: $206.03
  • Bolt
    • Ref No: 68
    • Part No: 9910160670
    • Qty Req: 6
    Our price: $3.06 List price: $3.78
