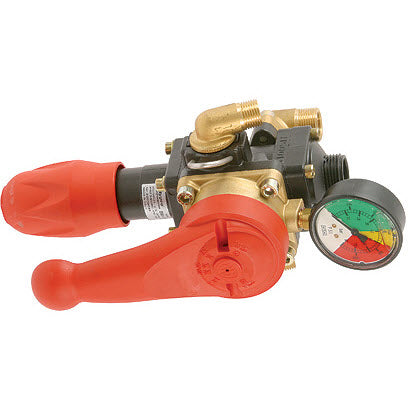

BMH50 Control Unit/Pressure Regulator

BMH50 Control Unit/Pressure Regulator

Brand:
Hypro
Weight:
6.0 lb
Item #
9910BMH50
1 1

BMH50 Control Unit/Pressure Regulator

BMH50 Control Unit/Pressure Regulator

Brand:
Hypro
Weight:
6.0 lb
Item #
9910BMH50

$390.20
$390.20 List Price: $650.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

1 hrs 11 minsship out same day. Learn more

Earn 1,171 points with this purchase.

See Details

View full details

Product Overview

BMH50 Control Unit/Pressure Regulator DBA160/DBS160.

This control unit, for mounting on pump models 9910-DBS110, 9910-DBA110, 9910-DBS140, 9910-DBA140, 9910-DBS160 and 9910-DBA160 is capable of handling flow rates up to 41 gpm (155.2 lpm) and pressures up to 725 psi (50 bar). It includes a directional control unit with pressure regulating valve, single lever for partial or total closure and discharge and glycerine-bath pressure gauge with colored dial.

Download Product Manual

Diagram

Diagram parts

Parts list

  • Hose Barb 1"
    • Ref No: 1
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $13.66 List price: $16.30
  • Ring Nut
    • Ref No: 2
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $9.55 List price: $11.39
  • O-Ring
    • Ref No: 3
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.85 List price: $2.21
  • Bolt
    • Ref No: 4
    • Part No: 9910780060
    • Qty Req: 4
    Our price: $1.78 List price: $2.12
  • O-Ring
    • Ref No: 16
    • Part No: 9910390060
    • Qty Req: 2
    Our price: $1.85 List price: $2.21
  • Tension Spring
    • Ref No: 18
    • Part No: 9910320420
    • Qty Req: 1
    Our price: $7.29 List price: $8.69
  • Bolt
    • Ref No: 19
    • Part No: 9910680700
    • Qty Req: 1
    Our price: $8.67 List price: $10.35
  • 3300-0082 RV O RING
    • Ref No: 27
    • Part No: 9910820490
    • Qty Req: 1
    Our price: $1.66 List price: $1.97
  • Bolt
    • Ref No: 29
    • Part No: 99101040370
    • Qty Req: 4
    Our price: $4.16 List price: $4.96
  • 1/2" Hose Barb & Nut
    • Ref No: 34
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $15.62 List price: $18.63
  • Retainer Clip
    • Ref No: 35
    • Part No: 99101040690
    • Qty Req: 2
    Our price: $25.26 List price: $30.14
  • O-Ring
    • Ref No: 40
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $1.99 List price: $2.37
  • Seat
    • Ref No: 41
    • Part No: 9910850650
    • Qty Req: 2
    Our price: $15.48 List price: $18.46
  • Ball
    • Ref No: 42
    • Part No: 9910850660
    • Qty Req: 2
    Our price: $28.02 List price: $33.42
  • Spring
    • Ref No: 43
    • Part No: 9910850680
    • Qty Req: 3
    Our price: $4.16 List price: $4.96
  • Bolt
    • Ref No: 45
    • Part No: 9910320360
    • Qty Req: 6
    Our price: $1.78 List price: $2.12
  • WASHER
    • Ref No: 50
    • Part No: 9910391460
    • Qty Req: 1
    Our price: $5.09 List price: $6.08
  • 9910-550545 Pressure Gauge (Color Coded, Oil-Filled)
    • Ref No: 51
    • Part No: 9910550545
    • Qty Req: 1
    Our price: $61.10 List price: $72.88
  • 1" Straight Hose Barb
    • Ref No: 55
    • Part No: 9910550210
    • Qty Req: 1
    Our price: $7.73 List price: $9.22
  • Bolt
    • Ref No: 59
    • Part No: 9910180370
    • Qty Req: 2
    Our price: $4.16 List price: $4.96
  • Mounting Bracket
    • Ref No: 60
    • Part No: 9910850690
    • Qty Req: 1
    Our price: $40.86 List price: $48.74
  • Nut
    • Ref No: 61
    • Part No: 9910390270
    • Qty Req: 2
    Our price: $1.74 List price: $2.08
  • Washer
    • Ref No: 63
    • Part No: 9910550331
    • Qty Req: 4
    Our price: $1.56 List price: $1.86
  • Cotter Pin
    • Ref No: 67
    • Part No: 99101040950
    • Qty Req: 2
    Our price: $1.44 List price: $1.71
