Product Overview

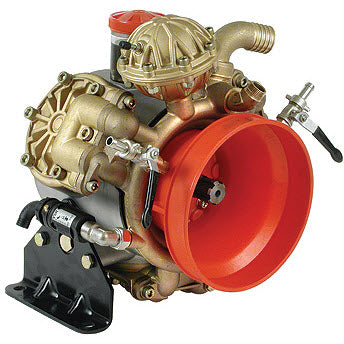

Hypro Diaphragm Pump
Model #: 9910-DBS110
Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting.
These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners.
Â
Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.Â
Â
Â
Resources
Features
Features:
Â
- Max flow: 29.8 gpm
- Max pressure: 725 psi
- External bronze manifolds and brass heads
- Port sizes: 1-1/2" HB Inlet, 3/4" NPT Outlet
- 1-3/8" 6 Splined male double-ended shaft
Parts breakdown
Diagram
Parts list
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
