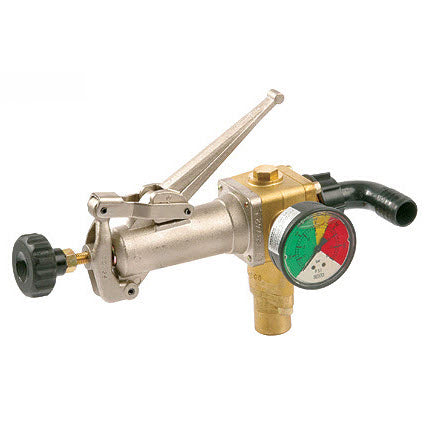

Hypro GH50 Control Unit/Regulator

Hypro GH50 Control Unit/Regulator

Brand:
Hypro
Weight:
8.0 lb
Item #
9910GH50
1 review
  • Hypro GH50 Control Unit/Regulator
1 1

Hypro GH50 Control Unit/Regulator

Hypro GH50 Control Unit/Regulator

Brand:
Hypro
Weight:
8.0 lb
Item #
9910GH50
1 review

$364.32
$364.32 List Price: $634.44

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 1,093 points with this purchase.

See Details

View full details

Product Overview

52.8 gpm, 725 psi.

This control unit, for mounting on pump models 9910-DBS110, 9910-DBA110, 9910-DBS140, 9910-DBA140, 9910-DBS160, 9910-DBA160, 9910-DBS200 and 9910-DBA200, is capable of handling flow rates up to 52.8 gpm (200 lpm) and pressures up to 725 psi (50 bar). It includes pressure regulating valve, bypass control lever and glycerine-bath pressure gauge with colored dial.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bolt
    • Ref No: 23
    • Part No: 9910620610
    • Qty Req: 2
    Our price: $1.91 List price: $2.27
  • Flange 3/4"
    • Ref No: 24
    • Part No: 9910550394
    • Qty Req: 1
    Our price: $58.02 List price: $74.39
  • O-Ring
    • Ref No: 25
    • Part No: 9910550350
    • Qty Req: 4
    Our price: $1.95 List price: $2.19
  • Pipe Reducer
    • Ref No: 32
    • Part No: 9910130170
    • Qty Req: 1
    Our price: $19.60 List price: $21.71
  • O-Ring
    • Ref No: 35
    • Part No: 9910280220
    • Qty Req: 1
    Our price: $3.11 List price: $3.73
  • Plug
    • Ref No: 36
    • Part No: 9910130171
    • Qty Req: 2
    Our price: $4.99 List price: $6.27
  • 1" Straight Hose Barb
    • Ref No: 37
    • Part No: 9910550210
    • Qty Req: 1
    Our price: $8.12 List price: $8.93
  • Hose Barb 1"
    • Ref No: 38
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $14.34 List price: $16.97
  • Ring Nut
    • Ref No: 39
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $10.03 List price: $10.64
  • Diaphragm
    • Ref No: 40
    • Part No: 9910390740
    • Qty Req: 1
    Our price: $20.97 List price: $22.91
  • Valve Body
    • Ref No: 41
    • Part No: 9910680412
    • Qty Req: 1
    Our price: $163.74 List price: $209.96
  • Upper Valve Side
    • Ref No: 42
    • Part No: 9910680423
    • Qty Req: 1
    Our price: $130.42 List price: $167.23
  • Discharge Flange
    • Ref No: 43
    • Part No: 9910680432
    • Qty Req: 1
    Our price: $69.84 List price: $85.08
  • Tension Adj. Support
    • Ref No: 44
    • Part No: 9910680442
    • Qty Req: 1
    Our price: $64.04 List price: $82.12
  • Support Seat
    • Ref No: 45
    • Part No: 9910680460
    • Qty Req: 1
    Our price: $64.81 List price: $77.07
  • Seat
    • Ref No: 46
    • Part No: 9910680470
    • Qty Req: 1
    Our price: $49.64 List price: $63.66
  • Piston Valve
    • Ref No: 47
    • Part No: 9910680480
    • Qty Req: 1
    Our price: $32.24 List price: $41.34
  • Piston Valve Seat
    • Ref No: 48
    • Part No: 9910680490
    • Qty Req: 1
    Our price: $32.94 List price: $42.24
  • Tension Spring
    • Ref No: 49
    • Part No: 9910680500
    • Qty Req: 1
    Our price: $18.91 List price: $24.24
  • Spring Guide
    • Ref No: 50
    • Part No: 9910680510
    • Qty Req: 1
    Our price: $14.54 List price: $18.65
  • Lever Guide
    • Ref No: 51
    • Part No: 9910680520
    • Qty Req: 1
    Our price: $10.91 List price: $13.99
  • Lever Guide Pin
    • Ref No: 52
    • Part No: 9910680530
    • Qty Req: 1
    Our price: $2.22 List price: $2.66
  • Support Pin
    • Ref No: 53
    • Part No: 9910680540
    • Qty Req: 2
    Our price: $2.09 List price: $2.68
  • Pin
    • Ref No: 54
    • Part No: 9910680550
    • Qty Req: 1
    Our price: $2.09 List price: $2.68
  • Bolt
    • Ref No: 55
    • Part No: 9910680700
    • Qty Req: 1
    Our price: $9.11 List price: $10.93
  • Screw
    • Ref No: 56
    • Part No: 9910680570
    • Qty Req: 4
    Our price: $4.42 List price: $5.07
  • Adjustment Control Knob
    • Ref No: 58
    • Part No: 9910660130
    • Qty Req: 1
    Our price: $25.53 List price: $32.74
  • Nut
    • Ref No: 59
    • Part No: 9910180150
    • Qty Req: 1
    Our price: $1.79 List price: $1.89
  • Control Lever
    • Ref No: 11
    • Part No: 9910680452
    • Qty Req: 1
    Our price: $76.12 List price: $97.61
  • Tension Spring
    • Ref No: 65
    • Part No: 9910320420
    • Qty Req: 1
    Our price: $7.66 List price: $9.81
  • Mounting Bracket
    • Ref No: 66
    • Part No: 99101150590
    • Qty Req: 1
    Our price: $21.81 List price: $27.96
