Hypro Pump - DBA140

Hypro Pump - DBA140

Item Code:
9910DBA140
Weight:
88.0 lb
Manufacturer:
Hypro
Our price:
$2,030.05
List price:
$3,691.00
Overview:
Hypro Diaphragm Pump

Model #: 9910-DBA140

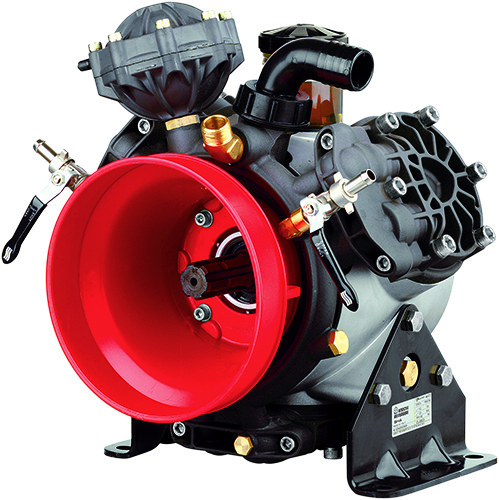

(Brass version shown in picture)

Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting.

These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners.

Features:
  • Max flow: 37.6 gpm
  • Max pressure: 725 psi
  • External heads and manifolds in anodized aluminum
  • Port sizes: 1-1/2" HB Inlet, 3/4" NPT Outlet
  • 1-3/8" 6 Splined male double-ended shaft


Hypro/Pentair is no longer distri

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 99102240100
  • Qty Req: 3
Our price: $13.20 List price: $16.30
  • Ref No: 2
  • Part No: 9910580090
  • Qty Req: 3
Our price: $8.55 List price: $10.56
  • Ref No: 3
  • Part No: 99102240080
  • Qty Req: 3
Our price: $34.80 List price: $42.96
  • Ref No: 5
  • Part No: 99102240360
  • Qty Req: 3
Our price: $13.20 List price: $16.30
  • Ref No: 6
  • Part No: 99102240350
  • Qty Req: 3
Our price: $44.98 List price: $55.53
  • Ref No: 7
  • Part No: 9910540070
  • Qty Req: 3
Our price: $26.25 List price: $32.41
  • Ref No: 8
  • Part No: 9910160691
  • Qty Req: 6
Our price: $2.48 List price: $3.06
  • Ref No: 9
  • Part No: 99102240090
  • Qty Req: 3
Our price: $116.70 List price: $144.08
  • Ref No: 10
  • Part No: 99102240110
  • Qty Req: 3
Our price: $3.69 List price: $4.55
  • Ref No: 11
  • Part No: 9910750050
  • Qty Req: 1
Our price: $19.91 List price: $24.58
  • Ref No: 12
  • Part No: 99101040060
  • Qty Req: 1
Our price: $8.74 List price: $10.79
  • Ref No: 14
  • Part No: 9910540290
  • Qty Req: 3
Our price: $2.98 List price: $3.68
  • Ref No: 15
  • Part No: 99102240070
  • Qty Req: 1
Our price: $83.43 List price: $103.00
  • Ref No: 16
  • Part No: 99102240270
  • Qty Req: 1
Our price: $2.77 List price: $3.42
  • Ref No: 17
  • Part No: 99102240011
  • Qty Req: 1
Our price: $821.48 List price: $1,014.17
  • Ref No: 18
  • Part No: 99102240450
  • Qty Req: 2
Our price: $157.93 List price: $194.97
  • Ref No: 20
  • Part No: 99102240470
  • Qty Req: 18
Our price: $42.74 List price: $52.76
  • Ref No: 22
  • Part No: 99102240190
  • Qty Req: 2
Our price: $62.22 List price: $76.82
  • Ref No: 23
  • Part No: 9910540100
  • Qty Req: 6
Our price: $4.96 List price: $6.13
  • Ref No: 24
  • Part No: 9910820361
  • Qty Req: 2
Our price: $8.69 List price: $10.73
  • Ref No: 25
  • Part No: 99102240451
  • Qty Req: 1
Our price: $157.93 List price: $194.97
  • Ref No: 27
  • Part No: 9910180020
  • Qty Req: 1
Our price: $41.03 List price: $50.66
  • Ref No: 28
  • Part No: 9910650542
  • Qty Req: 1
Our price: $1.97 List price: $2.43
  • Ref No: 29
  • Part No: 9910621781
  • Qty Req: 8
Our price: $2.39 List price: $2.95
  • Ref No: 30
  • Part No: 9910629211
  • Qty Req: 1
Our price: $87.11 List price: $107.54
  • Ref No: 35
  • Part No: 9910720030
  • Qty Req: 1
Our price: $0.88 List price: $1.09
  • Ref No: 36
  • Part No: 9910540550
  • Qty Req: 1
Our price: $29.71 List price: $36.68
  • Ref No: 37
  • Part No: 9910540540
  • Qty Req: 1
Our price: $18.08 List price: $22.32
  • Ref No: 38
  • Part No: 9910250310
  • Qty Req: 1
Our price: $1.93 List price: $2.38
  • Ref No: 39
  • Part No: 9910680070
  • Qty Req: 6
Our price: $4.23 List price: $5.22
  • Ref No: 40
  • Part No: 9910759051
  • Qty Req: 6
Our price: $46.27 List price: $57.12
  • Ref No: 42
  • Part No: 9910110130
  • Qty Req: 2
Our price: $15.09 List price: $18.63
  • Ref No: 43
  • Part No: 99102240260
  • Qty Req: 2
Our price: $13.20 List price: $16.30
  • Ref No: 44
  • Part No: 24060023
  • Qty Req: 2
Our price: $10.26 List price: $12.67
  • Ref No: 45
  • Part No: 9910650330
  • Qty Req: 6
Our price: $4.02 List price: $4.96
  • Ref No: 46
  • Part No: 9910880581
  • Qty Req: 1
Our price: $5.03 List price: $6.21
  • Ref No: 47
  • Part No: 9910820510
  • Qty Req: 1
Our price: $0.65 List price: $0.80
  • Ref No: 49
  • Part No: 9910850250
  • Qty Req: 4
Our price: $1.89 List price: $2.33
  • Ref No: 50
  • Part No: 9910390311
  • Qty Req: 4
Our price: $2.56 List price: $3.16
  • Ref No: 51
  • Part No: 99101500470
  • Qty Req: 1
Our price: $69.60 List price: $85.93
  • Ref No: 52
  • Part No: 9910851650
  • Qty Req: 1
Our price: $26.87 List price: $33.17
  • Ref No: 60
  • Part No: 99102240160
  • Qty Req: 2
Our price: $5.36 List price: $6.62
  • Ref No: 61
  • Part No: 99102240150
  • Qty Req: 2
Our price: $11.74 List price: $14.49
  • Ref No: 62
  • Part No: 99102240430
  • Qty Req: 2
Our price: $114.79 List price: $141.71
  • Ref No: 63
  • Part No: 99102240121
  • Qty Req: 2
Our price: $98.50 List price: $121.61
  • Ref No: 64
  • Part No: 9910850320
  • Qty Req: 2
Our price: $255.61 List price: $315.57
  • Ref No: 65
  • Part No: 99102240173
  • Qty Req: 1
Our price: $398.07 List price: $491.45
  • Ref No: 66
  • Part No: 99102240290
  • Qty Req: 1
Our price: $5.95 List price: $7.35
  • Ref No: 67
  • Part No: 99102240020
  • Qty Req: 1
Our price: $166.88 List price: $206.03
  • Ref No: 68
  • Part No: 9910160670
  • Qty Req: 6
Our price: $3.06 List price: $3.78
