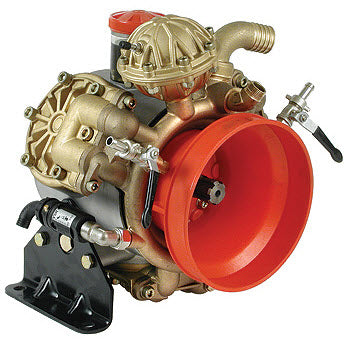

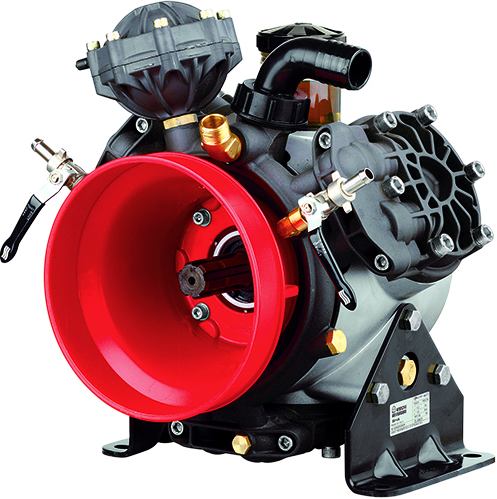

Hypro DBA110 Diaphragm Pump

Hypro DBA110 Diaphragm Pump

Item Code:
9910DBA110
Weight:
88.0 lb
Manufacturer:
Hypro
Our price:
$1,851.30
List price:
$3,366.00
Overview:
The Hypro DBA110 Diaphragm Pump is a high-pressure, heavy-duty pump with aluminum heads. The design includes external manifolds which increases the speed of regular maintenance because you do not have to dismantle the unit to access the valves or diaphragms. The durable and reliable pump handles various chemicals, making it useful for various construction, agricultural, horticultural, and industrial spraying applications.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon. If you order one of these products you may receive the original factory version manufactured by AR in Italy. Specs and performance are the same.

Manufacturer Description:

Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting. These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners. Features: ¥ Innovative external manifold design allows for easy replacement, when required. (Competitive units require replacement of the entire pump body when the manifold wears out.) ¥ Die-cast aluminum pump body is stronger and lighter than competitive sand-cast designs. ¥ Heavy-duty mounting brackets are rigidly fixed to the frame to better absorb axial thrust loads. ¥ Oversized shaft bearings and connecting rod bearings result in a longer life under heavy loads. ¥ Large oil reservoir passages in the crankcase allow easier oil filling. ¥ The double manifold features a drain plug to protect your pump against freezing.

Features:

  • Max flow: 30 gpm
  • Max pressure: 725 psi
  • Shaft: Dual 1-3/8" 6 spline male PTO shaft
  • Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Buna
  • Housing: Die-cast aluminum
  • Manifold and Head material: Anodized aluminum
  • Mounting base: Included
  • Recommended control unit: 9910-GH50 or 9910-BMH50
  • Max fluid temperature: 140°F
  • Weight: 88 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 99102240100
  • Qty Req: 3
Our price: $13.20 List price: $16.30
  • Ref No: 2
  • Part No: 9910580090
  • Qty Req: 3
Our price: $8.55 List price: $10.56
  • Ref No: 3
  • Part No: 99102240080
  • Qty Req: 3
Our price: $34.80 List price: $42.96
  • Ref No: 5
  • Part No: 9910260230
  • Qty Req: 3
Our price: $13.00 List price: $16.05
  • Ref No: 6
  • Part No: 99102240060
  • Qty Req: 3
Our price: $43.15 List price: $53.27
  • Ref No: 7
  • Part No: 9910260700
  • Qty Req: 3
Our price: $15.52 List price: $19.16
  • Ref No: 8
  • Part No: 9910160691
  • Qty Req: 6
Our price: $2.48 List price: $3.06
  • Ref No: 9
  • Part No: 99102240090
  • Qty Req: 3
Our price: $116.70 List price: $144.08
  • Ref No: 10
  • Part No: 99102240110
  • Qty Req: 3
Our price: $3.69 List price: $4.55
  • Ref No: 11
  • Part No: 99101800060
  • Qty Req: 1
Our price: $15.93 List price: $19.67
  • Ref No: 12
  • Part No: 99101040060
  • Qty Req: 1
Our price: $8.74 List price: $10.79
  • Ref No: 14
  • Part No: 9910540290
  • Qty Req: 3
Our price: $2.98 List price: $3.68
  • Ref No: 15
  • Part No: 99102240070
  • Qty Req: 1
Our price: $83.43 List price: $103.00
  • Ref No: 16
  • Part No: 99102240270
  • Qty Req: 1
Our price: $2.77 List price: $3.42
  • Ref No: 17
  • Part No: 99102240010
  • Qty Req: 1
Our price: $689.31 List price: $851.00
  • Ref No: 18
  • Part No: 99102240450
  • Qty Req: 2
Our price: $157.93 List price: $194.97
  • Ref No: 20
  • Part No: 99102240470
  • Qty Req: 18
Our price: $42.74 List price: $52.76
  • Ref No: 22
  • Part No: 99102240190
  • Qty Req: 2
Our price: $62.22 List price: $76.82
  • Ref No: 23
  • Part No: 9910540100
  • Qty Req: 6
Our price: $4.96 List price: $6.13
  • Ref No: 24
  • Part No: 9910820361
  • Qty Req: 2
Our price: $8.69 List price: $10.73
  • Ref No: 25
  • Part No: 99102240451
  • Qty Req: 1
Our price: $157.93 List price: $194.97
  • Ref No: 27
  • Part No: 9910180020
  • Qty Req: 1
Our price: $41.03 List price: $50.66
  • Ref No: 28
  • Part No: 9910650542
  • Qty Req: 1
Our price: $1.97 List price: $2.43
  • Ref No: 29
  • Part No: 9910621781
  • Qty Req: 8
Our price: $2.39 List price: $2.95
  • Ref No: 30
  • Part No: 9910629211
  • Qty Req: 1
Our price: $87.11 List price: $107.54
  • Ref No: 35
  • Part No: 9910720030
  • Qty Req: 1
Our price: $0.88 List price: $1.09
  • Ref No: 36
  • Part No: 9910540550
  • Qty Req: 1
Our price: $29.71 List price: $36.68
  • Ref No: 37
  • Part No: 9910540540
  • Qty Req: 1
Our price: $18.08 List price: $22.32
  • Ref No: 38
  • Part No: 9910250310
  • Qty Req: 1
Our price: $1.93 List price: $2.38
  • Ref No: 39
  • Part No: 9910680070
  • Qty Req: 6
Our price: $4.23 List price: $5.22
  • Ref No: 40
  • Part No: 9910759051
  • Qty Req: 6
Our price: $46.27 List price: $57.12
  • Ref No: 42
  • Part No: 9910110130
  • Qty Req: 2
Our price: $15.09 List price: $18.63
  • Ref No: 43
  • Part No: 99102240260
  • Qty Req: 2
Our price: $13.20 List price: $16.30
  • Ref No: 44
  • Part No: 24060023
  • Qty Req: 2
Our price: $10.26 List price: $12.67
  • Ref No: 45
  • Part No: 9910650330
  • Qty Req: 6
Our price: $4.02 List price: $4.96
  • Ref No: 46
  • Part No: 9910880581
  • Qty Req: 1
Our price: $5.03 List price: $6.21
  • Ref No: 47
  • Part No: 9910820510
  • Qty Req: 1
Our price: $0.65 List price: $0.80
  • Ref No: 49
  • Part No: 9910850250
  • Qty Req: 4
Our price: $1.89 List price: $2.33
  • Ref No: 50
  • Part No: 9910390311
  • Qty Req: 4
Our price: $2.56 List price: $3.16
  • Ref No: 51
  • Part No: 99101500470
  • Qty Req: 1
Our price: $69.60 List price: $85.93
  • Ref No: 52
  • Part No: 9910851650
  • Qty Req: 1
Our price: $26.87 List price: $33.17
  • Ref No: 60
  • Part No: 99102240160
  • Qty Req: 2
Our price: $5.36 List price: $6.62
  • Ref No: 61
  • Part No: 99102240150
  • Qty Req: 2
Our price: $11.74 List price: $14.49
  • Ref No: 62
  • Part No: 99102240430
  • Qty Req: 2
Our price: $114.79 List price: $141.71
  • Ref No: 63
  • Part No: 99102240121
  • Qty Req: 2
Our price: $98.50 List price: $121.61
  • Ref No: 64
  • Part No: 9910850320
  • Qty Req: 2
Our price: $255.61 List price: $315.57
  • Ref No: 65
  • Part No: 99102240173
  • Qty Req: 1
Our price: $398.07 List price: $491.45
  • Ref No: 66
  • Part No: 99102240290
  • Qty Req: 1
Our price: $5.95 List price: $7.35
  • Ref No: 67
  • Part No: 99102240020
  • Qty Req: 1
Our price: $166.88 List price: $206.03
  • Ref No: 68
  • Part No: 9910160670
  • Qty Req: 6
Our price: $3.06 List price: $3.78
