Product Overview

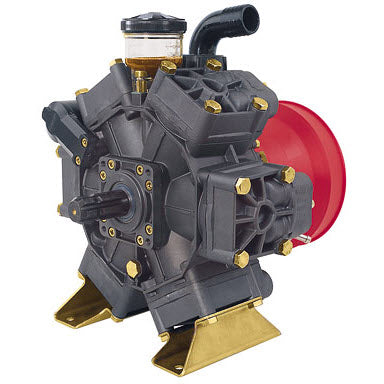

Hypro Diaphragm Pump

(Parts are available but pump is no longer manufactured by Hypro. Please see Hypro 9910-DBA160 or DBS160 for pump replacement)

Model #: 9910-D1516

Hypro high pressure diaphragm pumps are recommended for spraying of herbicides, pesticides, liquid fertilizers and many other hard to handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs.

Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro high pressure diaphragm pumps are supplied with single or double-splined through-shafts. Pumps include pulsation dampeners.

Features:

Max flow: 40 gpm
Max pressure: 725 psi
Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
1-3/8" 6 Spline Male Shaft

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, compone

Resources

Download Product Manual

Parts breakdown

Diagram

Parts list

Diaphragm Bolt
- Ref No: 1
- Part No: 9910580360
- Qty Req: 6
Our price: $14.04 List price: $17.33
Retaining Washer
- Ref No: 2
- Part No: 99101040180
- Qty Req: 6
Our price: $18.78 List price: $23.18

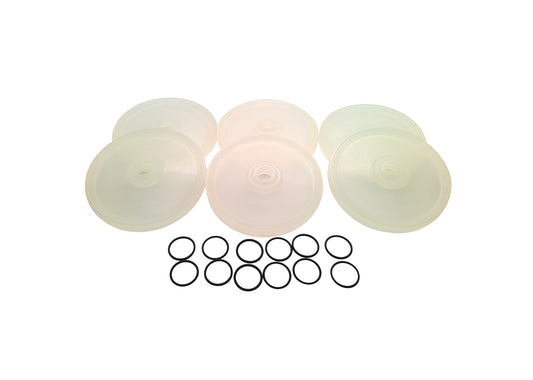

Diaphragm, Desmopan (Std.)
- Ref No: 3
- Part No: 99101040080
- Qty Req: 6
Our price: $45.59 List price: $56.28
Diaphragm, Buna-N (Opt.)
- Ref No: 3A
- Part No: 99101040081
- Qty Req: 6
Our price: $48.78 List price: $60.22
Piston Sleeve
- Ref No: 4
- Part No: 99101500080
- Qty Req: 6
Our price: $87.11 List price: $107.54
Piston Ring
- Ref No: 5
- Part No: 9910650190
- Qty Req: 6
Our price: $18.08 List price: $22.32
Piston
- Ref No: 6
- Part No: 99101040120
- Qty Req: 6
Our price: $124.91 List price: $154.21
Connecting pin
- Ref No: 7
- Part No: 99101040070
- Qty Req: 6
Our price: $33.99 List price: $41.96
Snap Ring
- Ref No: 8
- Part No: 99101040270
- Qty Req: 12
Our price: $5.32 List price: $6.57
Connecting Rod
- Ref No: 9
- Part No: 99101500160
- Qty Req: 6
Our price: $72.71 List price: $89.77
Retaining Ring
- Ref No: 10
- Part No: 99101500181
- Qty Req: 2
Our price: $40.50 List price: $50.00
M10 X 16 Bolt
- Ref No: 11
- Part No: 9910820670
- Qty Req: 4
Our price: $2.48 List price: $3.06
Bolt
- Ref No: 12
- Part No: 9910180030
- Qty Req: 8
Our price: $1.89 List price: $2.33
Shield, 239mm
- Ref No: 13
- Part No: 99101500470
- Qty Req: 1
Our price: $69.60 List price: $85.93
Flange
- Ref No: 14
- Part No: 99101800220
- Qty Req: 1
Our price: $126.36 List price: $156.00
O-Ring
- Ref No: 15
- Part No: 99101040060
- Qty Req: 3
Our price: $8.74 List price: $10.79
Seal Ring
- Ref No: 16
- Part No: 9910160740
- Qty Req: 1
Our price: $39.44 List price: $48.69
Bearing
- Ref No: 17
- Part No: 99101500290
- Qty Req: 2
Our price: $55.36 List price: $68.34
Spacer
- Ref No: 18
- Part No: 99101500310
- Qty Req: 1
Our price: $45.64 List price: $56.34
Shaft
- Ref No: 19
- Part No: 99101400310
- Qty Req: 1
Our price: $492.33 List price: $607.82
O-Ring
- Ref No: 20
- Part No: 9910620030
- Qty Req: 12
Our price: $1.97 List price: $2.43
Head-Right (DX)
- Ref No: 21
- Part No: 99101040551
- Qty Req: 2
Our price: $223.38 List price: $275.78
Head-Left (SX)
- Ref No: 21
- Part No: 99101040552
- Qty Req: 3
Our price: $199.45 List price: $246.23

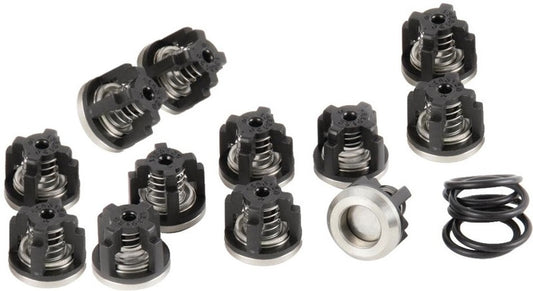

Complete Valve Assembly
- Ref No: 22
- Part No: 99101409050
- Qty Req: 12
Our price: $28.70 List price: $35.43
O-Ring
- Ref No: 23
- Part No: 9910540361
- Qty Req: 12
Our price: $1.97 List price: $2.43
Valve Retainer
- Ref No: 24
- Part No: 99101300190
- Qty Req: 6
Our price: $46.27 List price: $57.12
Bolt
- Ref No: 25
- Part No: 9910620610
- Qty Req: 12
Our price: $1.76 List price: $2.17
Bolt
- Ref No: 26
- Part No: 99101500230
- Qty Req: 20
Our price: $7.76 List price: $9.58
Bolt
- Ref No: 27
- Part No: 99101500240
- Qty Req: 4
Our price: $6.55 List price: $8.09
O-Ring, Viton
- Ref No: 28
- Part No: 9910770571
- Qty Req: 12
Our price: $1.89 List price: $2.33
Bolt
- Ref No: 29
- Part No: 9910320360
- Qty Req: 2
Our price: $1.72 List price: $2.12
End Cap
- Ref No: 30
- Part No: 99101800320
- Qty Req: 1
Our price: $91.48 List price: $112.94
Plug
- Ref No: 31
- Part No: 99101040470
- Qty Req: 2
Our price: $4.66 List price: $5.75
O-Ring
- Ref No: 32
- Part No: 9910640070
- Qty Req: 1
Our price: $1.51 List price: $1.86
O-Ring
- Ref No: 33
- Part No: 9910540360
- Qty Req: 1
Our price: $2.60 List price: $3.21
Pulsation Damper Body
- Ref No: 34
- Part No: 99101800280
- Qty Req: 1
Our price: $118.04 List price: $145.73
Diaphragm
- Ref No: 35
- Part No: 99101800300
- Qty Req: 1
Our price: $22.30 List price: $27.53
Pulsation Damper Cap
- Ref No: 36
- Part No: 99101800270
- Qty Req: 1
Our price: $55.62 List price: $68.67
O-ring
- Ref No: 37
- Part No: 9910650542
- Qty Req: 1
Our price: $1.97 List price: $2.43
Washer
- Ref No: 38
- Part No: 9910380241
- Qty Req: 2
Our price: $1.51 List price: $1.86
Air Valve
- Ref No: 39
- Part No: 99101800350
- Qty Req: 1
Our price: $16.29 List price: $20.11
Pulsation damper assembly
- Ref No: 40
- Part No: 9910KIT1538
- Qty Req: 1
Our price: $389.12 List price: $486.40
Plug
- Ref No: 41
- Part No: 9910770070
- Qty Req: 1
Our price: $4.07 List price: $5.02
Oil Seal
- Ref No: 42
- Part No: 99101040050
- Qty Req: 1
Our price: $49.69 List price: $61.34
Plug
- Ref No: 43
- Part No: 9910880530
- Qty Req: 2
Our price: $4.86 List price: $6.00
O-Ring
- Ref No: 44
- Part No: 9910390180
- Qty Req: 1
Our price: $1.51 List price: $1.86
Threaded Adapter
- Ref No: 45
- Part No: 9910850740
- Qty Req: 1
Our price: $32.48 List price: $40.10
Bolt
- Ref No: 46
- Part No: 9910540290
- Qty Req: 18
Our price: $2.98 List price: $3.68
Bolt
- Ref No: 47
- Part No: 99101343510
- Qty Req: 3
Our price: $1.30 List price: $1.61
Manifold
- Ref No: 48
- Part No: 99101840140
- Qty Req: 1
Our price: $166.63 List price: $205.72
Right Base
- Ref No: 49
- Part No: 99101500040
- Qty Req: 1
Our price: $46.27 List price: $57.12
Oil drain plug
- Ref No: 50
- Part No: 24060023
- Qty Req: 1
Our price: $11.32 List price: $13.97
Left base
- Ref No: 51
- Part No: 99101500050
- Qty Req: 1
Our price: $43.95 List price: $54.26
1/2" Hose Barb & Nut
- Ref No: 52
- Part No: 9910110130
- Qty Req: 2
Our price: $15.09 List price: $18.63
Outlet ball valve w/o barb
- Ref No: 53
- Part No: 9910130491
- Qty Req: 1
Our price: $85.55 List price: $106.94
Pump body
- Ref No: 54
- Part No: 99101500480
- Qty Req: 1
Our price: $1,304.70 List price: $1,610.74
O-Ring
- Ref No: 55
- Part No: 9910740290
- Qty Req: 3
Our price: $1.92 List price: $2.37
Bolt
- Ref No: 56
- Part No: 9910680350
- Qty Req: 2
Our price: $2.48 List price: $3.06
Oil reservoir
- Ref No: 57
- Part No: 9910750030
- Qty Req: 1
Our price: $54.88 List price: $67.75
Cap
- Ref No: 58
- Part No: 99101800060
- Qty Req: 1
Our price: $17.17 List price: $21.20
Threaded Adapter
- Ref No: 59
- Part No: 9910540530
- Qty Req: 1
Our price: $25.60 List price: $31.60
O-Ring
- Ref No: 60
- Part No: 9910250310
- Qty Req: 2
Our price: $1.93 List price: $2.38
Ring Nut
- Ref No: 61
- Part No: 9910540540
- Qty Req: 1
Our price: $18.08 List price: $22.32
Elbow 1-1/2"
- Ref No: 62
- Part No: 9910540550
- Qty Req: 1
Our price: $29.71 List price: $36.68
O-ring
- Ref No: 63
- Part No: 99101500320
- Qty Req: 2
Our price: $23.48 List price: $28.99
Bearing
- Ref No: 64
- Part No: 99101500170
- Qty Req: 2
Our price: $309.34 List price: $381.90
Gasket
- Ref No: 65
- Part No: 9910750040
- Qty Req: 1
Our price: $1.69 List price: $2.09
Washer
- Ref No: 66
- Part No: 9910881710
- Qty Req: 3
Our price: $1.39 List price: $1.71
O-Ring
- Ref No: 67
- Part No: 9910851360
- Qty Req: 1
Our price: $3.04 List price: $3.75
O-Ring
- Ref No: 68
- Part No: 99101400290
- Qty Req: 1
Our price: $4.33 List price: $5.35
O-Ring
- Ref No: 69
- Part No: 9910390210
- Qty Req: 8
Our price: $2.81 List price: $3.47
Spacer
- Ref No: 70
- Part No: 99101400090
- Qty Req: 1
Our price: $10.34 List price: $12.76
Spacer (0.1 mm)
- Ref No: 71
- Part No: 99101500330
- Qty Req: 1
Our price: $1.83 List price: $2.26
Spacer (0.2 mm)
- Ref No: 71
- Part No: 99101500340
- Qty Req: 1
Our price: $2.76 List price: $3.41
Replacement Ball Valve with Hose Barb for GS40GI Pressure Regulators
- Ref No: 72
- Part No: 9910KIT2497
- Qty Req: 1
Our price: $68.75 List price: $98.21
Dampener O-Ring
- Ref No: 73
- Part No: 9910650560
- Qty Req: 1
Our price: $2.77 List price: $3.42
Pump body
- Ref No: 74
- Part No: 99101500011
- Qty Req: 1
Our price: $848.24 List price: $1,047.21
Plate
- Ref No: 76
- Part No: 99101800311
- Qty Req: 1
Our price: $25.75 List price: $31.79
