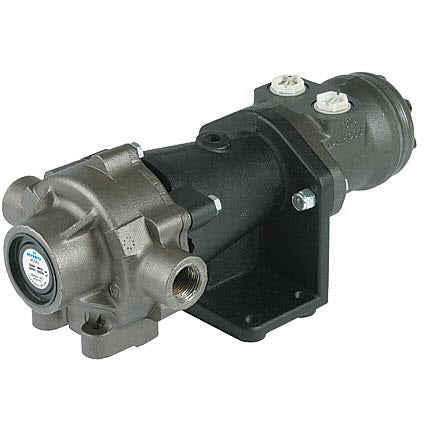

Hypro 7560N-GM30 Hydraulic Driven Roller

Hypro 7560N-GM30 Hydraulic Driven Roller

Brand:
Hypro
Weight:
25.0 lb
Item #
7560NGM30
Skip to product information
1 of 1

Hypro 7560N-GM30 Hydraulic Driven Roller

Hypro 7560N-GM30 Hydraulic Driven Roller

Brand:
Hypro
Weight:
25.0 lb
Item #
7560NGM30

Regular price $1,427.31
Sale price $1,427.31 Regular price List Price: $2,595.10

Earn 4,282 points with this purchase.

View full details

Collapsible content

Product Overview

The hydraulic driven roller pump from Hypro is designed to make industrial and agricultural spraying as simple and effective as possible. Because they are compatible with a large variety of different fluids, these pumps can be used in any situation that you face, from spraying insecticides or herbicides to liquid fertilizers or aromatic solvents. The rotary-action rollers have less friction and require less starting torque than competing agricultural pumps.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features

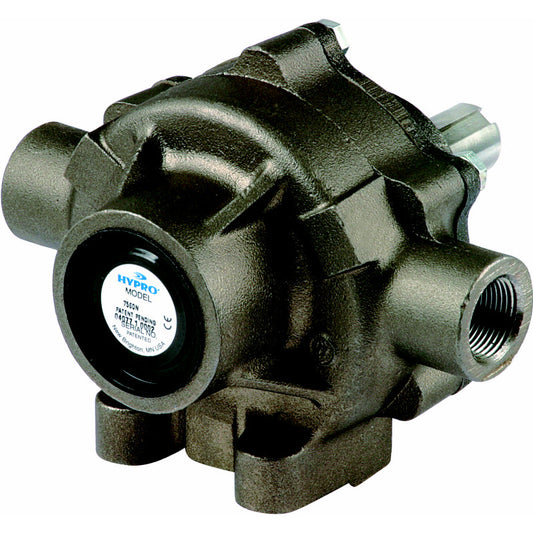

  • 7560N coupled to Hydraulic Motor
  • Max flow: 20.8 gpm
  • Max pressure: 300 psi
  • Max hydraulic flow: 12 gpm
  • Max rpm: 1000
  • Port sizes: 3/4" FNPT
  • Housing: Ni-Resist
  • Rotor: Ni-Resist
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 8
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • Max fluid temperature: 140°F
  • Weight: 32 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Cover
    • Ref No: 1
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $17.73 List price: $21.89
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $19.55 List price: $24.14
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $17.88 List price: $22.07
  • Body (Ni-Resist) with Seal
    • Ref No: 4
    • Part No: 01047500N
    • Qty Req: 1
    Our price: $367.29 List price: $453.44
  • O-Ring Gasket for Endplate
    • Ref No: 5
    • Part No: 17200014
    • Qty Req: 1
    Our price: $2.62 List price: $3.24
  • Super Roller (Standard)
    • Ref No: 6
    • Part No: 10050004
    • Qty Req: 8
    Our price: $4.34 List price: $5.36
  • Polypropylene Roller (Optional)
    • Ref No: 6
    • Part No: 10020004
    • Qty Req: 8
    Our price: $3.69 List price: $4.55
  • Buna-N Roller (Optional)
    • Ref No: 6
    • Part No: 10520004
    • Qty Req: 8
    Our price: $35.44 List price: $43.75
  • Teflon Rollers (Optional)
    • Ref No: 6
    • Part No: 10550004
    • Qty Req: 8
    Our price: $21.86 List price: $26.99
  • Rotor and Shaft Assembly
    • Ref No: 7
    • Part No: 34300745
    • Qty Req: 1
    Our price: $256.00 List price: $316.05
  • Key
    • Ref No: 8
    • Part No: 16100005
    • Qty Req: 1
    Our price: $1.91 List price: $2.36
  • Endplate (Ni-Resist) with Seal
    • Ref No: 9
    • Part No: 02047500N
    • Qty Req: 1
    Our price: $187.86 List price: $231.92
  • Shaft Bearing Cover
    • Ref No: 10
    • Part No: 23000022
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Spacer
    • Ref No: 11
    • Part No: 14100111
    • Qty Req: 1
    Our price: $9.56 List price: $11.80
  • Coupler
    • Ref No: 12
    • Part No: 05242500
    • Qty Req: 1
    Our price: $41.10 List price: $50.74
  • Mounting Flange
    • Ref No: 13
    • Part No: 07507500C
    • Qty Req: 1
    Our price: $280.28 List price: $346.02
  • Bolt
    • Ref No: 14
    • Part No: 18044a
    • Qty Req: 2
    Our price: $2.27 List price: $2.80
  • Hydraulic Motor
    • Ref No: 15
    • Part No: 25000028
    • Qty Req: 1
    Our price: $876.14 List price: $1,081.65
  • Spacer
    • Ref No: 17
    • Part No: 14100120
    • Qty Req: 3
    Our price: $9.71 List price: $11.99
  • Bolt
    • Ref No: 18
    • Part No: 11621
    • Qty Req: 3
    Our price: $0.69 List price: $0.85
  • Bolt
    • Ref No: 19
    • Part No: 22100004
    • Qty Req: 3
    Our price: $1.06 List price: $1.31
