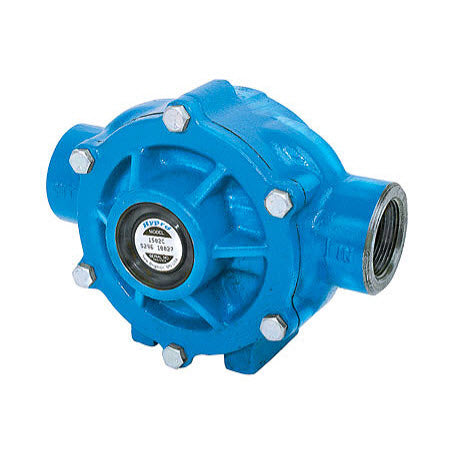

The reliable Hypro 1502C Roller Pump was designed to transfer a variety of fluids for both agricultural and industrial situations. Because this pump requires a lower starting torque and less friction, it can be mounted on a variety of vehicles. You may be able to use this product to spray liquid fertilizers, insecticides, emulsives, herbicides or aromatic solvents.

Hypro roller pumps are amongst the most widely used pumps in agriculture worldwide. These positive displacement pumps are self-priming so they can be easily located on the sprayer. Ideal for pumping agrochemicals and other non-abrasive liquids. Used in crop sprayers, disinfection systems and industrial cleaning systems.

Download Product Manual

• Max flow: 62 gpm
• Max pressure: 150 psi
• Max rpm: 1000
• Port sizes: 1-1/2" NPT
• Pump shaft rotation: CCW
• Housing: Cast iron
• Rotor: Cast iron
• Roller material: Super rollers standard, Poly and Teflon® available
• Roller quantity: 6
• Shaft seals: Viton® standard, Buna available
• Shaft: 15/16" solid stainless steel
• 33.1 gpm/125 lpm at 540 rpm
• 62.1 gpm/235 lpm at 1000 rpm
• Max fluid temperature: 140°F
• Weight: 30 lbs
