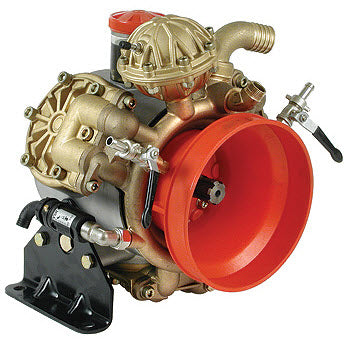

This Hypro/AR diaphragm pump works great for heavy-duty and high pressure use. It performs up to 37.8 GPM with a 725 PSI maximum. Featuring bronze external manifolds and brass heads, this diaphragm pump works wonderfully for chemical spraying situations that require more length to the spray or high pressure disinfecting. Maintenance is a breeze with the external manifold design and thanks to the strong industrial construction. The pump has a 1-1/2" HB inlet, _" outlet and 1-3/8" six splined male double-ended shaft.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts; however, the pump and repair parts are still available and will now feature factory labeling.

** When you order this pump, you will receive the most current version, BHS150-C/C**

Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting. These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners.

Download Product Manual

• Max flow: 37.7 gpm
• Max pressure: 725 psi
• Shaft: Dual 1-3/8" 6 spline male PTO shaft
• Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, Buna
• Housing: Die-cast aluminum
• Manifolds: Bronze (external)
• Head material: Brass
• Mounting base: Included
• Recommended control unit: 9910-GH50 or 9910-BMH50
• Max fluid temperature: 140°F
• Weight: 114 lbs
