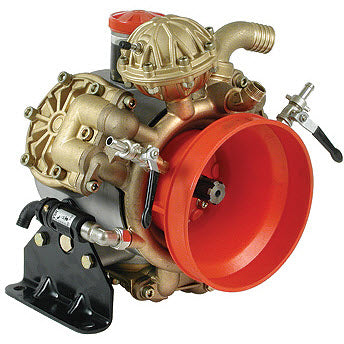

Hypro DBS140 Diaphragm Pump

Hypro DBS140 Diaphragm Pump

Brand:
Hypro
Weight:
114.0 lb
Item #
9910DBS140

Regular price $2,863.30
Sale price $2,863.30 Regular price List Price: $5,206.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 8,590 points with this purchase.

View full details

Collapsible content

Product Overview

This Hypro diaphragm pump works great for heavy-duty and high pressure use. It performs up to 37.8 GPM with a 725 PSI maximum. Featuring bronze external manifolds and brass heads, this diaphragm pump works wonderfully for chemical spraying situations that require more length to the spray or high pressure disinfecting. Maintenance is a breeze with the external manifold design and thanks to the strong industrial construction. The pump has a 1-1/2" HB inlet, _" outlet and 1-3/8" six splined male double-ended shaft.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Heavy-duty, high pressure diaphragm pumps. These industrial-built pumps are designed to handle all of your high pressure and volume diaphragm pump needs with minimal maintenance required. Their innovative, external manifold design allows for normal servicing to be done from one side of the pump, thereby eliminating the need for dismounting. These pumps are excellent for chemical spraying where higher pressures are desired, such as insecticide spraying, air blast and tall tree sprayers. They also work great for high pressure cleaning and disinfecting applications, such as poultry house cleaners.

Features

  • Max flow: 37.8 gpm
  • Max pressure: 725 psi
  • Shaft: Dual 1-3/8" 6 spline male PTO shaft
  • Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Buna
  • Housing: Die-cast aluminum
  • Manifolds: Bronze (external)
  • Head material: Brass
  • Mounting base: Included
  • Recommended control unit: 9910-GH50 or 9910-BMH50
  • Max fluid temperature: 140°F
  • Weight: 114 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Diaphragm pin
    • Ref No: 1
    • Part No: 99102240100
    • Qty Req: 3
    Our price: $14.04 List price: $17.33
  • Retaining washer
    • Ref No: 2
    • Part No: 9910580090
    • Qty Req: 3
    Our price: $9.14 List price: $11.29
  • Diaphragm, Buna
    • Ref No: 3
    • Part No: 99102240080
    • Qty Req: 3
    Our price: $38.94 List price: $48.07
  • Piston ring
    • Ref No: 5
    • Part No: 99102240360
    • Qty Req: 3
    Our price: $14.04 List price: $17.33
  • Piston
    • Ref No: 6
    • Part No: 99102240350
    • Qty Req: 3
    Our price: $47.84 List price: $59.06
  • Piston pin
    • Ref No: 7
    • Part No: 9910540070
    • Qty Req: 3
    Our price: $27.92 List price: $34.47
  • Retainer Ring
    • Ref No: 8
    • Part No: 9910160691
    • Qty Req: 6
    Our price: $2.72 List price: $3.36
  • Connecting rod
    • Ref No: 9
    • Part No: 99102240090
    • Qty Req: 3
    Our price: $123.84 List price: $152.89
  • Nut
    • Ref No: 10
    • Part No: 99102240110
    • Qty Req: 3
    Our price: $3.92 List price: $4.84
  • Red cap
    • Ref No: 11
    • Part No: 9910750050
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • O-Ring
    • Ref No: 12
    • Part No: 99101040060
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • Bolt
    • Ref No: 14
    • Part No: 9910540290
    • Qty Req: 3
    Our price: $2.98 List price: $3.68
  • Oil sight glass
    • Ref No: 15
    • Part No: 99102240070
    • Qty Req: 1
    Our price: $83.43 List price: $103.00
  • O-Ring
    • Ref No: 16
    • Part No: 99102240270
    • Qty Req: 1
    Our price: $2.99 List price: $3.69
  • Pump body
    • Ref No: 17
    • Part No: 99102240011
    • Qty Req: 1
    Our price: $821.48 List price: $1,014.17
  • Right head
    • Ref No: 18
    • Part No: 99102240030
    • Qty Req: 2
    Our price: $383.60 List price: $473.58
  • Bolt
    • Ref No: 19
    • Part No: 99102240180
    • Qty Req: 15
    Our price: $2.48 List price: $3.06
  • Bolt
    • Ref No: 20
    • Part No: 99102240220
    • Qty Req: 3
    Our price: $5.65 List price: $6.98
  • Base
    • Ref No: 22
    • Part No: 99102240190
    • Qty Req: 2
    Our price: $62.22 List price: $76.82
  • Bolt
    • Ref No: 23
    • Part No: 9910540100
    • Qty Req: 6
    Our price: $5.12 List price: $6.32
  • Plug
    • Ref No: 24
    • Part No: 9910820361
    • Qty Req: 2
    Our price: $8.69 List price: $10.73
  • Left head
    • Ref No: 25
    • Part No: 99102240031
    • Qty Req: 1
    Our price: $383.60 List price: $473.58
  • Air Valve
    • Ref No: 27
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • O-ring
    • Ref No: 28
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Bolt
    • Ref No: 29
    • Part No: 9910680350
    • Qty Req: 8
    Our price: $2.48 List price: $3.06
  • Upper air chamber
    • Ref No: 30
    • Part No: 99102240300
    • Qty Req: 1
    Our price: $152.40 List price: $188.15
  • Accumulator Diaphragm, Buna-N
    • Ref No: 31
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • Lower air chamber
    • Ref No: 33
    • Part No: 99102240310
    • Qty Req: 1
    Our price: $155.86 List price: $192.42
  • Nut
    • Ref No: 34
    • Part No: 9910380240
    • Qty Req: 8
    Our price: $1.51 List price: $1.86
  • O-Ring
    • Ref No: 35
    • Part No: 9910720030
    • Qty Req: 1
    Our price: $0.88 List price: $1.09
  • Elbow 1-1/2
    • Ref No: 36
    • Part No: 99102240210
    • Qty Req: 1
    Our price: $103.39 List price: $127.64
  • Ring nut
    • Ref No: 37
    • Part No: 99102240200
    • Qty Req: 1
    Our price: $21.41 List price: $26.43
  • O-Ring
    • Ref No: 38
    • Part No: 9910390210
    • Qty Req: 1
    Our price: $2.81 List price: $3.47
  • O-Ring
    • Ref No: 39
    • Part No: 9910680070
    • Qty Req: 6
    Our price: $4.23 List price: $5.22
  • Complete valve
    • Ref No: 40
    • Part No: 9910759051
    • Qty Req: 6
    Our price: $46.27 List price: $57.12
  • Outlet ball valve w/o barb
    • Ref No: 41
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $85.55 List price: $106.94
  • 1/2" Hose Barb & Nut
    • Ref No: 42
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $15.09 List price: $18.63
  • Valve elbow
    • Ref No: 43
    • Part No: 99102240260
    • Qty Req: 2
    Our price: $14.04 List price: $17.33
  • Oil drain plug
    • Ref No: 44
    • Part No: 24060023
    • Qty Req: 2
    Our price: $11.32 List price: $13.97
  • Bolt
    • Ref No: 45
    • Part No: 9910650330
    • Qty Req: 6
    Our price: $4.02 List price: $4.96
  • Oil drain plug
    • Ref No: 46
    • Part No: 9910880581
    • Qty Req: 1
    Our price: $5.03 List price: $6.21
  • O-Ring
    • Ref No: 47
    • Part No: 9910820510
    • Qty Req: 1
    Our price: $0.65 List price: $0.80
  • Pump Manifold
    • Ref No: 48
    • Part No: 99102240040
    • Qty Req: 1
    Our price: $1,650.89 List price: $2,038.14
  • Bolt
    • Ref No: 49
    • Part No: 9910850250
    • Qty Req: 4
    Our price: $1.89 List price: $2.33
  • Washer
    • Ref No: 50
    • Part No: 9910390311
    • Qty Req: 4
    Our price: $2.56 List price: $3.16
  • Shield, 239mm
    • Ref No: 51
    • Part No: 99101500470
    • Qty Req: 1
    Our price: $69.60 List price: $85.93
  • Outlet elbow
    • Ref No: 52
    • Part No: 9910851650
    • Qty Req: 1
    Our price: $28.58 List price: $35.28
  • Replacement Ball Valve with Hose Barb for GS40GI Pressure Regulators
    • Ref No: 53
    • Part No: 9910KIT2497
    • Qty Req: 1
    Our price: $68.75 List price: $98.21
  • Threaded adapter
    • Ref No: 54
    • Part No: 9910881461
    • Qty Req: 1
    Our price: $13.83 List price: $17.07
  • Snap ring
    • Ref No: 60
    • Part No: 99102240160
    • Qty Req: 2
    Our price: $5.71 List price: $7.05
  • Seal ring
    • Ref No: 61
    • Part No: 99102240150
    • Qty Req: 2
    Our price: $12.17 List price: $15.03
  • Bearing
    • Ref No: 62
    • Part No: 99102240430
    • Qty Req: 2
    Our price: $114.79 List price: $141.71
  • Con rod ring
    • Ref No: 63
    • Part No: 99102240121
    • Qty Req: 2
    Our price: $104.78 List price: $129.36
  • Roller bearing
    • Ref No: 64
    • Part No: 9910850320
    • Qty Req: 2
    Our price: $255.61 List price: $315.57
  • Crankshaft
    • Ref No: 65
    • Part No: 99102240173
    • Qty Req: 1
    Our price: $398.07 List price: $491.45
  • O-ring
    • Ref No: 66
    • Part No: 99102240290
    • Qty Req: 1
    Our price: $6.84 List price: $8.44
  • Flange
    • Ref No: 67
    • Part No: 99102240020
    • Qty Req: 1
    Our price: $166.88 List price: $206.03
  • Bolt
    • Ref No: 68
    • Part No: 9910160670
    • Qty Req: 6
    Our price: $3.06 List price: $3.78
