Hypro 9306S-HM5C-3U Centrifugal Pump

Hypro centrifugal pumps are designed for creating and boosting pressure in fluid circuits. The pump operates by taking in fluid from the inlet port after which it is slung by the impeller and expelled through the outlet port. Construction features include housings, impellers and seals which come in a variety of materials in order to be resistant to a range of chemicals. Standard models of centrifugal pumps rotate clockwise, when looking at the shaft end of the pump.

Download Product Manual

• Hydraulic motor drive (for open center, closed center, and load-sensing systems)
• Port sizes: 300 X 220 universal flange
• Max flow: 312 gpm
• Max pressure: 140 psi
• Housing: Stainless Steel
• Impeller: Polypropylene (GTX available)
• Pump seals: Stainless Steel models Life Guard silicon carbide

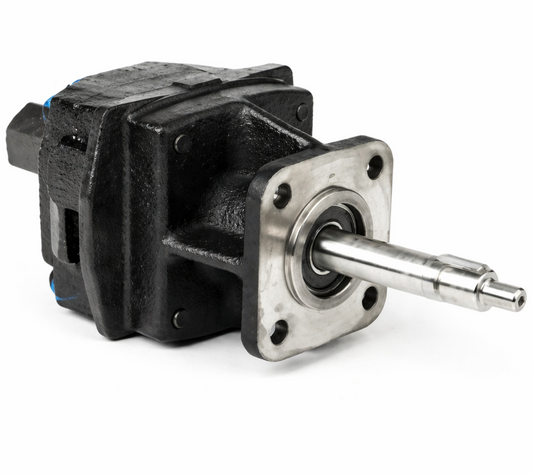

• Motor: internal gear gerotor
• Motor capacities: 9-24 gpm, HM1C: 9-14 gpm, HM3C: 17-24 gpm, HM5C: 13-18 gpm
• Max. motor psi: 3000 continuous duty
• Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet
• Hydraulic motor seal: double-lip PTFE and case drain available
