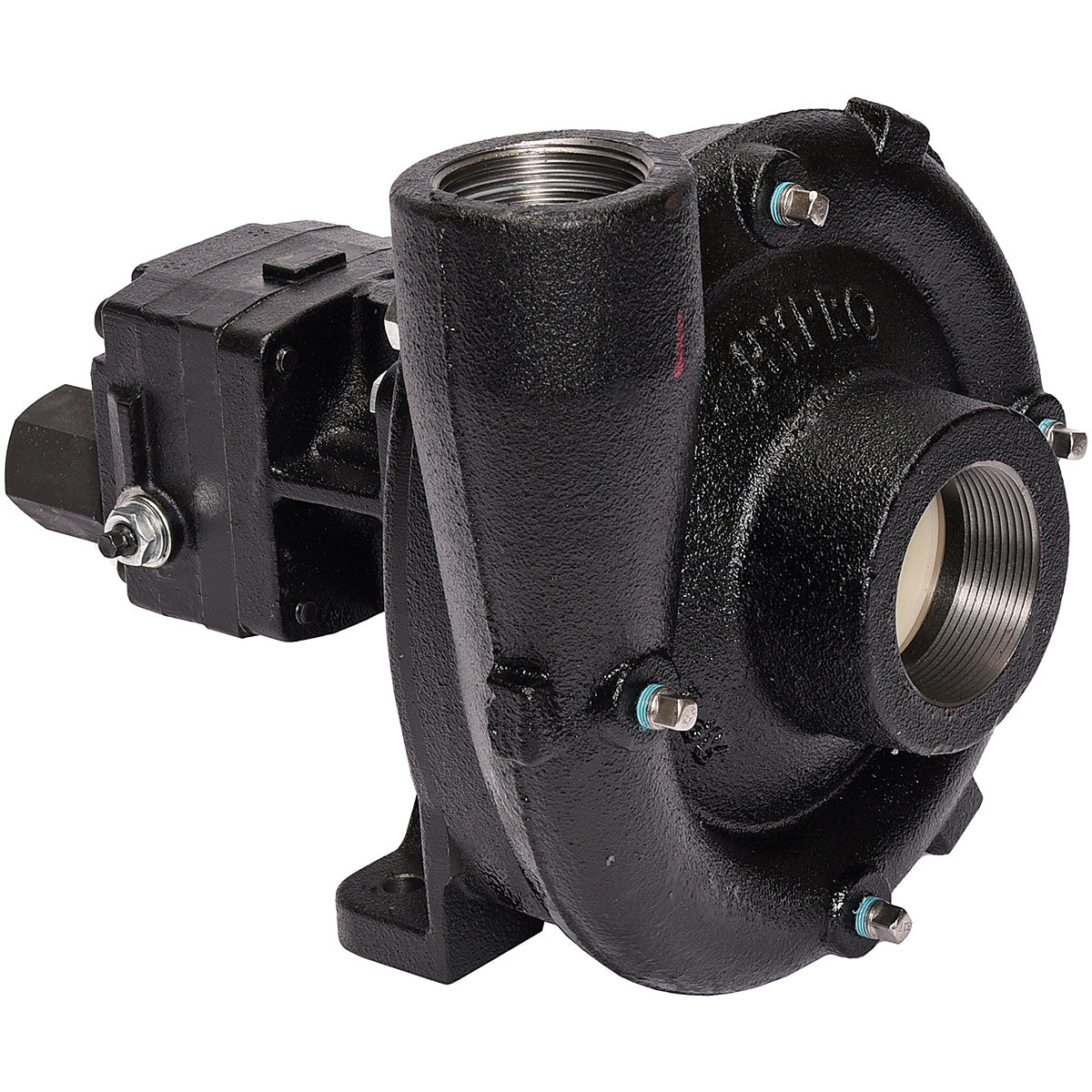

Hypro 9306C-HM5C Centrifugal Pump

Hypro 9306C-HM5C Centrifugal Pump

2 reviews
Item Code:
9306CHM5C
Weight:
33.0 lb
Manufacturer:
Hypro
Our price:
$1,129.25
List price:
$2,053.18
Overview:

The Hypro 9306C-HM5C Centrifugal Pump is designed to provide smooth performance for a wide variety of industrial and agricultural spraying jobs. It can handle water as well as many other types of fluids including herbicides, insecticides, liquid fertilizers, emulsives and wettable powders. This model can be directly mounted on a tractor or sprayer and become part of the hydraulic system.

Manufacturer Description:

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes models 9306C-HM1C, 9306S-HM1C, 9306C-HM3C, 9306S-HM3C, 9306C-HM5C, and 9306S-HM5C.

Features:

  • Max flow: 212 gpm
  • Max pressure: 140 psi
  • Port sizes: 2" FNPT inlet, 1-1/2" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Hydraulic system: Open/Closed, Max 17 gpm
  • Hydraulic motor ports: 1/2"" NPT inlet, 3/4"" NPT outlet
  • Hydraulic motor seal: Double-lip Teflon®
  • Max fluid temperature: 140°F
  • Weight: 33 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 2
  • Part No: 01549200C1
  • Qty Req: 1
Our price: $392.83 List price: $484.97
  • Ref No: 5
  • Part No: 17200083
  • Qty Req: 1
Our price: $3.94 List price: $4.87
  • Ref No: 6
  • Part No: 17000100
  • Qty Req: 1
Our price: $5.47 List price: $6.75
  • Ref No: 8
  • Part No: 07509300C2
  • Qty Req: 1
Our price: $135.73 List price: $167.57
  • Ref No: 9
  • Part No: 22100020
  • Qty Req: 4
Our price: $1.06 List price: $1.31
  • Ref No: 10
  • Part No: 14100056
  • Qty Req: 1
Our price: $1.46 List price: $1.80
  • Ref No: 11
  • Part No: 18100014
  • Qty Req: 1
Our price: $1.21 List price: $1.49
  • Ref No: 12
  • Part No: 18200013
  • Qty Req: 1
Our price: $1.39 List price: $1.72
  • Ref No: 13
  • Part No: 20000010
  • Qty Req: 1
Our price: $11.97 List price: $14.78
  • Ref No: 14
  • Part No: 14100131
  • Qty Req: 1
Our price: $13.36 List price: $16.49
  • Ref No: 15
  • Part No: 17200268
  • Qty Req: 2
Our price: $1.56 List price: $1.93
  • Ref No: 17
  • Part No: 14100130
  • Qty Req: 1
Our price: $7.29 List price: $9.00
  • Ref No: 19
  • Part No: 05332500
  • Qty Req: 1
Our price: $198.62 List price: $245.21
  • Ref No: 21
  • Part No: 22100005
  • Qty Req: 4
Our price: $0.88 List price: $1.09
  • Ref No: 22
  • Part No: 17200110
  • Qty Req: 2
Our price: $1.39 List price: $1.72
  • Ref No: 25
  • Part No: 39000048
  • Qty Req: 1
Our price: $217.39 List price: $268.38
  • Ref No: 28
  • Part No: 22700039
  • Qty Req: 4
Our price: $1.16 List price: $1.43
  • Ref No: 30
  • Part No: 17200108
  • Qty Req: 1
Our price: $1.21 List price: $1.49
  • Ref No: 35
  • Part No: 17000047
  • Qty Req: 1
Our price: $4.75 List price: $5.86
  • Ref No: 36
  • Part No: 22700027
  • Qty Req: 1
Our price: $2.05 List price: $2.53
  • Ref No: 37
  • Part No: 22500038
  • Qty Req: 1
Our price: $1.16 List price: $1.43
  • Ref No: 39
  • Part No: 18100026
  • Qty Req: 1
Our price: $1.22 List price: $1.50
