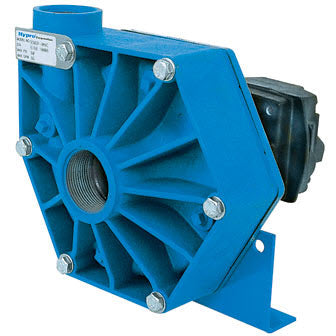

Hypro 9303P-HM1C Centrifugal Pump

Hypro 9303P-HM1C Centrifugal Pump

Brand:
Hypro
Weight:
21.0 lb
Item #
9303PHM1C

Regular price $1,017.02
Sale price $1,017.02 Regular price List Price: $1,849.12

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,051 points with this purchase.

View full details

Collapsible content

Product Overview

The Hypro 9303P-HM1C Centrifugal Pump is one of the most efficient tools at your disposal when you need to transfer corrosive liquids like fertilzers, wettable powders, emulsives, insecticides, herbicides, sulfuric and phosphoric acids and much more. Not only does it serve you in all of these applications, but its compact build makes it very easy to mount on vehicles when compared to other pumps.

Manufacturer description

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Polypropylene may also be used to pump acid fertilizer, calcium chloride and other highly corrosive liquids such as sulfuric and phosphoric acids. Hypro hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

Features

  • Max flow: 110 gpm
  • Max pressure: 130 psi
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Polypropylene
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Glass-filled polypropylene
  • Hydraulic system: Open/Closed, Max 13 gpm
  • Hydraulic motor ports: 1/2" NPT inlet, 3/4" NPT outlet
  • Hydraulic motor seal: Double-lip Teflon®
  • Max fluid temperature: 140°F
  • Weight: 21 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Hex Head Cap Screw
    • Ref No: 1
    • Part No: 22100087
    • Qty Req: 4
    Our price: $1.39 List price: $1.72
  • Hex Head Cap Screw (Base Only)
    • Ref No: 2
    • Part No: 22100016
    • Qty Req: 2
    Our price: $1.43 List price: $1.77
  • Washer
    • Ref No: 3
    • Part No: 22700041
    • Qty Req: 6
    Our price: $1.21 List price: $1.49
  • Pipe Plug
    • Ref No: 4
    • Part No: 24060020
    • Qty Req: 4
    Our price: $9.66 List price: $11.93
  • Pump Casing
    • Ref No: 5
    • Part No: 07009000P
    • Qty Req: 1
    Our price: $52.29 List price: $64.55
  • Impeller Nut
    • Ref No: 6
    • Part No: 22500052
    • Qty Req: 1
    Our price: $1.83 List price: $2.26
  • Jam Nut
    • Ref No: 7
    • Part No: 22500051
    • Qty Req: 1
    Our price: $2.37 List price: $2.92
  • Gasket (Viton)
    • Ref No: 8
    • Part No: 17000097
    • Qty Req: 1
    Our price: $8.61 List price: $10.63
  • Washer
    • Ref No: 9
    • Part No: 22700057
    • Qty Req: 1
    Our price: $2.56 List price: $3.16
  • Impeller, Poly (9203S, 9302S & 9303P)
    • Ref No: 10
    • Part No: 04029100P
    • Qty Req: 1
    Our price: $61.53 List price: $75.96
  • Gasket
    • Ref No: 11
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • Mechanical Seal (Stainless Series)
    • Ref No: NA
    • Part No: 21200039
    • Qty Req: 0
    Our price: $111.20 List price: $139.00
  • Mechanical Seal (Silicon Carbide) (Opt.)
    • Ref No: 12
    • Part No: 34300593
    • Qty Req: 1
    Our price: $279.17 List price: $344.66
  • O-Ring
    • Ref No: 13
    • Part No: 17210083
    • Qty Req: 1
    Our price: $18.83 List price: $23.25
  • Cover
    • Ref No: 14
    • Part No: 07509300P
    • Qty Req: 1
    Our price: $23.26 List price: $28.71
  • Screw
    • Ref No: 15
    • Part No: 22100088
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Intermediate Flange
    • Ref No: 16
    • Part No: 07509006C
    • Qty Req: 1
    Our price: $225.63 List price: $278.56
  • Base Plate
    • Ref No: 17
    • Part No: 15100063
    • Qty Req: 1
    Our price: $40.57 List price: $50.09
  • Hex Nut
    • Ref No: 18
    • Part No: 22500008
    • Qty Req: 2
    Our price: $1.85 List price: $2.29
  • Slinger Seal
    • Ref No: 19
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.46 List price: $1.80
  • Snap Ring
    • Ref No: 20
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Retainer Ring
    • Ref No: 21
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.39 List price: $1.72
  • Ball Bearing for Hypro Pumps
    • Ref No: 22
    • Part No: 20000010
    • Qty Req: 1
    Our price: $11.97 List price: $14.78
  • Thrust Bearing Assembly
    • Ref No: 27
    • Part No: 20290014
    • Qty Req: 1
    Our price: $34.77 List price: $42.92
  • Woodruff Key (All Except HM3C)
    • Ref No: 28
    • Part No: 16100042
    • Qty Req: 1
    Our price: $7.61 List price: $9.40
  • Snap Ring
    • Ref No: 30
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Roll Pin (HM1C & HM5C Models)
    • Ref No: 31
    • Part No: 16100031
    • Qty Req: 1
    Our price: $5.02 List price: $6.20
  • Hex Head Cap Screw
    • Ref No: 33
    • Part No: 22100021
    • Qty Req: 4
    Our price: $1.09 List price: $1.34
  • O-Ring
    • Ref No: 34
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.39 List price: $1.72
  • Dowel Pin (HM1C & HM5C Models)
    • Ref No: 35
    • Part No: 16000044
    • Qty Req: 1
    Our price: $20.64 List price: $25.48
  • Dowel Pin (HM1C Model & HM5C Models)
    • Ref No: 36
    • Part No: 16000037
    • Qty Req: 1
    Our price: $20.64 List price: $25.48
  • Gerotor (HM1C Model)
    • Ref No: 37
    • Part No: 39000022
    • Qty Req: 1
    Our price: $214.07 List price: $264.29
  • Gerotor Housing 1/2" Wide (HM1C Model)
    • Ref No: 38
    • Part No: 07002500C1
    • Qty Req: 1
    Our price: $137.93 List price: $170.29
  • Motor End Plate, Includes Needle Bearing
    • Ref No: 39
    • Part No: 02542500C2
    • Qty Req: 1
    Our price: $160.01 List price: $197.54
  • Washer
    • Ref No: 40
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.16 List price: $1.43
  • Cap Screw (HM1C)
    • Ref No: 41
    • Part No: 22200021
    • Qty Req: 4
    Our price: $2.08 List price: $2.57
  • Tank Port Adapter (Includes O-Ring)
    • Ref No: 44
    • Part No: 33200051A
    • Qty Req: 1
    Our price: $48.00 List price: $59.26
  • Gasket
    • Ref No: 47
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.75 List price: $5.86
  • Washer
    • Ref No: 48
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.05 List price: $2.53
