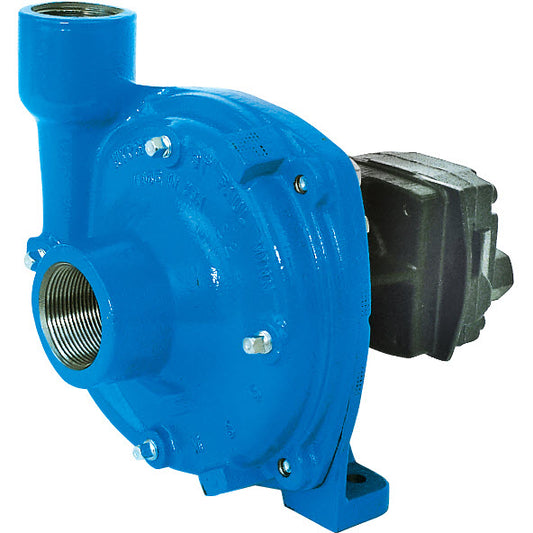

Hypro 9303C-HM1C Centrifugal Pump

Hypro 9303C-HM1C Centrifugal Pump

2 reviews
Item Code:
9303CHM1C
Weight:
26.05 lb
Manufacturer:
Hypro
Our price:
$973.48
List price:
$1,769.97
Overview:

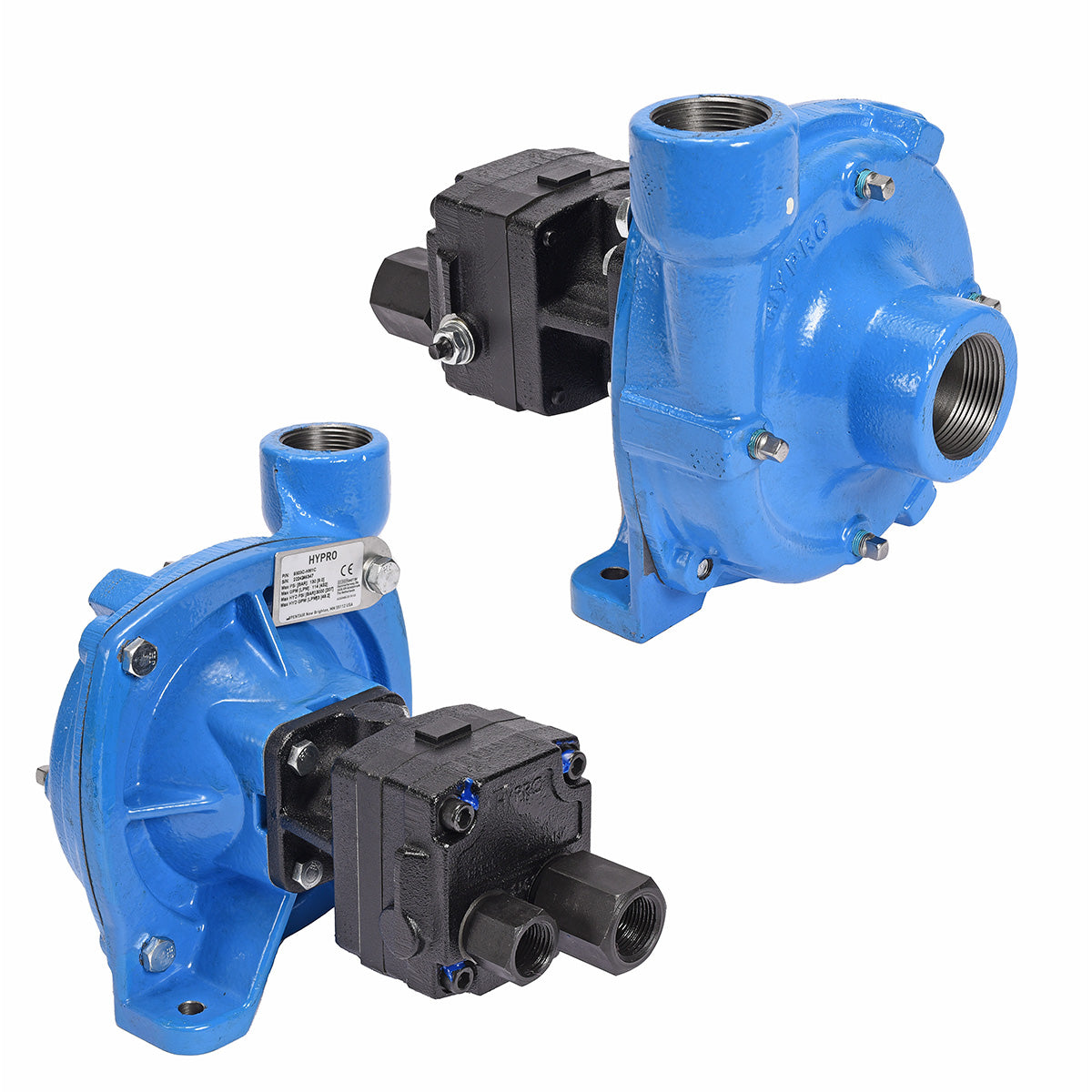

The 9300 series of hydraulic pumps is designed with centrifugal force to provide smooth performance, and the Hypro 9303C-HM1C Centrifugal Pump is no exception. The mount works on many tractor and sprayer models for use in agriculture or industry. The cast iron and stainless steel housings can stand up to most strong chemicals and herbicides.

Manufacturer Description:

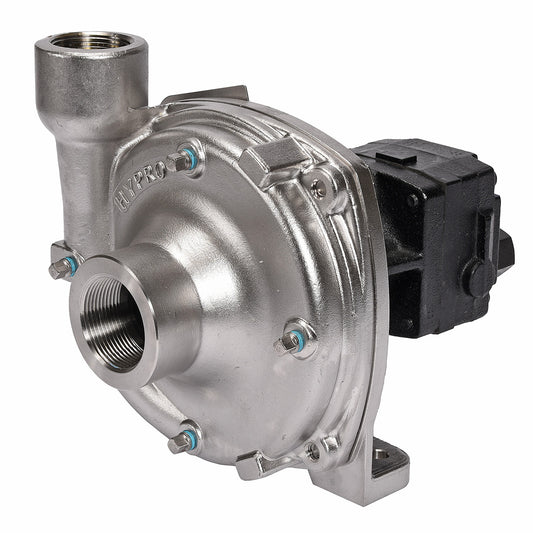

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes models 9303C-HM1C, 9303S-HM1C, 9303C-HM2C, 9303S-HM2C, 9303C-HM3C, 9303S-HM3C, 9303C-HM4C, 9303S-HM4C, 9303C-HM5C, and 9303S-HM5C.

Features:

  • Max flow: 114 gpm
  • Max pressure: 130 psi
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon

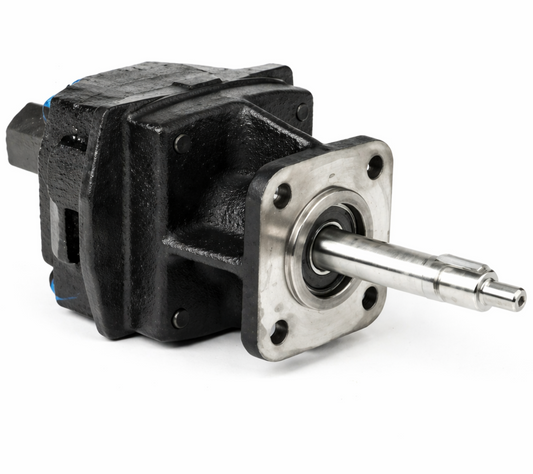

  • Hydraulic system: Open/Closed, Max 13 gpm
  • Hydraulic motor ports: 1/2" NPT inlet, 3/4" NPT outlet
  • Hydraulic motor seal: Double-lip Teflon®
  • Max fluid temperature: 140°F
  • Weight: 26 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 4
  • Part No: 04019100P
  • Qty Req: 1
Our price: $55.73 List price: $68.80
  • Ref No: 5
  • Part No: 17200083
  • Qty Req: 1
Our price: $3.94 List price: $4.87
  • Ref No: 6
  • Part No: 17000100
  • Qty Req: 1
Our price: $5.47 List price: $6.75
  • Ref No: 8
  • Part No: 07509300C
  • Qty Req: 1
Our price: $146.08 List price: $180.34
  • Ref No: 9
  • Part No: 22100020
  • Qty Req: 4
Our price: $1.06 List price: $1.31
  • Ref No: 10
  • Part No: 14100056
  • Qty Req: 1
Our price: $1.46 List price: $1.80
  • Ref No: 11
  • Part No: 18100014
  • Qty Req: 1
Our price: $1.21 List price: $1.49
  • Ref No: 12
  • Part No: 18200013
  • Qty Req: 1
Our price: $1.39 List price: $1.72
  • Ref No: 13
  • Part No: 20000010
  • Qty Req: 1
Our price: $11.97 List price: $14.78
  • Ref No: 14
  • Part No: 14100131
  • Qty Req: 1
Our price: $13.36 List price: $16.49
  • Ref No: 15
  • Part No: 17200268
  • Qty Req: 2
Our price: $1.56 List price: $1.93
  • Ref No: 17
  • Part No: 14100130
  • Qty Req: 1
Our price: $7.29 List price: $9.00
  • Ref No: 19
  • Part No: 05332500
  • Qty Req: 1
Our price: $198.62 List price: $245.21
  • Ref No: 21
  • Part No: 22100005
  • Qty Req: 4
Our price: $0.88 List price: $1.09
  • Ref No: 22
  • Part No: 17200110
  • Qty Req: 2
Our price: $1.39 List price: $1.72
  • Ref No: 25
  • Part No: 39000022
  • Qty Req: 1
Our price: $214.07 List price: $264.29
  • Ref No: 28
  • Part No: 22700039
  • Qty Req: 4
Our price: $1.16 List price: $1.43
  • Ref No: 29
  • Part No: 22200021
  • Qty Req: 4
Our price: $2.08 List price: $2.57
  • Ref No: 30
  • Part No: 17200108
  • Qty Req: 1
Our price: $1.21 List price: $1.49
  • Ref No: 35
  • Part No: 17000047
  • Qty Req: 1
Our price: $4.75 List price: $5.86
  • Ref No: 36
  • Part No: 22700027
  • Qty Req: 1
Our price: $2.05 List price: $2.53
  • Ref No: 37
  • Part No: 22500038
  • Qty Req: 1
Our price: $1.16 List price: $1.43
  • Ref No: 39
  • Part No: 18100026
  • Qty Req: 1
Our price: $1.22 List price: $1.50
