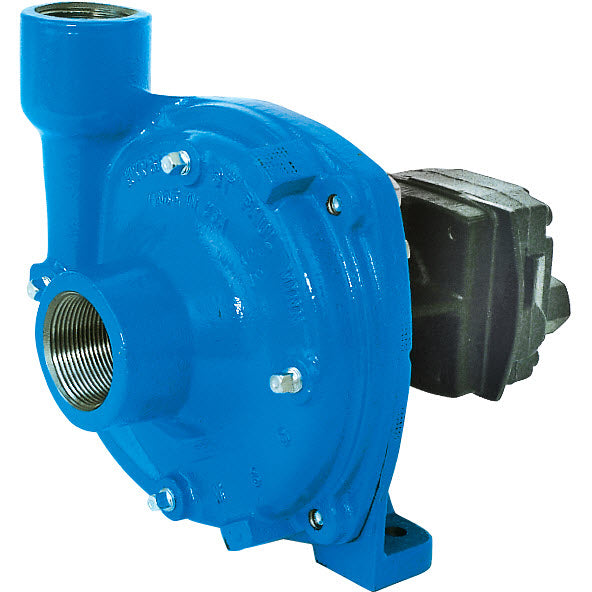

Hypro 9302C-HM1C Centrifugal Pump

Hypro 9302C-HM1C Centrifugal Pump

Brand:
Hypro
Weight:
26.0 lb
Item #
9302CHM1C

Regular price $953.65
Sale price $953.65 Regular price List Price: $1,733.90

Earn 2,861 points with this purchase.

View full details

Collapsible content

Product Overview

This Hypro 9302C-HM1C Centrifugal Pump is tooled for low-pressure spraying in many kinds of agricultural settings. With a pressure rating of 150 PSI and a flow rate of 72 GPM, it's an ideal choice for deploying herbicides and insecticides as well as water, emulsives, liquid fertilizers and wettable powders. Its sturdy housing is built to withstand strong chemicals, which also makes it perfect for agricultural use.

Manufacturer description

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes models 9302C-HM1C, 9302S-HM1C, 9302C-HM2C, 9302S-HM2C, 9302C-HM4C, 9302S-HM4C.

Features

  • Max flow: 72 gpm
  • Max pressure: 150 psi
  • Port sizes: 1-1/4" FNPT inlet, 1" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Hydraulic system: Open/Closed, Max 13 gpm
  • Hydraulic motor ports: 1/2" NPT inlet, 3/4" NPT outlet
  • Hydraulic motor seal: Double-lip Teflon®
  • Max fluid temperature: 140°F
  • Weight: 26 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing
    • Ref No: 2
    • Part No: 01509200C
    • Qty Req: 1
    Our price: $274.06 List price: $338.35
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.43 List price: $7.94
  • Impeller, Nylon
    • Ref No: 4
    • Part No: 04019100P
    • Qty Req: 1
    Our price: $55.73 List price: $68.80
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $3.94 List price: $4.87
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300332
    • Qty Req: 1
    Our price: $65.94 List price: $81.41
  • Mounting Flange
    • Ref No: 8
    • Part No: 07509300C
    • Qty Req: 1
    Our price: $146.08 List price: $180.34
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.46 List price: $1.80
  • Retainer Ring
    • Ref No: 11
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.39 List price: $1.72
  • Snap Ring
    • Ref No: 12
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Ball Bearing for Hypro Pumps
    • Ref No: 13
    • Part No: 20000010
    • Qty Req: 1
    Our price: $11.97 List price: $14.78
  • Spacer
    • Ref No: 14
    • Part No: 14100073
    • Qty Req: 1
    Our price: $4.70 List price: $5.80
  • Shaft Seal
    • Ref No: 15
    • Part No: 21040005
    • Qty Req: 1
    Our price: $0.00 List price: $0.00
  • Seal Spacer
    • Ref No: 16
    • Part No: 14100074
    • Qty Req: 1
    Our price: $1.48 List price: $1.83
  • Thrust Bearing Assembly
    • Ref No: 17
    • Part No: 20290014
    • Qty Req: 1
    Our price: $34.77 List price: $42.92
  • Snap Ring
    • Ref No: 18
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Shaft 7" Long (HM1C)
    • Ref No: 19
    • Part No: 05112501
    • Qty Req: 1
    Our price: $198.62 List price: $245.21
  • Motor Body (9302C-HM1C/HM2C/HM3C)
    • Ref No: 20
    • Part No: 01512500C
    • Qty Req: 1
    Our price: $150.81 List price: $186.18
  • Bolt
    • Ref No: 21
    • Part No: 22100005
    • Qty Req: 4
    Our price: $0.88 List price: $1.09
  • O-Ring
    • Ref No: 22
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.39 List price: $1.72
  • Gerotor Housing 1/2" Wide (HM1C Model)
    • Ref No: 23
    • Part No: 07002500C1
    • Qty Req: 1
    Our price: $137.93 List price: $170.29
  • Dowel Pin (HM1C & HM5C Models)
    • Ref No: 24
    • Part No: 16000044
    • Qty Req: 1
    Our price: $20.64 List price: $25.48
  • Dowel Pin (HM1C Model & HM5C Models)
    • Ref No: 25
    • Part No: 16000037
    • Qty Req: 1
    Our price: $20.64 List price: $25.48
  • Gerotor (HM1C Model)
    • Ref No: 26
    • Part No: 39000022
    • Qty Req: 1
    Our price: $214.07 List price: $264.29
  • Motor End Plate
    • Ref No: 27
    • Part No: 02512500C2
    • Qty Req: 1
    Our price: $126.00 List price: $126.00
  • Washer
    • Ref No: 28
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.16 List price: $1.43
  • Cap Screw (HM1C)
    • Ref No: 29
    • Part No: 22200021
    • Qty Req: 4
    Our price: $2.08 List price: $2.57
  • O-Ring
    • Ref No: 30
    • Part No: 17200108
    • Qty Req: 2
    Our price: $1.21 List price: $1.49
  • Pressure Port Adapter
    • Ref No: 31
    • Part No: 33600021
    • Qty Req: 1
    Our price: $14.87 List price: $18.36
  • Poppet
    • Ref No: 32
    • Part No: 32600068
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • Tank Port Adapter
    • Ref No: 34
    • Part No: 33200049
    • Qty Req: 1
    Our price: $25.72 List price: $31.75
  • Bypass Adjusting Screw
    • Ref No: 35
    • Part No: 32200029
    • Qty Req: 1
    Our price: $9.91 List price: $12.23
  • Gasket
    • Ref No: 36
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.75 List price: $5.86
  • Washer
    • Ref No: 37
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.05 List price: $2.53
  • Lock Nut
    • Ref No: 38
    • Part No: 22500038
    • Qty Req: 1
    Our price: $1.16 List price: $1.43
  • Roll Pin (HM1C & HM5C Models)
    • Ref No: 39
    • Part No: 16100031
    • Qty Req: 1
    Our price: $5.02 List price: $6.20
  • Woodruff Key**(1) 540 rpm (2) 1000rpm
    • Ref No: 40
    • Part No: 16100012
    • Qty Req: 1
    Our price: $1.42 List price: $1.75
