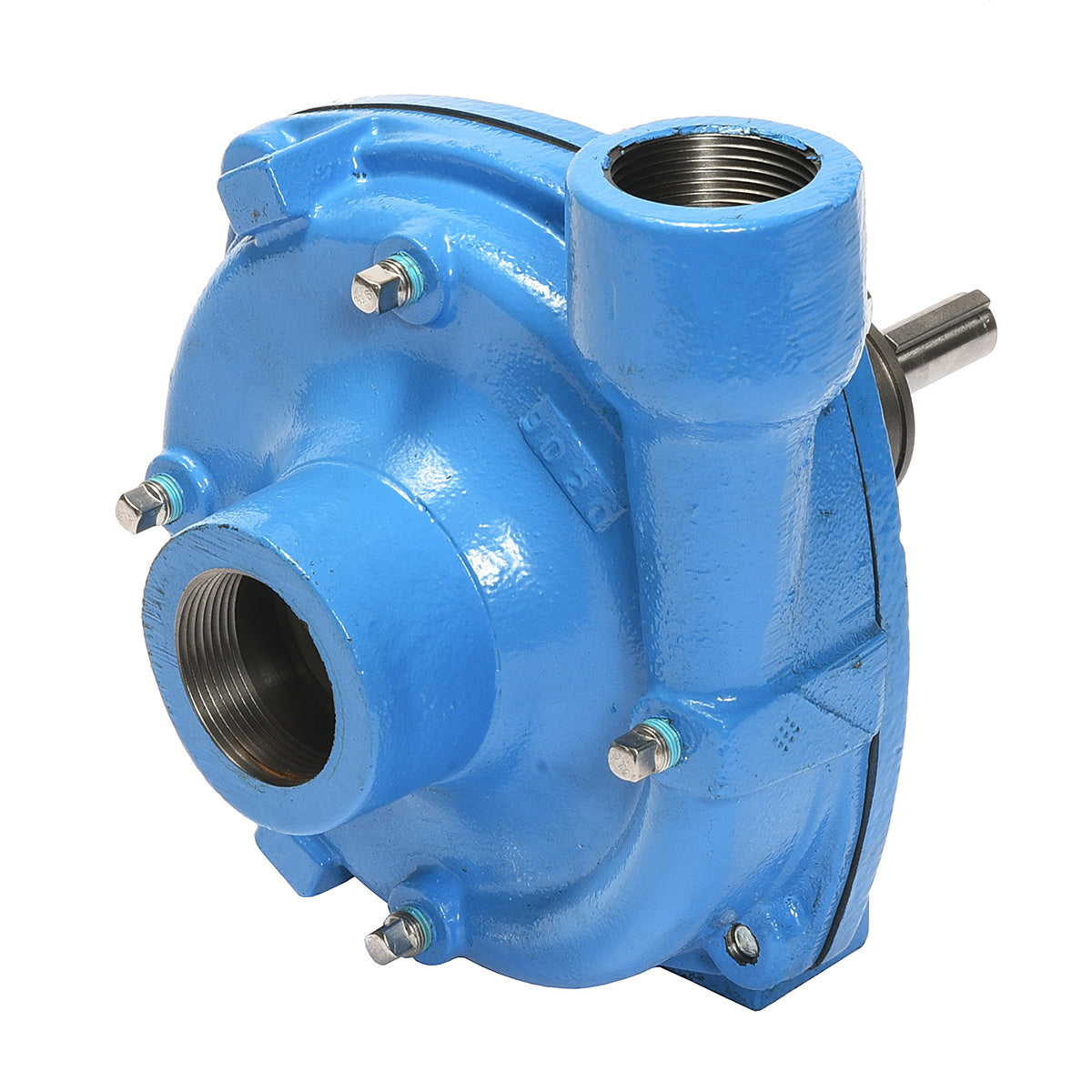

Hypro 9203C-R Centrifugal Pump

Hypro 9203C-R Centrifugal Pump

Brand:
Hypro
Weight:
16.5 lb
Item #
9203CR
Skip to product information
1 of 1

Hypro 9203C-R Centrifugal Pump

Hypro 9203C-R Centrifugal Pump

Brand:
Hypro
Weight:
16.5 lb
Item #
9203CR

Regular price $449.71
Sale price $449.71 Regular price List Price: $817.66

Earn 1,349 points with this purchase.

View full details

Collapsible content

Product Overview

Even the biggest spraying jobs are made easy with the aid of the Hypro 9203C-R Centrifugal Pump. Typical functions that can benefit from this pump include transferring high volumes of liquids and watering seed beds. Virtually any chemical can go through the pump because it is constructed out of high quality cast iron. From herbicides and liquid fertilizers, this pump can handle practically anything.

Manufacturer description

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid application.

Features

  • Max flow: 140 gpm
  • Max pressure: 170 psi
  • Max speed: 6000 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Shaft: 5/8" solid
  • Pump shaft rotation: CW
  • Max fluid temperature: 140°F
  • Weight: 19 lbs
