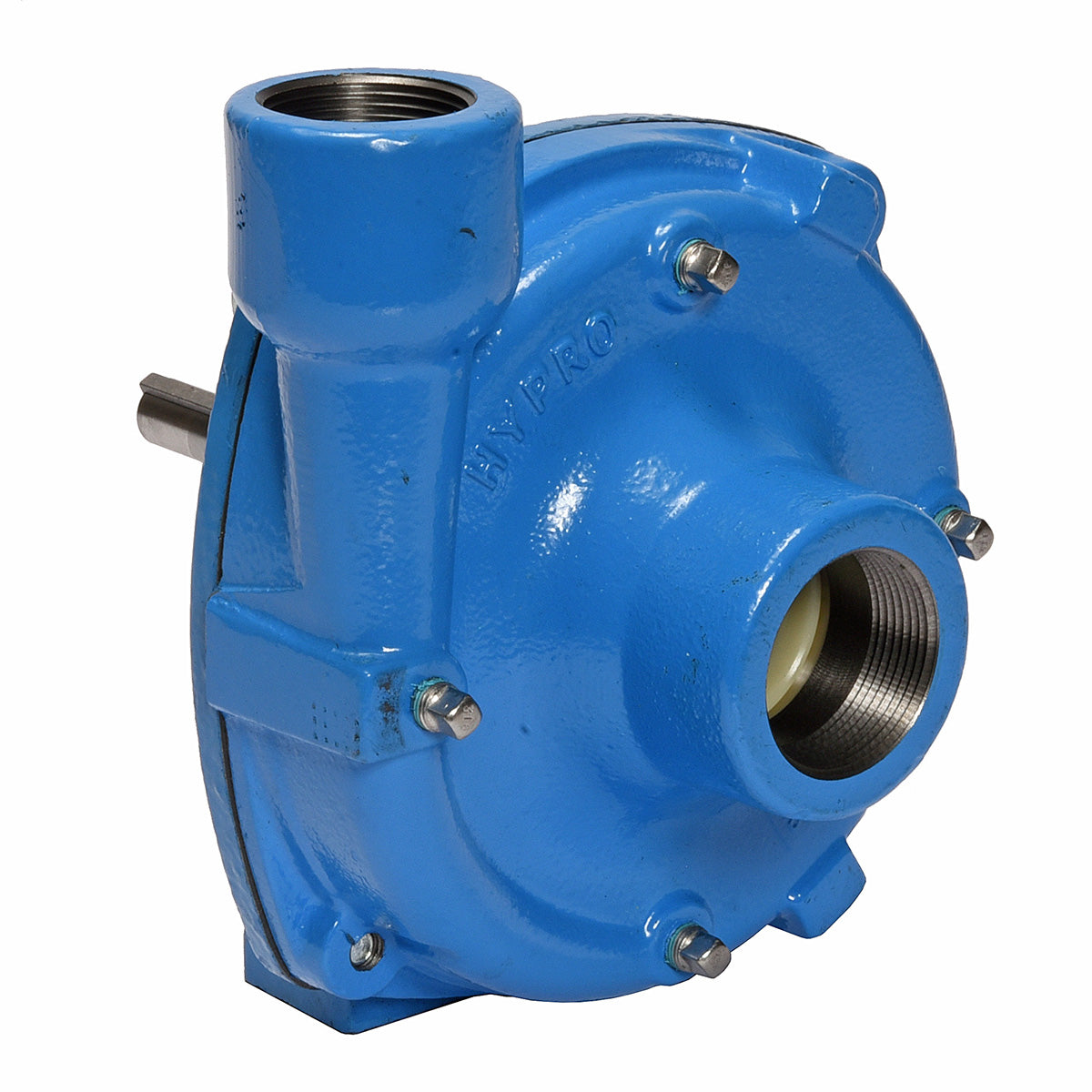

Hypro 9203C Centrifugal Pump

Hypro 9203C Centrifugal Pump

5 reviews
Item Code:
9203C
Weight:
17.0 lb
Manufacturer:
Hypro
Our price:
$418.12
List price:
$760.22
Overview:

The Centrifugal Pump from Hypro is rugged enough to stand up to corrosive chemical herbicides and the steel construction makes it perfect for extended use. Any agricultural spraying job is well within Hypro's capabilities, whether it is distributing liquid fertilizers, insect repellant, or weed control slurries. In addition to spraying, the centrifugal pump can tackle other jobs, such as filling nurse tanks or transferring liquids easily.

Manufacturer Description:

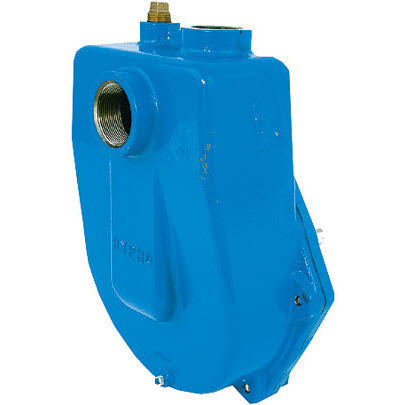

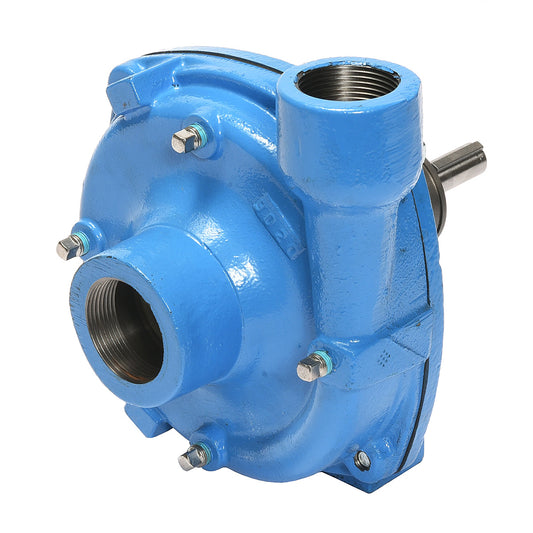

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid application. The series includes models 9203C, 9203S, 9203C-R, and 9203S-R.

Features:

  • Max flow: 140 gpm
  • Max pressure: 170 psi
  • Max speed: 6000 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Shaft: 5/8" solid
  • Pump shaft rotation: CCW
  • Max fluid temperature: 140°F
  • Weight: 19 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 4
  • Part No: 04019100P
  • Qty Req: 1
Our price: $53.07 List price: $65.52
  • Ref No: 6
  • Part No: 17000100
  • Qty Req: 1
Our price: $5.21 List price: $6.43
  • Ref No: 7
  • Part No: 17200083
  • Qty Req: 1
Our price: $3.76 List price: $4.64
  • Ref No: 10
  • Part No: 22100020
  • Qty Req: 4
Our price: $1.01 List price: $1.25
  • Ref No: 11
  • Part No: 14100056
  • Qty Req: 1
Our price: $1.39 List price: $1.71
  • Ref No: 12
  • Part No: 20000010
  • Qty Req: 2
Our price: $11.40 List price: $14.08
  • Ref No: 13
  • Part No: 05059200
  • Qty Req: 1
Our price: $147.12 List price: $181.63
  • Ref No: 14
  • Part No: 16100004
  • Qty Req: 1
Our price: $1.89 List price: $2.33
  • Ref No: 15
  • Part No: 18200013
  • Qty Req: 1
Our price: $1.33 List price: $1.64
  • Ref No: 17
  • Part No: 22700092
  • Qty Req: 1
Our price: $8.78 List price: $10.84
  • Ref No: 18
  • Part No: 14100107
  • Qty Req: 1
Our price: $21.50 List price: $26.54
  • Ref No: 20
  • Part No: 25260012
  • Qty Req: 1
Our price: $537.12 List price: $895.20
  • Ref No: 22
  • Part No: 34300592
  • Qty Req: 1
Our price: $666.34 List price: $1,110.57
