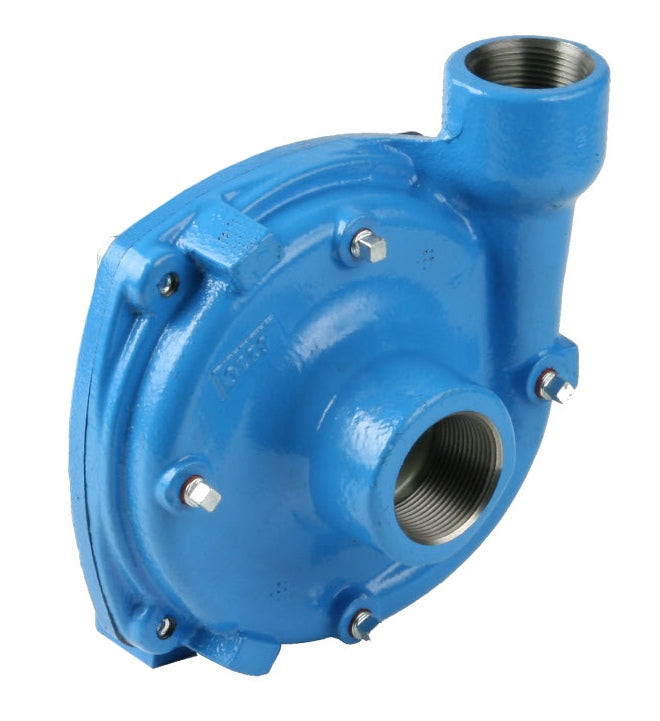

Hypro 9203C-BR (Silcon Carbide Seal) Centrifugal Pump

Hypro 9203C-BR (Silcon Carbide Seal) Centrifugal Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
9203CBR
Skip to product information
1 of 1

Hypro 9203C-BR (Silcon Carbide Seal) Centrifugal Pump

Hypro 9203C-BR (Silcon Carbide Seal) Centrifugal Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
9203CBR

Regular price $563.07
Sale price $563.07 Regular price List Price: $1,023.77

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,689 points with this purchase.

View full details

Collapsible content

Product Overview

140 gpm, 170 psi. Max RPM 6000, 5/8" Solid Shaft. 1-1/2" Inlet, 1-1/4" Outlet.

Hypro 9203C-BR (Reverse Rotation for Gas Engine Drive) Centrifugal Pump with Silicon Carbide Seal.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid application.

The series includes models 9203C, 9203S, 9203C-R, and 9203S-R.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (Reverse) (Cast Iron Series)
    • Ref No: 2A
    • Part No: 01529000C
    • Qty Req: 1
    Our price: $245.58 List price: $303.18
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller (Reverse) Cast Iron Series
    • Ref No: 4A
    • Part No: 04049100P
    • Qty Req: 1
    Our price: $87.46 List price: $107.98
  • Key (Cast Iron Series)
    • Ref No: 5
    • Part No: 16100015
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 8
    • Part No: 21200008
    • Qty Req: 1
    Our price: $35.62 List price: $43.97
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 8
    • Part No: 34300589
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • Mounting Flange (Cast Iron Series)
    • Ref No: 9
    • Part No: 07509200C3
    • Qty Req: 1
    Our price: $195.81 List price: $241.74
  • Hex Head Cap Screw
    • Ref No: 10
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Slinger Seal
    • Ref No: 11
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Ball Bearing for Hypro Pumps
    • Ref No: 12
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Pump Shaft
    • Ref No: 13
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 14
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 15
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Head Hex Cap Screw
    • Ref No: 16
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
  • Washer
    • Ref No: 17
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.68 List price: $11.95
  • Spacer
    • Ref No: 18
    • Part No: 14100107
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • Magnetic Clutch Assy.
    • Ref No: 20
    • Part No: 25260012
    • Qty Req: 1
    Our price: $542.83 List price: $986.96
  • Set Screw
    • Ref No: 21
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.37 List price: $2.92
  • Clutch Kit
    • Ref No: 22
    • Part No: 34300592
    • Qty Req: 1
    Our price: $991.77 List price: $1,224.41
  • Retaining Ring
    • Ref No: 25
    • Part No: 18100036
    • Qty Req: 1
    Our price: $6.25 List price: $7.72
