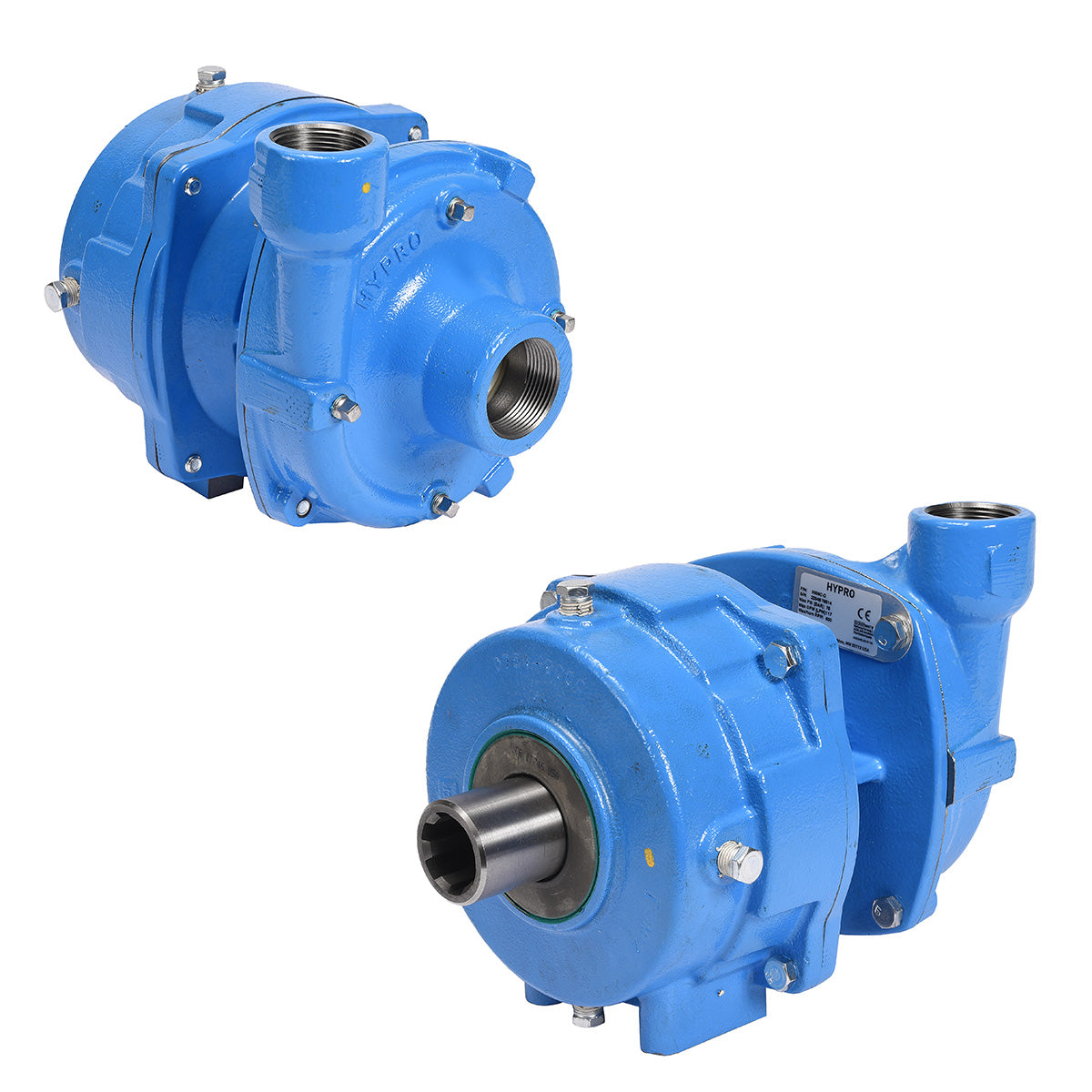

Hypro 9006C-O Centrifugal Pump

Hypro 9006C-O Centrifugal Pump

Brand:
Hypro
Weight:
44.65 lb
Item #
9006CO
Skip to product information
1 of 1

Hypro 9006C-O Centrifugal Pump

Hypro 9006C-O Centrifugal Pump

Brand:
Hypro
Weight:
44.65 lb
Item #
9006CO

Regular price $1,057.48
Sale price $1,057.48 Regular price List Price: $1,922.69

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,172 points with this purchase.

View full details

Collapsible content

Product Overview

The Hypro 9006C-O Centrifugal Pump features a one-and-a-half-inch inlet, a one-and-a-quarter-inch outlet and female 1-3/8" six spline 540 rpm PTO shaft. The nylon impeller and cast iron gear-driven housing enable the unit to withstand a maximum fluid temperature of 140 degrees Fahrenheit and a maximum pressure of 78 PSI. Other design highlights include clips that attach the pump to the PTO shield of most tractors.

Manufacturer description

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The line includes models with rugged housings of cast iron that stand up to strong chemical herbicides. The series includes models 9006C-O, 9008C-O, 9016C-O, 9018C-O, and 9028C-O.

Features

  • Max flow: 117 gpm
  • Max pressure: 78 psi
  • Max speed: 600 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Shaft: 1-3/8" 540 rpm female PTO
  • Pump shaft rotation: CCW
  • Max fluid temperature: 140°F
  • Weight: 44 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (w / SS wear ring)
    • Ref No: 2
    • Part No: 01509000C
    • Qty Req: 1
    Our price: $248.30 List price: $306.54
  • Impeller Nut
    • Ref No: 3
    • Part No: 22530001
    • Qty Req: 1
    Our price: $7.42 List price: $9.16
  • Impeller (Nylon)
    • Ref No: 4
    • Part No: 04009000P
    • Qty Req: 1
    Our price: $64.00 List price: $79.01
  • Gasket
    • Ref No: 5
    • Part No: 17000101
    • Qty Req: 1
    Our price: $6.50 List price: $8.03
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 6
    • Part No: 21200010
    • Qty Req: 1
    Our price: $36.97 List price: $45.64
  • 3430-0334 Seal & O-Ring Repair Kit Hypro 9000C-O Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300334
    • Qty Req: 1
    Our price: $59.58 List price: $73.56
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $3.94 List price: $4.87
  • Mounting Flange Adapter
    • Ref No: 8
    • Part No: 07529000C
    • Qty Req: 1
    Our price: $292.60 List price: $361.23
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • O-Ring
    • Ref No: 10
    • Part No: 17200139
    • Qty Req: 1
    Our price: $3.83 List price: $4.73
  • Bearing Lip Seal
    • Ref No: 11
    • Part No: 21300018
    • Qty Req: 1
    Our price: $29.14 List price: $35.98
  • Gasket
    • Ref No: 12
    • Part No: 17000098
    • Qty Req: 1
    Our price: $1.16 List price: $1.43
  • Retainer Ring (Shaft)
    • Ref No: 13
    • Part No: 18100013
    • Qty Req: 1
    Our price: $1.12 List price: $1.38
  • Main Bearing - Hypro Pumps
    • Ref No: 14
    • Part No: 20080001
    • Qty Req: 1
    Our price: $17.73 List price: $21.89
  • Retaining Ring (housing)
    • Ref No: 15
    • Part No: 18200025
    • Qty Req: 1
    Our price: $4.47 List price: $5.52
  • Hex Head Capscrew
    • Ref No: 19
    • Part No: 22100046
    • Qty Req: 3
    Our price: $4.58 List price: $5.65
  • Washer
    • Ref No: 20
    • Part No: 22700003
    • Qty Req: 3
    Our price: $1.16 List price: $1.43
  • Thrust Washer
    • Ref No: 21
    • Part No: 22650003
    • Qty Req: 6
    Our price: $1.60 List price: $1.97
  • Bearing ( included with driver gear)
    • Ref No: 22
    • Part No: 20070052
    • Qty Req: 3
    Our price: $14.87 List price: $18.36
  • Bearing Inner Race
    • Ref No: 23
    • Part No: 20070022
    • Qty Req: 3
    Our price: $7.22 List price: $8.91
  • Key
    • Ref No: 27
    • Part No: 16100005
    • Qty Req: 1
    Our price: $1.91 List price: $2.36
  • Locking Collar Kit (Hollow Shaft)
    • Ref No: 29
    • Part No: 34350058
    • Qty Req: 1
    Our price: $57.12 List price: $70.52
  • Driver Hub
    • Ref No: 30
    • Part No: 05629000D
    • Qty Req: 1
    Our price: $231.72 List price: $286.07
  • Driver Gear w/ Bearing (540 rpm)
    • Ref No: 31
    • Part No: 39000039
    • Qty Req: 3
    Our price: $44.42 List price: $54.84
  • Impeller Shaft/Pinion Gear (540 rpm)
    • Ref No: 32
    • Part No: 39000010
    • Qty Req: 1
    Our price: $231.72 List price: $286.07
  • Woodruff Key**(1) 540 rpm (2) 1000rpm
    • Ref No: 33
    • Part No: 16100012
    • Qty Req: 1
    Our price: $1.42 List price: $1.75
  • Retaining Ring
    • Ref No: 37
    • Part No: 18000014
    • Qty Req: 1
    Our price: $25.18 List price: $31.09
  • Main Bearing
    • Ref No: 38
    • Part No: 20050002
    • Qty Req: 1
    Our price: $150.06 List price: $185.26
  • Retainer Ring
    • Ref No: 39
    • Part No: 18100001
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Ring Gear
    • Ref No: 40
    • Part No: 39000009
    • Qty Req: 1
    Our price: $92.15 List price: $113.76
  • Cushion Bumper
    • Ref No: 41
    • Part No: 14500004
    • Qty Req: 8
    Our price: $1.21 List price: $1.49
  • Gear Casing
    • Ref No: 42
    • Part No: 07549000C
    • Qty Req: 1
    Our price: $201.93 List price: $249.30
  • Hex Head Capscrew
    • Ref No: 43
    • Part No: 22100026
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Breather Vent
    • Ref No: 44
    • Part No: 24040193
    • Qty Req: 1
    Our price: $25.18 List price: $31.09
  • Oil Seal
    • Ref No: 45
    • Part No: 21020025
    • Qty Req: 1
    Our price: $17.93 List price: $22.13
  • O-Ring
    • Ref No: 46
    • Part No: 17200022
    • Qty Req: 1
    Our price: $1.12 List price: $1.38
  • Oil Plug
    • Ref No: 49
    • Part No: 24060019
    • Qty Req: 4
    Our price: $1.94 List price: $2.39
  • Mounting Clip
    • Ref No: 50
    • Part No: 15200034
    • Qty Req: 1
    Our price: $91.59 List price: $113.07
