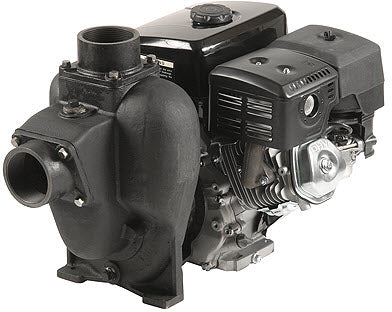

Hypro 1533C-13ESP Transfer Pump

Hypro 1533C-13ESP Transfer Pump

Brand:
Hypro
Weight:
151.0 lb
Item #
1533C13ESP
Skip to product information
1 of 1

Hypro 1533C-13ESP Transfer Pump

Hypro 1533C-13ESP Transfer Pump

Brand:
Hypro
Weight:
151.0 lb
Item #
1533C13ESP

Regular price $1,595.05
Sale price $1,595.05 Regular price List Price: $2,900.09

Earn 4,785 points with this purchase.

View full details

Collapsible content

Product Overview

Hypro 1533C-13ESP Cast Iron Gas Engine Driven Transfer Pump.

330 gpm, 60 psi.

3" x 3" Ports, PowerPro 13 HP w/ Electric Start Engine.

Hypro’s line of high-powered, self-priming cast iron transfer pumps are available in multiple configurations including PowerPro™ gas engine drive, hydraulic motor drive, pump kit for gas engines, pedestal pump, and pump kit for electric motor.

With flow rates up to 330 gpm and pressures up to 60 psi, these transfer pumps deliver solutions for your fluid and chemical transfer needs.

Actual Weight: 85 LBs.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Discharge Flange (3" NPT)
    • Ref No: 1
    • Part No: 24040361
    • Qty Req: 1
    Our price: $40.00 List price: $49.38
  • Inlet Flange (3" NPT)
    • Ref No: 2
    • Part No: 24040364
    • Qty Req: 1
    Our price: $41.10 List price: $50.74
  • Mounting Flange (Gas Engine)
    • Ref No: 3
    • Part No: 07509033C
    • Qty Req: 1
    Our price: $123.59 List price: $152.58
  • Impeller w/Shaft (1")
    • Ref No: 5
    • Part No: 04009033C
    • Qty Req: 1
    Our price: $417.09 List price: $514.93
  • Wear Plate
    • Ref No: 8
    • Part No: 32100095
    • Qty Req: 1
    Our price: $31.20 List price: $38.52
  • Discharge Flange Gasket (EPDM)
    • Ref No: 9
    • Part No: 17000219
    • Qty Req: 1
    Our price: $13.20 List price: $16.30
  • Flapper Valve Assembly (EPDM)
    • Ref No: 10
    • Part No: 17000220
    • Qty Req: 1
    Our price: $40.00 List price: $49.38
  • Gasket
    • Ref No: 11
    • Part No: 17100018
    • Qty Req: 1
    Our price: $3.12 List price: $3.85
  • Mechanical Seal (Viton)
    • Ref No: 13
    • Part No: 21200047
    • Qty Req: 1
    Our price: $118.07 List price: $145.76
  • Handle
    • Ref No: 14
    • Part No: 28010008a
    • Qty Req: 1
    Our price: $67.03 List price: $82.75
  • Washer (Plastic)
    • Ref No: 15
    • Part No: 17000221
    • Qty Req: 2
    Our price: $0.96 List price: $1.19
  • Shaft Sleeve Clamp Assy. (1")
    • Ref No: 16
    • Part No: 14200033
    • Qty Req: 1
    Our price: $83.30 List price: $102.84
  • Self Priming Chamber
    • Ref No: 18
    • Part No: 01509033C
    • Qty Req: 1
    Our price: $291.31 List price: $359.64
  • Acorn Nut
    • Ref No: 19
    • Part No: 22530011
    • Qty Req: 2
    Our price: $3.56 List price: $4.39
  • Screw
    • Ref No: 20
    • Part No: 22150005
    • Qty Req: 2
    Our price: $3.56 List price: $4.39
  • Stud
    • Ref No: 23
    • Part No: 22050022
    • Qty Req: 6
    Our price: $2.51 List price: $3.10
  • 13HP PowerPro Engine (Electric Start)
    • Ref No: N/S
    • Part No: 25410049
    • Qty Req: 1
    Our price: $761.42 List price: $1,269.04
