Hypro 1532C-6SP Transfer Pump

Hypro 1532C-6SP Transfer Pump

Brand:
Hypro
Weight:
151.0 lb
Item #
1532C6SP
Skip to product information
1 of 1

Hypro 1532C-6SP Transfer Pump

Hypro 1532C-6SP Transfer Pump

Brand:
Hypro
Weight:
151.0 lb
Item #
1532C6SP

Regular price $776.17
Sale price $776.17 Regular price List Price: $1,411.21

Earn 2,329 points with this purchase.

View full details

Collapsible content

Product Overview

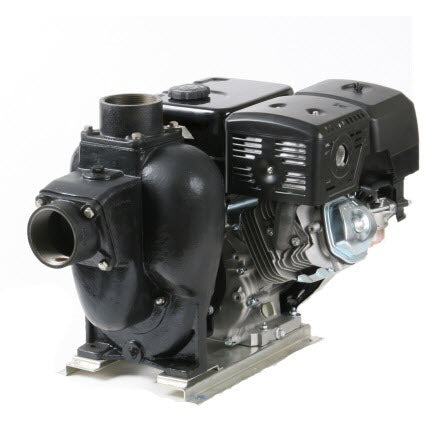

Hypro 1532C-6SP Cast Iron Gas Engine Driven Transfer Pump.

170 gpm, 42 psi.

2" x 2" Ports, PowerPro 6.5 HP Engine.

Hypro’s line of high-powered, self-priming cast iron transfer pumps are available in multiple configurations including PowerPro™ gas engine drive, hydraulic motor drive, pump kit for gas engines, pedestal pump, and pump kit for electric motor.

With flow rates up to 330 gpm and pressures up to 60 psi, these transfer pumps deliver solutions for your fluid and chemical transfer needs.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Inlet Flange (2" NPT)
    • Ref No: 3
    • Part No: 24040363
    • Qty Req: 1
    Our price: $22.22 List price: $27.43
  • Flapper Valve Assembly
    • Ref No: 4
    • Part No: 17000218
    • Qty Req: 1
    Our price: $32.09 List price: $39.62
  • Discharge Flange (2" NPT)
    • Ref No: 5
    • Part No: 24040362
    • Qty Req: 1
    Our price: $20.95 List price: $25.86
  • Discharge Flange Gasket (EPDM)
    • Ref No: 6
    • Part No: 17000217
    • Qty Req: 1
    Our price: $10.32 List price: $12.74
  • Acorn Nut
    • Ref No: 8
    • Part No: 22530012
    • Qty Req: 2
    Our price: $3.90 List price: $4.82
  • Self-Priming Chamber
    • Ref No: 10
    • Part No: 01509032C
    • Qty Req: 1
    Our price: $150.06 List price: $185.26
  • Wear Plate
    • Ref No: 11
    • Part No: 32100094
    • Qty Req: 1
    Our price: $19.79 List price: $24.43
  • Screw
    • Ref No: 12
    • Part No: 22150004
    • Qty Req: 2
    Our price: $2.11 List price: $2.60
  • Impeller Nut
    • Ref No: 13
    • Part No: 22500095
    • Qty Req: 1
    Our price: $2.07 List price: $2.55
  • Impeller
    • Ref No: 14
    • Part No: 04009032C
    • Qty Req: 1
    Our price: $22.51 List price: $27.79
  • Shaft Sleeve (3/4")
    • Ref No: 15
    • Part No: 05019032
    • Qty Req: 1
    Our price: $55.45 List price: $68.46
  • Seal
    • Ref No: 16
    • Part No: 21200046
    • Qty Req: 1
    Our price: $89.65 List price: $110.68
  • Gasket
    • Ref No: 17
    • Part No: 17100017
    • Qty Req: 1
    Our price: $1.67 List price: $2.06
  • Mounting Flange (Gas Engine)
    • Ref No: 18
    • Part No: 07509032C
    • Qty Req: 1
    Our price: $84.97 List price: $104.90
  • Hex Head Bolt
    • Ref No: 19
    • Part No: 22100143
    • Qty Req: 4
    Our price: $3.01 List price: $3.72
  • Stud
    • Ref No: 20
    • Part No: 22050021
    • Qty Req: 6
    Our price: $5.25 List price: $6.48
  • Handle
    • Ref No: 23
    • Part No: 28010007
    • Qty Req: 1
    Our price: $13.74 List price: $16.96
  • 6.5HP PowerPro Engine (Manual Start) **Overstock**
    • Ref No: 25
    • Part No: 25410045
    • Qty Req: 1
    Our price: $198.00 List price: $538.42
  • Locknut
    • Ref No: 26
    • Part No: 18572SHW
    • Qty Req: 4
    Our price: $0.79 List price: $0.97
  • Screw
    • Ref No: 27
    • Part No: 22100008
    • Qty Req: 4
    Our price: $0.96 List price: $1.19
  • Washer
    • Ref No: 28
    • Part No: 22700004
    • Qty Req: 4
    Our price: $1.16 List price: $1.43
