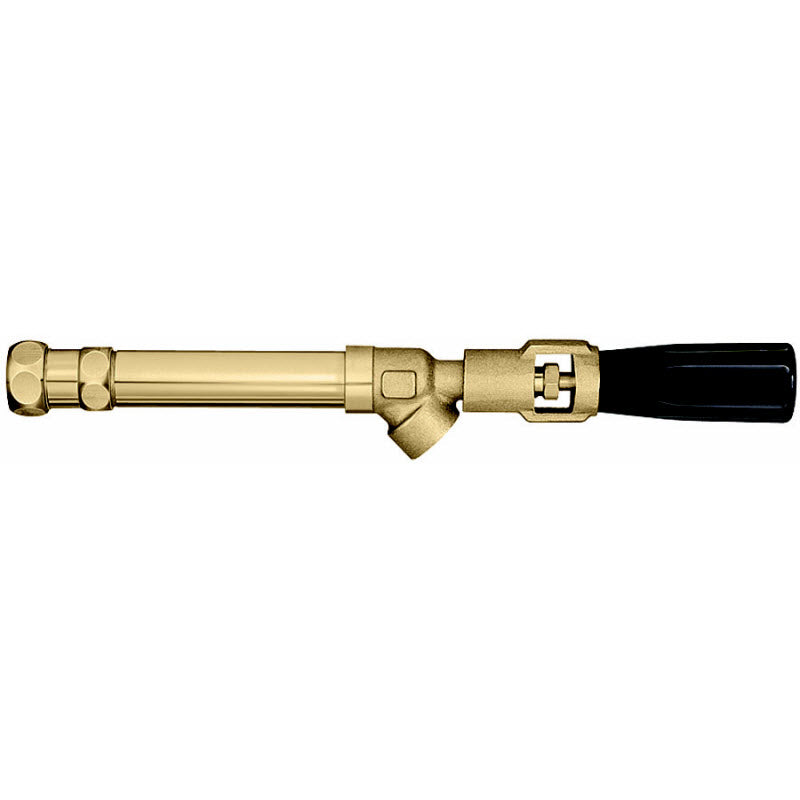

Gunjet SSCAA2A-60 Spray Gun 15"

Gunjet SSCAA2A-60 Spray Gun 15"

Brand:
TeeJet
Weight:
2.5 lb
Item #
AA2A60

Regular price $134.65
Sale price $134.65 Regular price List Price: $224.42

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 404 points with this purchase.

View full details

Collapsible content

Product Overview

The Gunjet SSCAA2A-60 Spray Gun 15" is ideal for livestock spraying, tree spraying and spot spraying as well as for power washing jobs, and it delivers a variety of steady pressure levels from 30 PSI to 800 PSI. This lightweight model is made of brass and built to last, and it features a 3/4-inch garden hose thread female inlet connection.

Manufacturer description

Same design as Gunjet AA2 but shorter barrel. For spot spraying, tree spraying, livestock spraying and power washing at pressures from 30 to 800 psi. To operate spray gun, handle is rotated 360° from shutoff to maximum flow position. As handle is turned, spray changes from initial cone spray through intermediate cone spray to straight stream. Spray tips are interchangeable orifice discs made of corrosion-resistant stainless steel.

Features

  • Construction: Brass
  • Max pressure: 800
  • Overall gun length: 15"
  • Inlet: Female GHT
  • Disc size: AY-SS60 is standard, other orifice sizes available
  • Weight: 3 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: CP5804
    • Qty Req: 1
    Our price: $8.99 List price: $14.98
  • Disc Adapter
    • Ref No: 2
    • Part No: CP6106
    • Qty Req: 1
    Our price: $2.35 List price: $3.91
  • Gasket, Buna-N
    • Ref No: 3
    • Part No: CP5805BU
    • Qty Req: 1
    Our price: $3.38 List price: $5.63
  • Orifice Insert, Stainless Steel
    • Ref No: 4
    • Part No: AYSS60
    • Qty Req: 1
    Our price: $7.93 List price: $13.21
  • Pressure Plate, Nylon (Black)
    • Ref No: 5
    • Part No: CP5800NYB
    • Qty Req: 1
    Our price: $5.89 List price: $9.82
  • Coil Spring, Stainless Steel
    • Ref No: 6
    • Part No: CP5735SS
    • Qty Req: 1
    Our price: $4.60 List price: $7.67
  • Adjusting Stem End
    • Ref No: 7
    • Part No: CP5797
    • Qty Req: 1
    Our price: $7.04 List price: $11.74
  • Spray Housing
    • Ref No: 8
    • Part No: CP5801
    • Qty Req: 1
    Our price: $8.62 List price: $14.36
  • Seat Sub-Assembly
    • Ref No: 9
    • Part No: CP5833
    • Qty Req: 1
    Our price: $3.16 List price: $5.27
  • Gasket, Nylon
    • Ref No: 10
    • Part No: CP45198NYB
    • Qty Req: 2
    Our price: $1.47 List price: $2.45
  • Guide Washer
    • Ref No: 11
    • Part No: CP5802
    • Qty Req: 1
    Our price: $4.72 List price: $7.87
  • Snap Ring, Stainless Steel
    • Ref No: 12
    • Part No: CP5814SS
    • Qty Req: 1
    Our price: $3.26 List price: $5.44
  • Adjusting Stem (AA2A Version)
    • Ref No: 13
    • Part No: CP5819
    • Qty Req: 1
    Our price: $12.34 List price: $20.56
  • Brass Tubing (AA2A Versions)
    • Ref No: 14
    • Part No: CP5818
    • Qty Req: 1
    Our price: $13.26 List price: $22.10
  • Retaining Ring, Type 302 S.S.
    • Ref No: 15
    • Part No: CP17833302SS
    • Qty Req: 1
    Our price: $1.74 List price: $2.90
  • Inlet Body
    • Ref No: 16
    • Part No: CP5792GH
    • Qty Req: 1
    Our price: $90.60 List price: $151.00
  • Packing
    • Ref No: 17
    • Part No: CP5809LEA
    • Qty Req: 4
    Our price: $1.47 List price: $2.45
  • Screw
    • Ref No: 18
    • Part No: CP6157
    • Qty Req: 1
    Our price: $2.98 List price: $4.96
  • Adjusting Sleeve
    • Ref No: 19
    • Part No: CP5794
    • Qty Req: 1
    Our price: $38.56 List price: $64.26
  • Adjusting Sleeve Collar
    • Ref No: 20
    • Part No: CP5812INP
    • Qty Req: 1
    Our price: $5.30 List price: $8.83
  • Hand Grip Washer
    • Ref No: 21
    • Part No: CP5815IZP
    • Qty Req: 1
    Our price: $3.38 List price: $5.63
  • Hand Grip, Nylon (Black)
    • Ref No: 22
    • Part No: CP5994NY
    • Qty Req: 1
    Our price: $8.68 List price: $14.47
  • Hand Grip Nut
    • Ref No: 23
    • Part No: CP5813
    • Qty Req: 1
    Our price: $2.41 List price: $4.02
  • Garden Hose Gasket, Polyethylene
    • Ref No: 24
    • Part No: CP5808POL
    • Qty Req: 1
    Our price: $3.83 List price: $6.38
